13

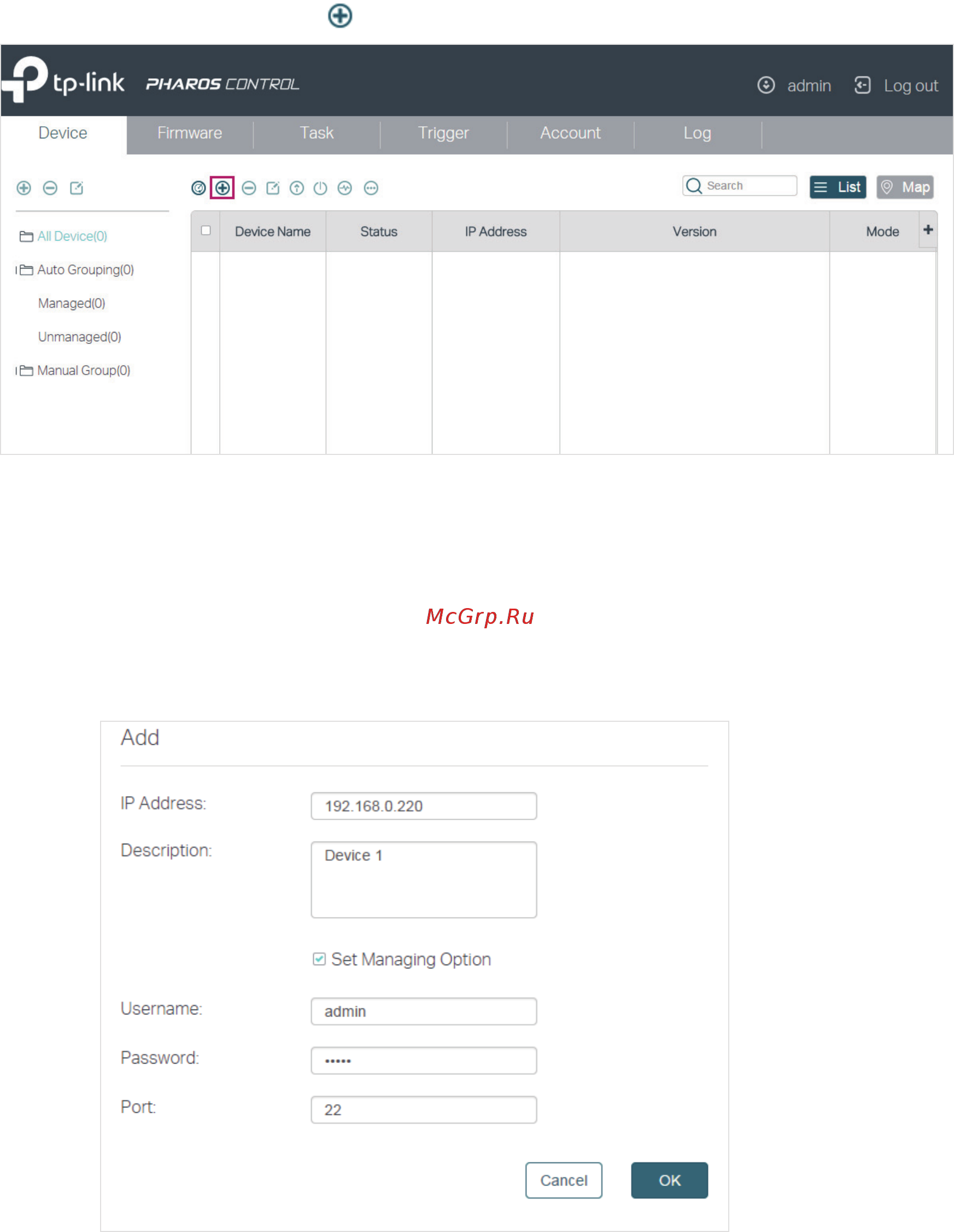

1.4.2 Add the Devices Manually
Follow the steps below to add the devices manually.
1. Go to the Device page, and click
.
2. In the pop-up window, specify the IP address of the device and give a description for
identification. Check the box of Set Managing Option, and enter the username, password
and port number of the device. The username and passport are both admin by default; if you
have changed them, enter the new ones. The port here means the SSH server port which is
configured on the device, and you can find this value on the Management page of the device.
Then click OK.
