19
Auto Grouping
Follow the steps below to create a new group and set a rule to automatically add the devices to this
group:

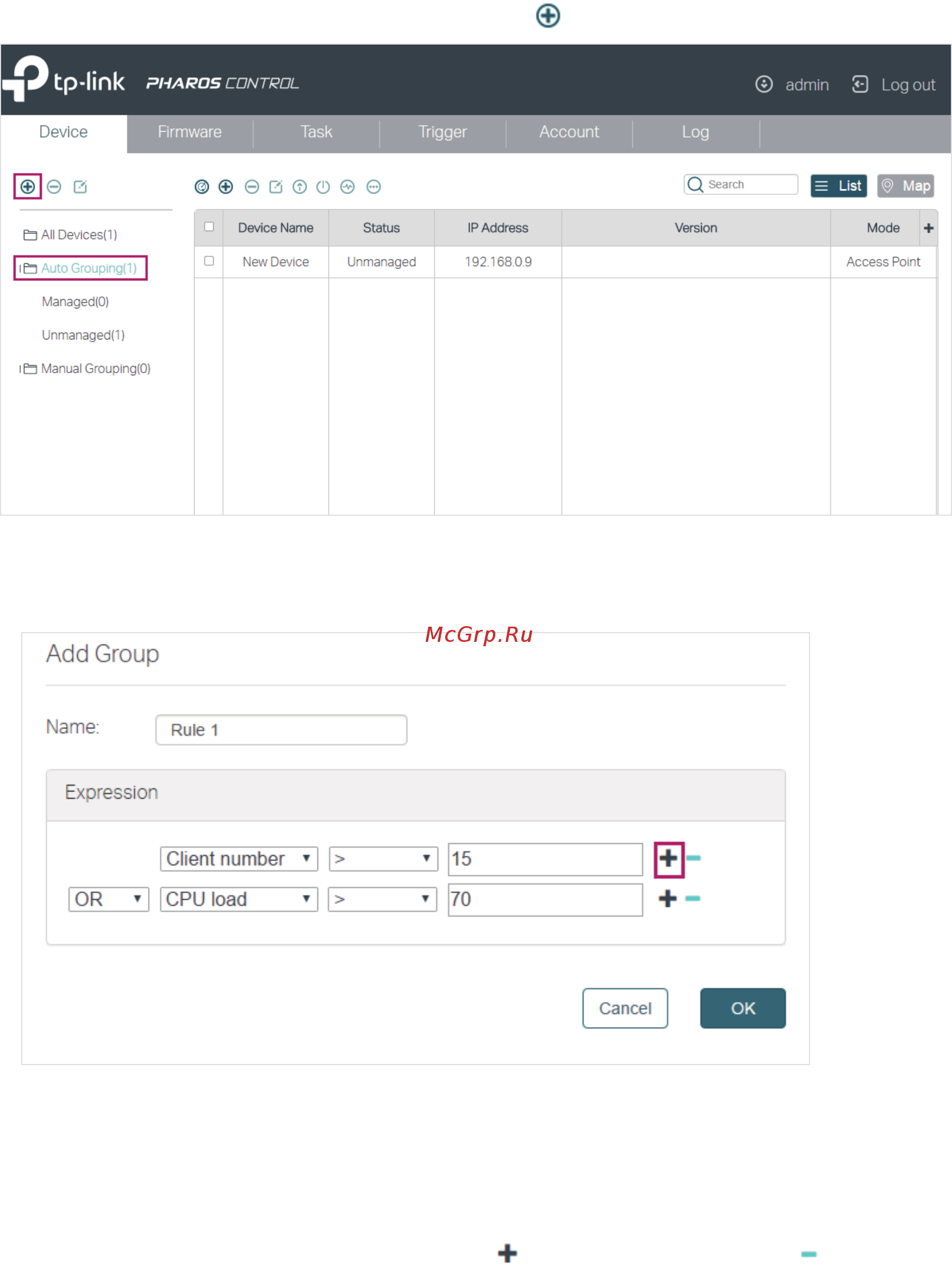

1. Go to the Device page. Click Auto Grouping and click
.
2. In the pop-up window, specify a name for the new group and set one or more rules for this group.
Click OK, and the devices matching the rules above will be added to the group automatically.
For example, here we add two rules: “the client number is larger than 15” and the “CPU load is
larger than 70%”. Then we choose “OR“ as the logical relation between the two rules, which
means that a device will be automatically added to this group when meeting either one of the
rules. Also you can select “AND“ which means that a device will be automatically added to this
group when it meets both the rules. You can click
to add more rules and click to delete the
rule.
