Tp-Link CPE610 V1 [15/55] If the input device information is correct the status will change from unmanaged to managed
![Tp-Link CPE610 V1 [15/55] If the input device information is correct the status will change from unmanaged to managed](/views2/1467703/page15/bgf.png)
12
Note:
If you want to do this operation for multiple devices at the same time, make sure that the username,
password and port number of these devices are the same.

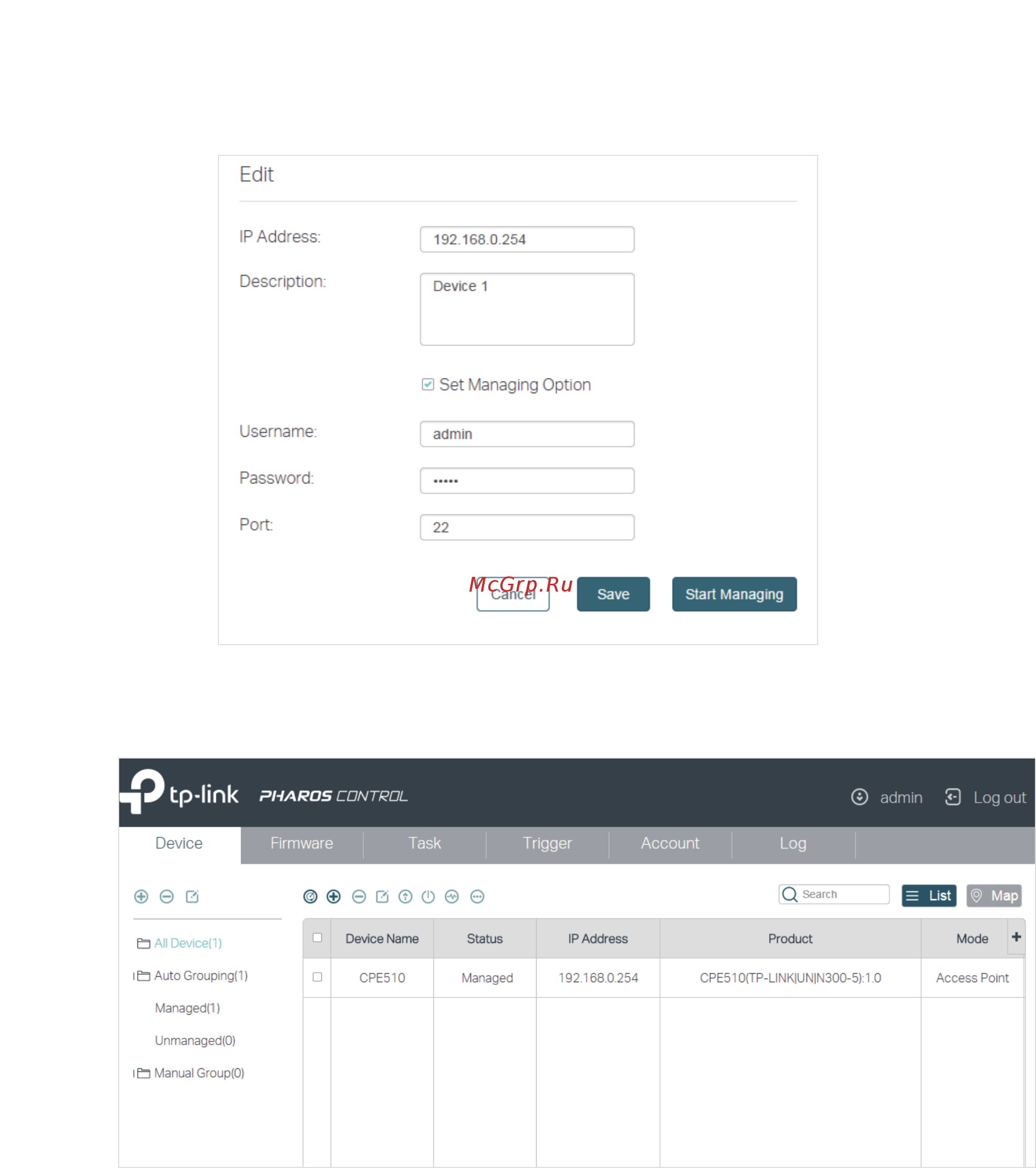

6. If the input device information is correct, the status will change from Unmanaged to Managed,
and you can manage the device via Pharos Control.
