Tp-Link TL-WPA7510 KIT V1 [10/39] To extend the existing wireless network
![Tp-Link TL-WPA7510 KIT V1 [10/39] To extend the existing wireless network](/views2/1469525/page10/bga.png)
8
Chapter 2
Initial Use
Extender
TL-WPA7510
within 2 minutes
Adatper
TL-PA7010
Blinking
Pair
1000Mbps
Blinking
1000Mbps
PairLED
Wi-Fi
Reset
On

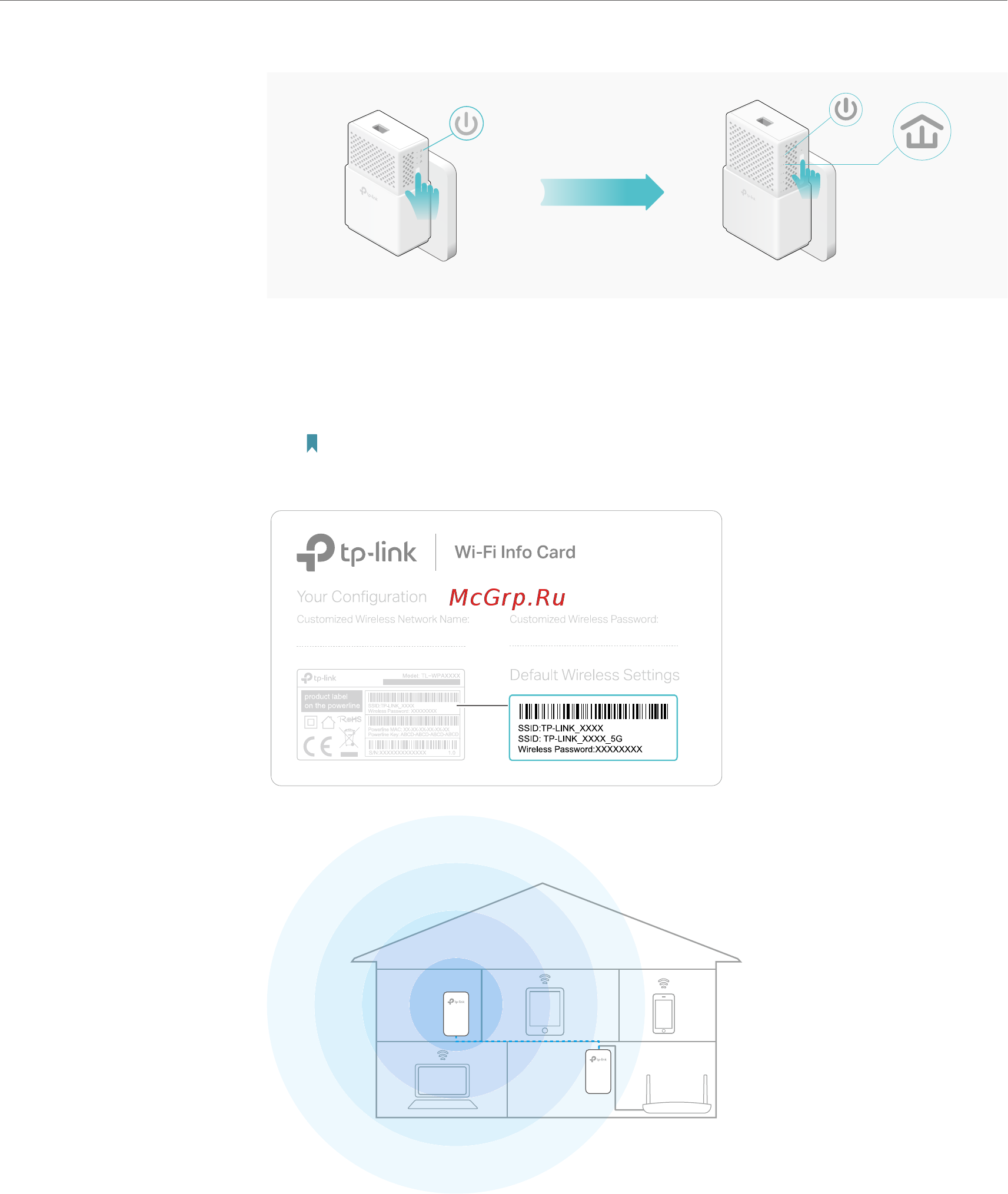

5. Relocate the new extender to the Wi-Fi “dead” zone. Use the
SSID (network name) and password on the provided Wi-Fi
Info Card to connect to the internet.
Note: A red Powerline LED indicates poor signal strength. Move the extender to
another location.
Now enjoy the internet with the SSID and password printed on
the Wi-Fi Info Card!
2. 2. To Extend the Existing Wireless Network
Extend the existing wireless network by adding a new powerline
extender into the existing powerline network.
For example, I already set up a wireless network using powerline
devices, but the wireless network is still not big enough to reach
Done!
I want to:
