Tp-Link TL-WPA7510 KIT V1 [22/39] Schedule your wireless function
![Tp-Link TL-WPA7510 KIT V1 [22/39] Schedule your wireless function](/views2/1469525/page22/bg16.png)
20
Chapter 3
Conguring via Web Management Interface

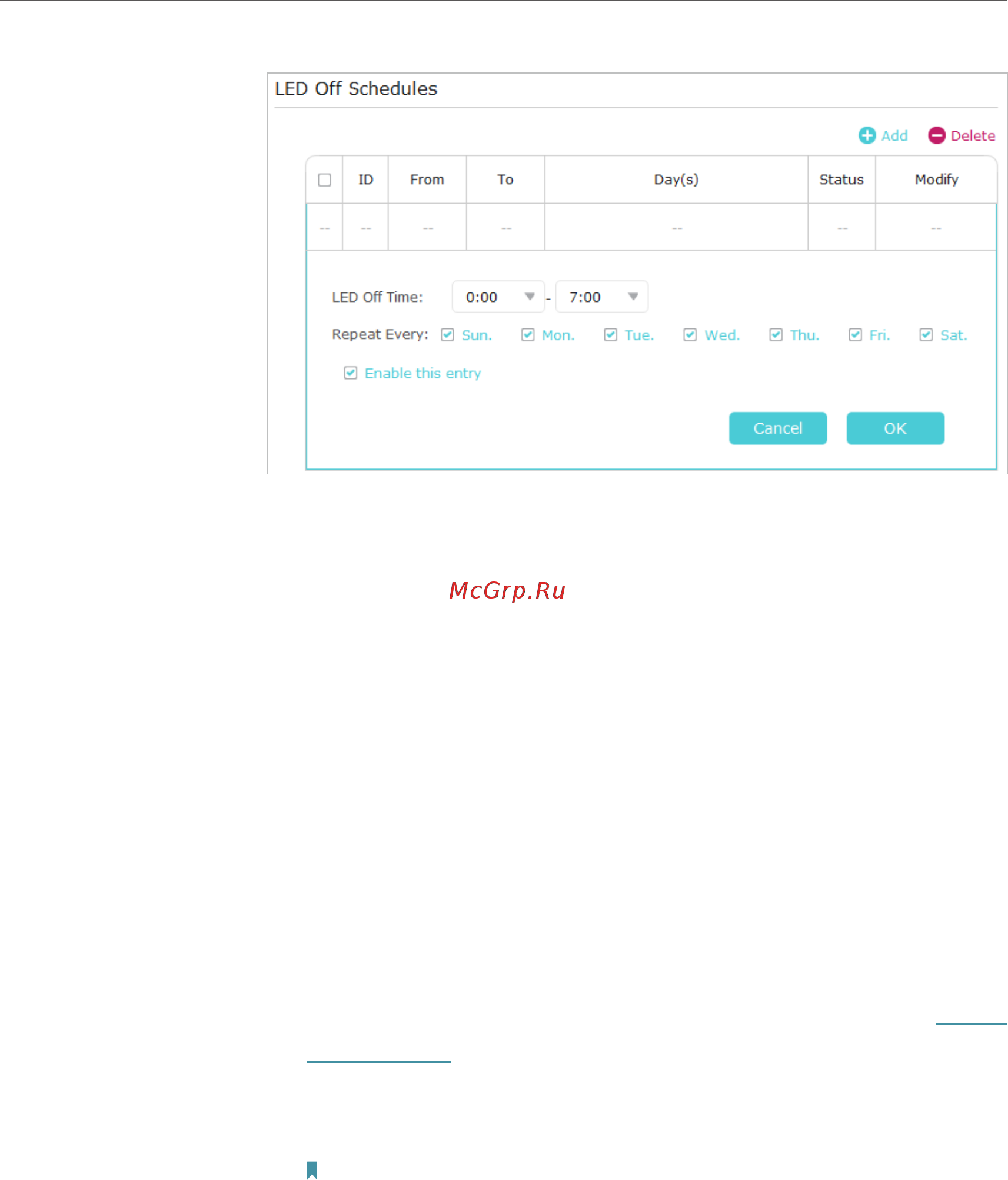

7. Click OK to save the settings.
Now your LEDs will be turned off automatically at 00:00 and
turned on at 7:00am the next morning.
3. 7. Schedule Your Wireless Function
Automatically turn off my wireless network at times when I do
not need the wireless connection.
For example, I want to turn them off from 00:00am to 7:00am. Yet
if I have my wireless devices connected to the extender at that
time, I want the wireless on till all devices are disconnected from
the internet.
1. Connect to the powerline extender wirelessly. Visit http://
tplinkplc.net and log in with the username and password you
set.
2. Go to Wireless > Wi-Fi Schedules.
Note: Please make sure that the system time is correct before using this
function.
Done!
I want to:
How can I
do that?
