Chapter 3

Conguring via Web Management Interface

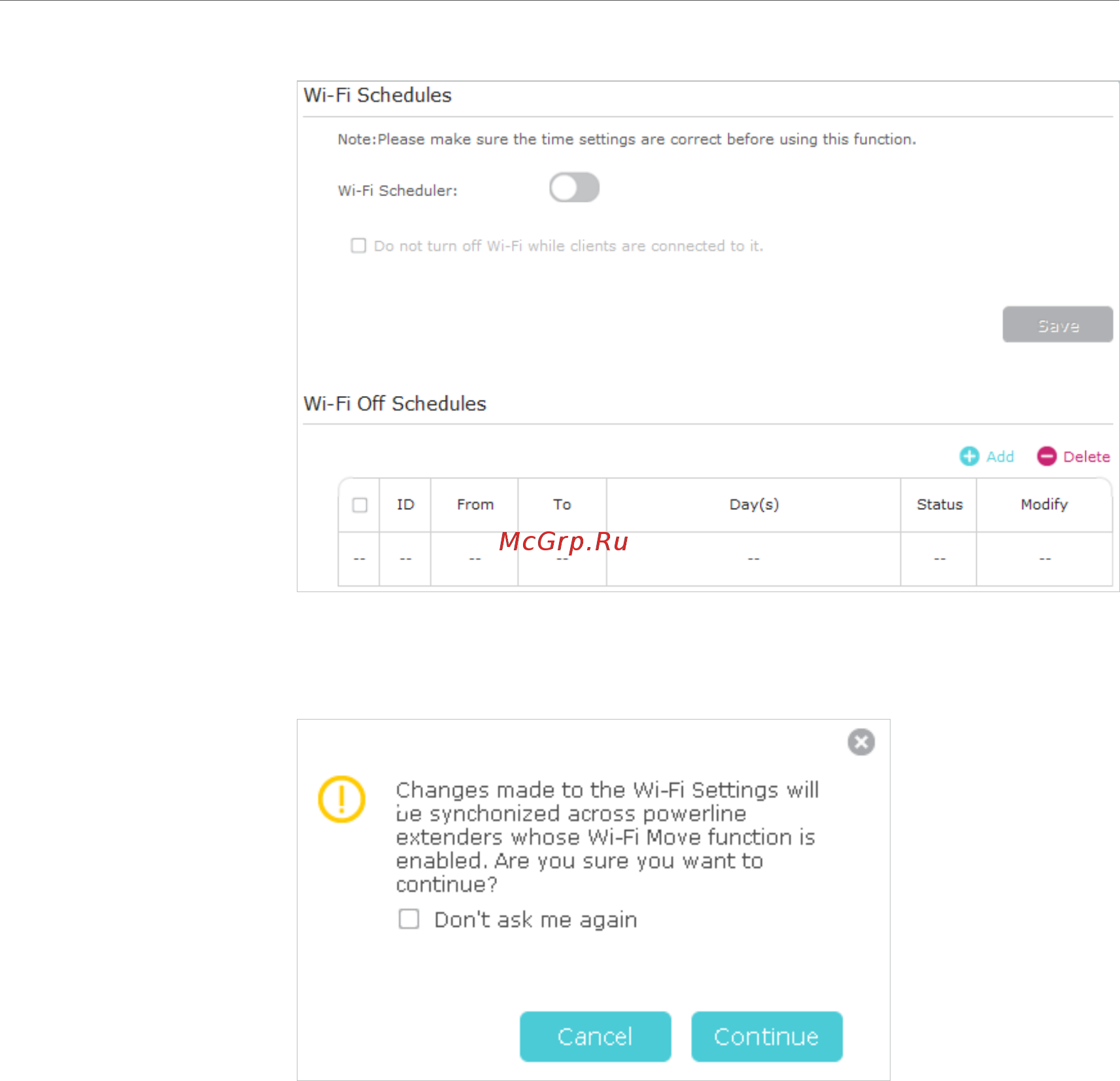

3. Toggle On to enable the Wi-Fi Scheduler. If you are prompted

like the following picture, click Continue.

4. Check the box of Do not turn off Wi-Fi while clients are

connected to it and click Save.

5. Click Add to add an entry.

6. Choose 00:00 and 7:00 from the drop-down list. Check all

boxes from Sunday to Saturday.

7. Click Enable this entry to make it effective.
