Chapter 3

Conguring via Web Management Interface

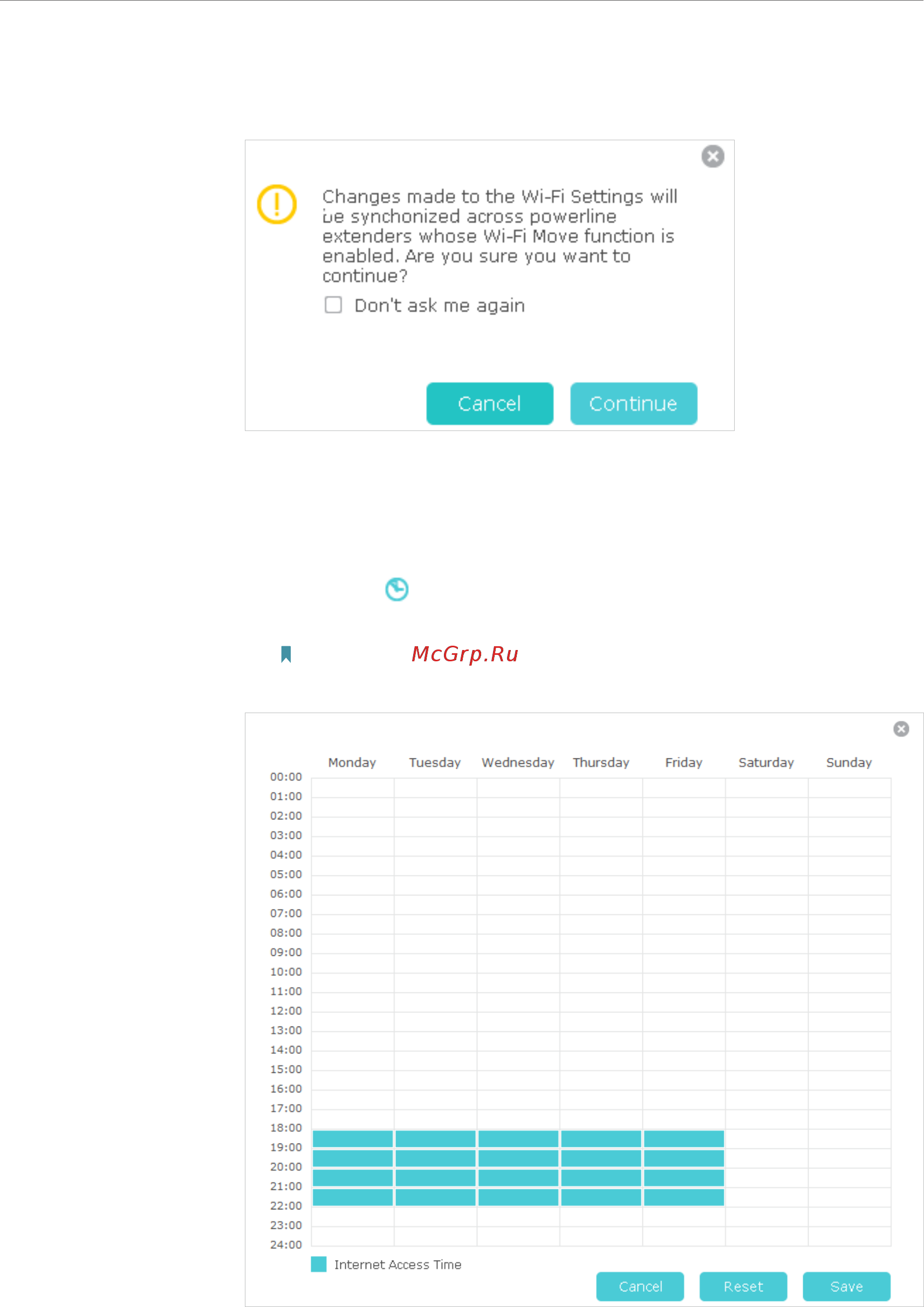

3. Toggle On to enable Parental Controls. If you are prompted

like the following picture, click Continue.

4. Click Add.

5. Click View Existing Devices, and select the device to be

controlled. Or, enter the MAC Address manually.

6. Click the

icon to set the Internet Access Time. Drag the

cursor over the appropriate cell(s) and click Save.

Note: Please make sure that the system time is correct before using this

function.

7. Enter a Description for the entry.

8. Click Enable this entry to make it effective.
