RIGOL

User’s Guide for RP7000 Series Active Probe 11

2. Solder-in Probe Head

Solder-in probe head includes two types: solder-in differential probe head

and solder-in single-ended probe head as shown in Figure 7 and Figure

8. Wherein, solder-in differential probe head is suitable for measurement of

high-density IC pin signals.

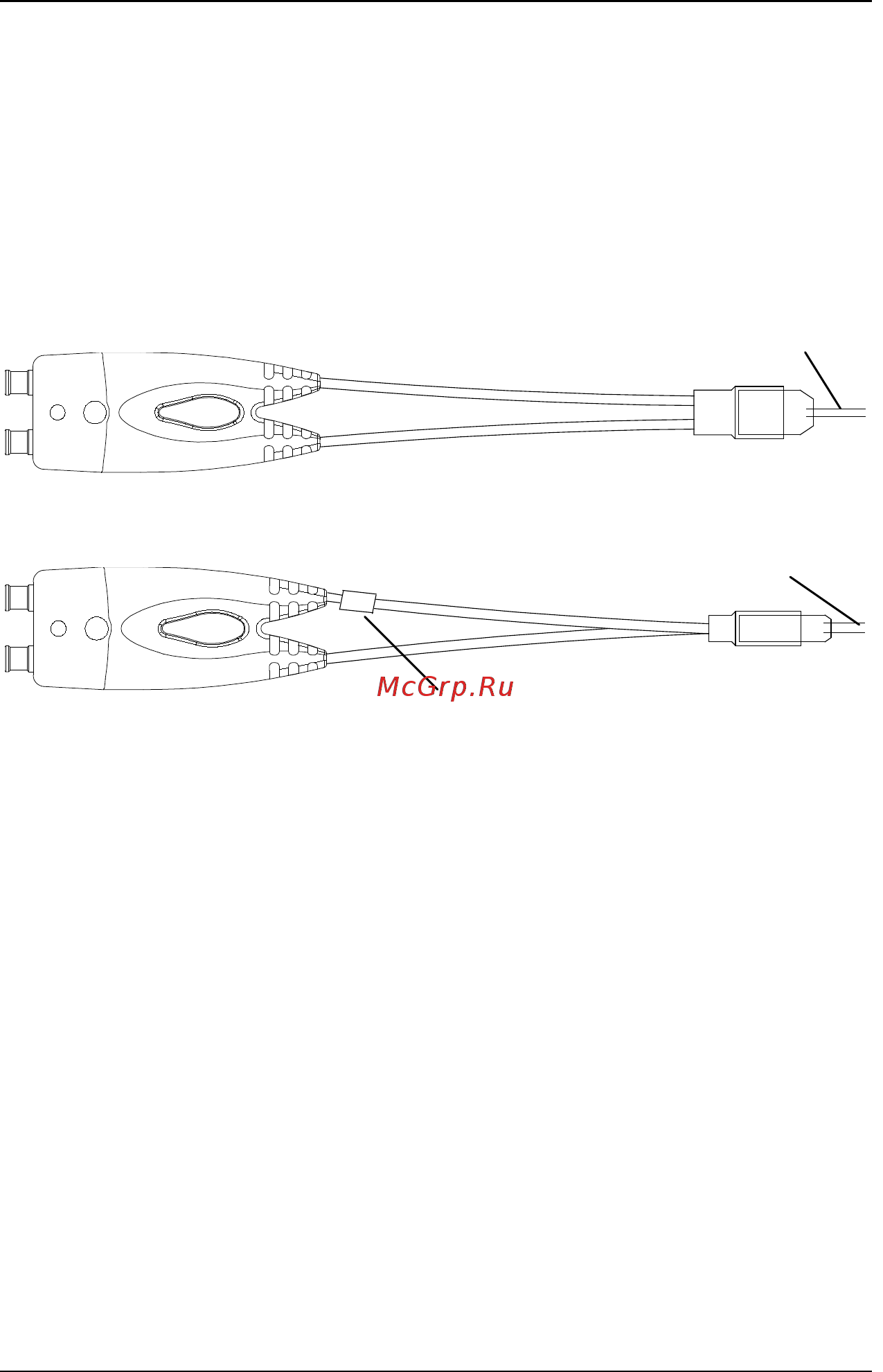

Figure 7 Solder-in Differential Probe Head

Figure 8 Solder-in Single-ended Probe Head

When using the solder-in probe head for measurement, please use auxiliary

device to fix the probe head. Do not use your hand to fix the probe head, or

else, the lead resistor soldered onto the probe head might break or fall off,

what’s more, the hand-held position might also affect the probe performance.

Wherein, the nickel wire of the solder-in probe head is a standard accessory. If

the nickel wire under use became damaged or break off, please replace it with

an appropriate lead resistor (refer to To Replace Probe Accessories).

Mark Sleeve of Negative Pole

Nickel Wire
