RIGOL
User’s Guide for RP7000 Series Active Probe 15
To Use the Probe Head
Known from Probe Head, RP7000 can be connected with 4 kinds of probe
heads. You can easily change the probe head by using the method introduced
in To Replace Probe Accessories. This chapter introduces how to use the
four kinds of probe heads respectively.
1. Hand-held Differential Probe Head
The hand-held differential probe head provides an effective bandwidth of more
than 1.5GHz. Besides, the spacing between the two probe tips can be precisely
adjusted by turning the roller and the replaceable probe tips prolong the service
life of the probe.
The hand-held differential probe head can be used to measure differential and
single-ended signals. During the measurement, you can turn the roller on the
probe head to adjust the spacing between the probe tips so as to fit
measurements with different spacing requirements.

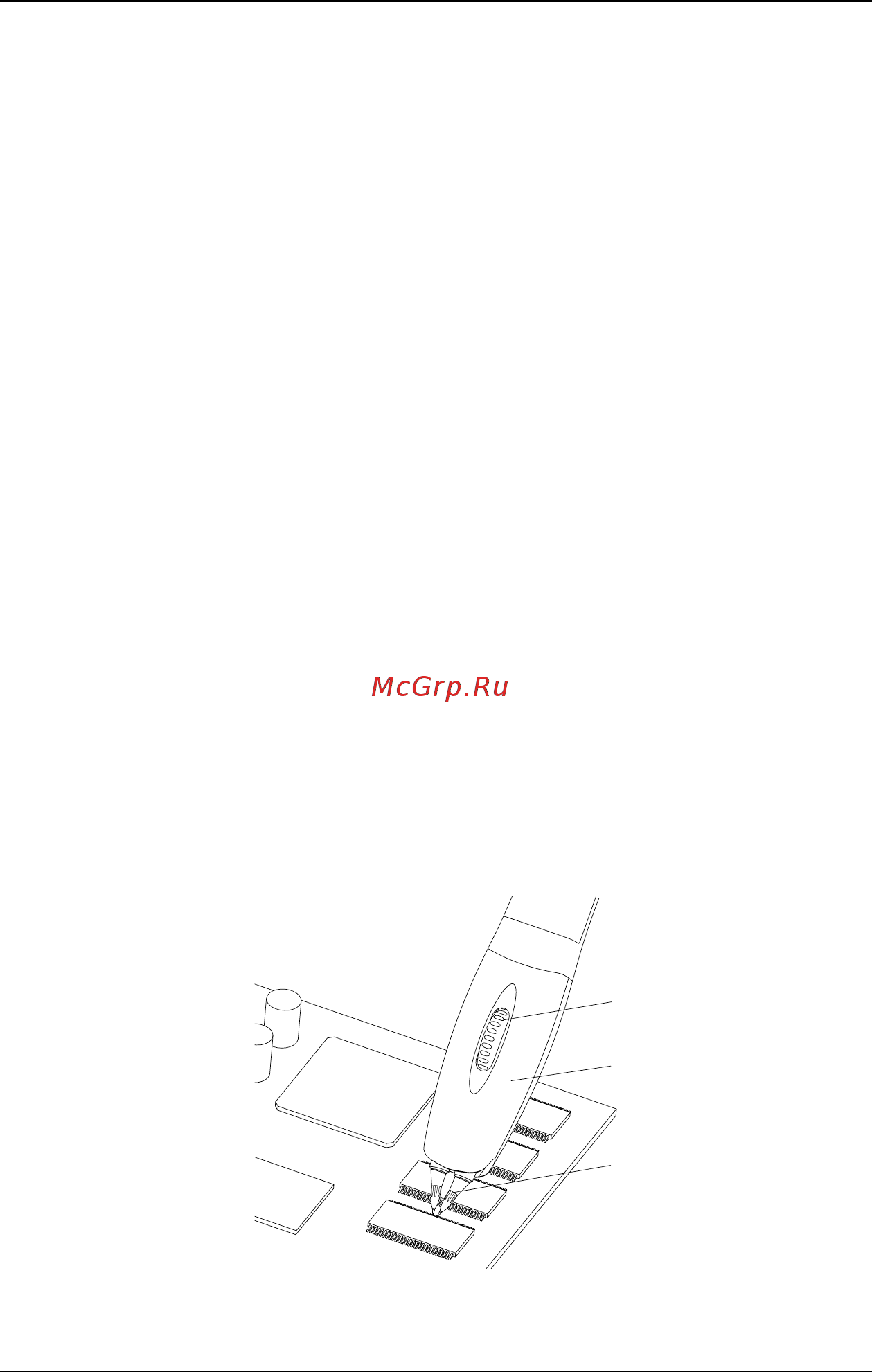

The structure of the hand-held differential probe head is as shown in Figure 9.
Figure 9 Hand-held Differential Probe Head
①
②
③
