RIGOL
16 User’s Guide for RP7000 Series Active Probe

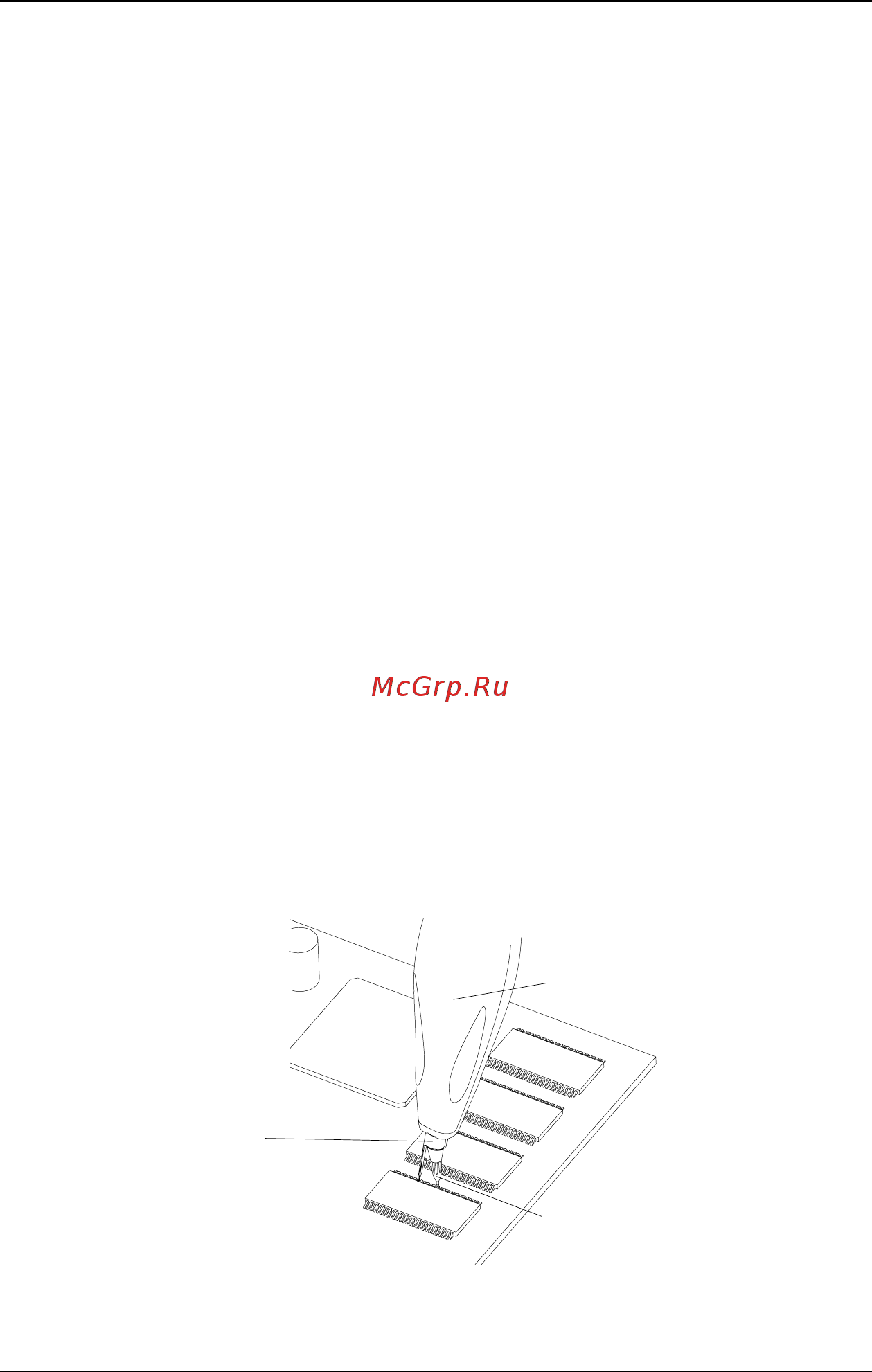

① Turning the roller to adjust the spacing (0mm to 5.5mm) between the two
probe tips.
② Hand-held differential probe head (RP7-0204).
③ 91Ω probe tip (RP7-0405).
2. Hand-held Single-ended Probe Head
The hand-held single-ended probe head provides an effective bandwidth of
more than 1.5GHz. Besides, the spacing between the single-ended ground
collar and probe tip can be adjusted by rotating the ground collar and the
replaceable probe tip and single-ended ground collar prolong the service life of
the probe.
The hand-held single-ended probe head can be used to measure single-ended
signal. During the measurement, the single-ended ground collar must be
grounded. Pay attention to their polarities when connecting the probe head and
active probe amplifier.
The structure of the hand-held single-ended probe head is as shown in Figure
10.
Figure 10 Hand-held Single-ended Probe Head
①
②
③
