User Guide 62
Configuring VLAN Configuration Example for 802.1Q VLAN
2) The following page will be displayed. Click Yes.

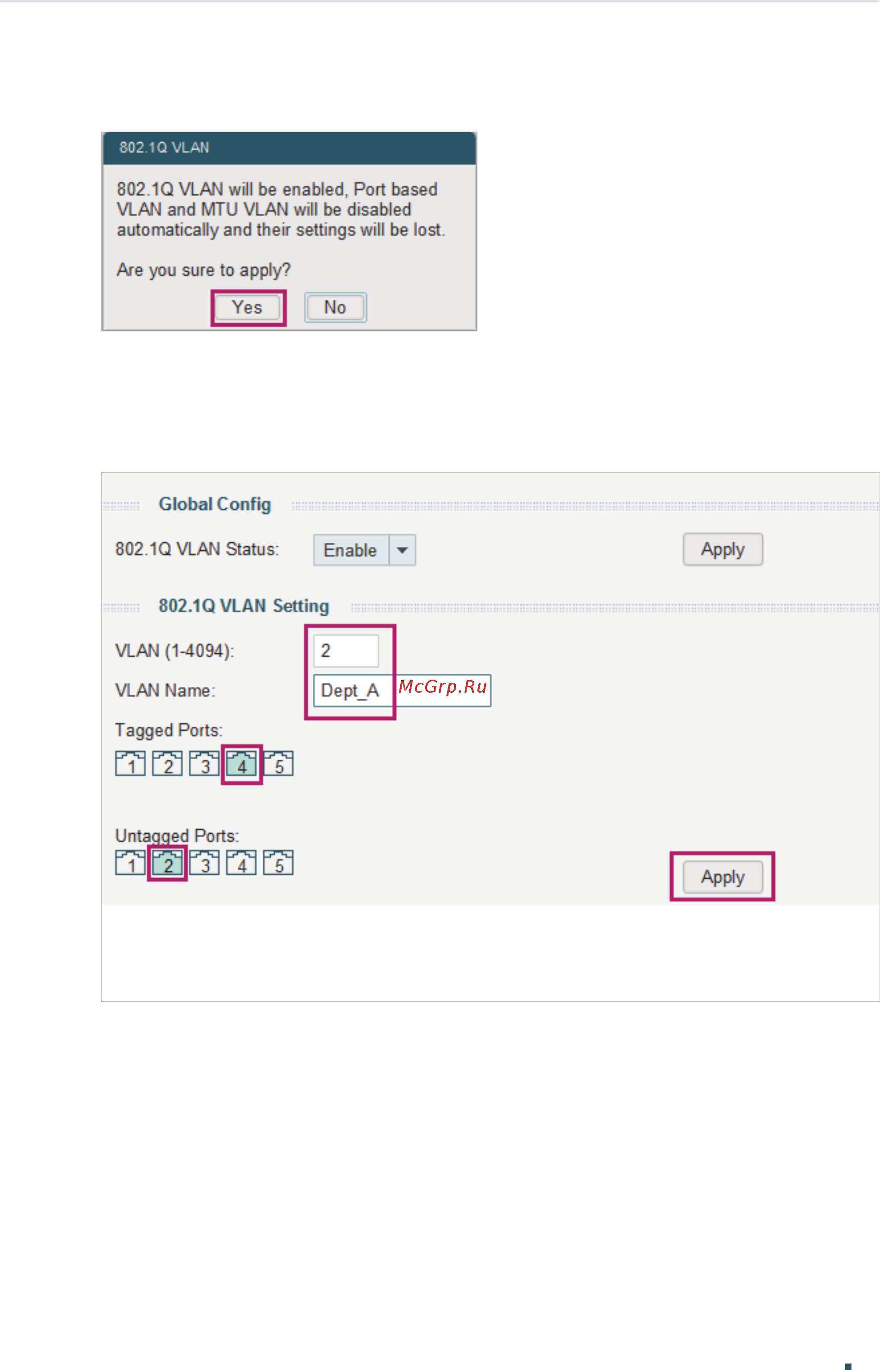

Figure 5-3 Enableing 802.1Q VLAN
3) The following page will be displayed. In the 802.1Q VLAN Setting section, specify the
VLAN ID as 2, specify the VLAN name as Dept_A. Add port 4 to the VLAN as a tagged
port. Add port 2 to the VLAN as an untagged port. Click Apply.
Figure 5-4 Creating VLAN 2 and Adding Ports to the VLAN
4) Choose the menu VLAN > 802.1Q VLAN to load the following page. In the 802.1Q VLAN
Setting section, specify the VLAN ID as 3, specify the VLAN name as Dept_B. Add
