Configuring VLAN Configuration Example for 802.1Q VLAN
User Guide
63
port 4 to the VLAN as a tagged port. Add port 3 to the VLAN as an untagged port. Click
Apply.

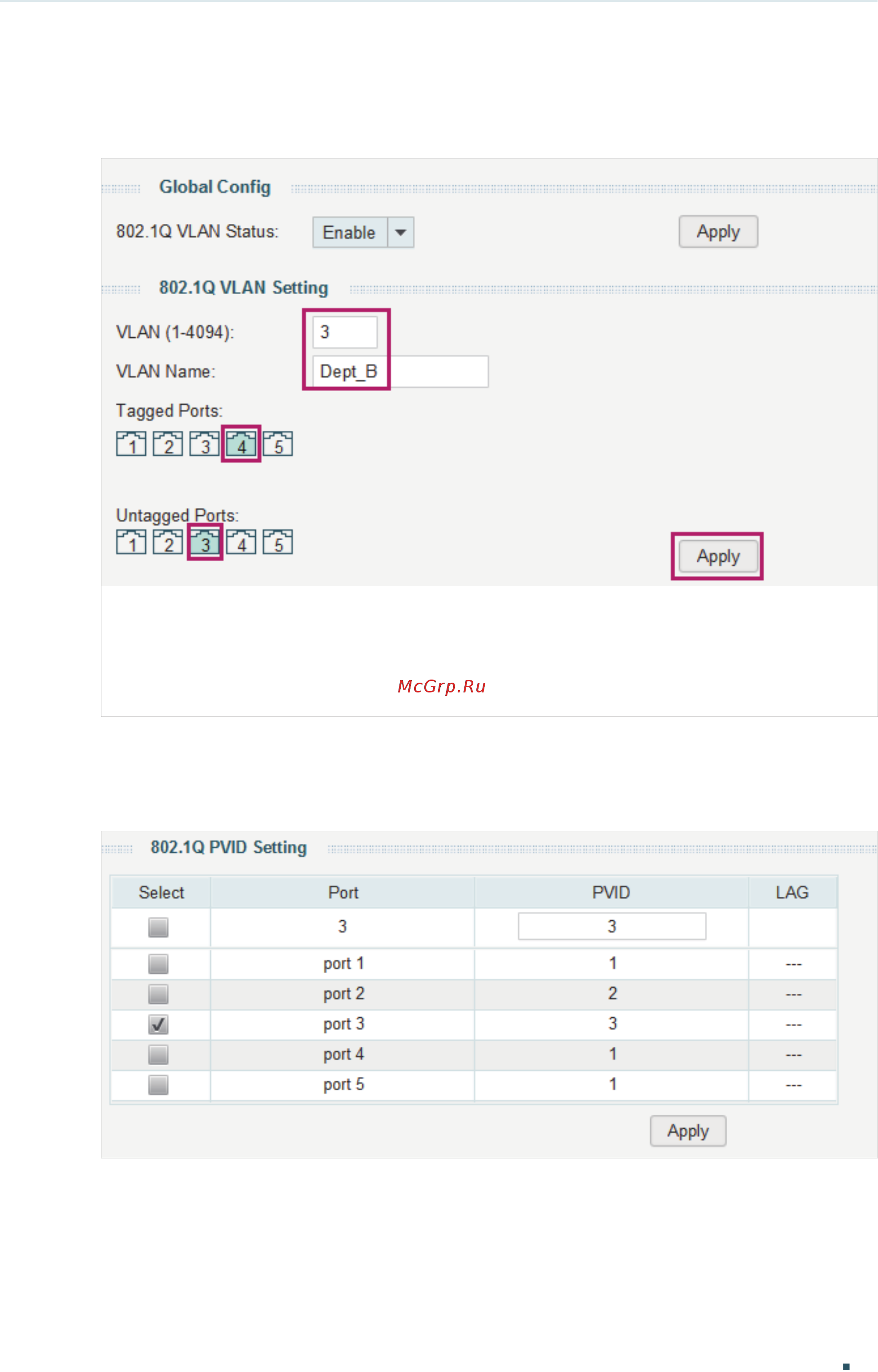

Figure 5-5 Creating VLAN 3 and Adding Ports to the VLAN
5) Choose the menu VLAN > 802.1Q VLAN PVID Setting to load the following page. Set
the PVID of port 2 as 2 and click Apply. Set the PVID of port 3 as 3 and click Apply.
Figure 5-6 Configuring 802.1Q PVID
