Eaton Powerware DA1-34370FB-A40N [73/134] Преобразователи частоты powerxl

DC1, DA1

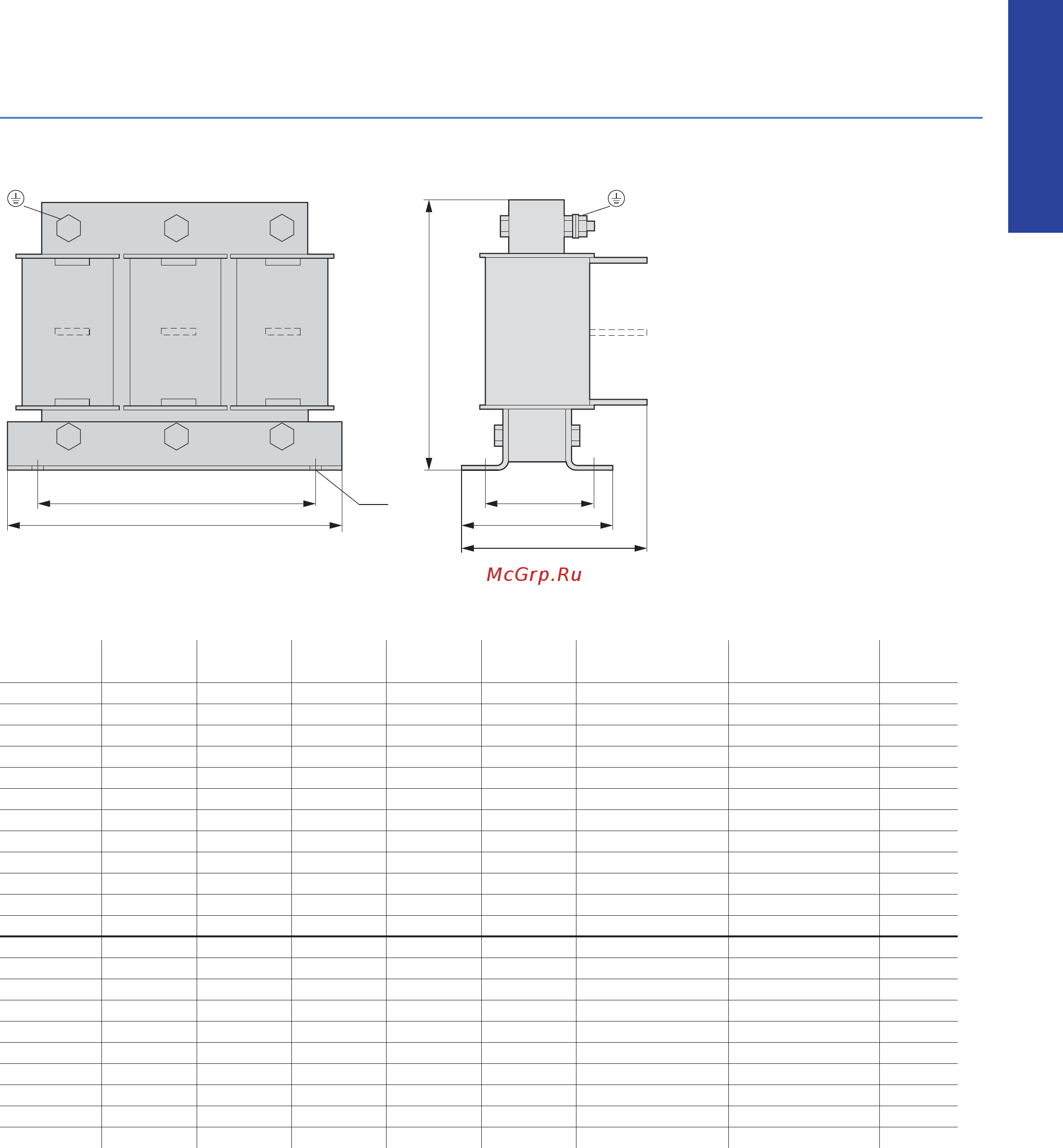

Mains chokes, motor chokes

DX-LN3-050…-DX-LN3-450

DX-LM3-063…-DX-LM3-450

⌀d

U1 V1 W1

U2 V2 W2

b ± (b ± 0.39”)

c ±

(c ± 0.20”)

DX-LN3-050 195 (7.68) 175 (6.89) 105 (4.13) 75 (2.95) 91.5 (3.6) 132 ±5 (5.2 ±0.2) 8 x 13 (0.31 x 0.51) 5.9

DX-LN3-060 195 (7.68) 175 (6.89) 105 (4.13) 75 (2.95) 91.5 (3.6) 132 ±5 (5.2 ±0.2) 8 x 13 (0.31 x 0.51) 5.9

DX-LN3-080 220 (8.66) 200 (7.87) 110 (4.33) 50 (1.97) 81.5 (3.21) 160 ±5 (6.3 ±0.2) 8 x 13 (0.31 x 0.51) 7.3

DX-LN3-100 220 (8.66) 200 (7.87) 130 (5.12) 75 (2.95) 101.5 (4) 160 ±5 (6.3 ±0.2) 8 x 13 (0.31 x 0.51) 10.2

DX-LN3-120 220 (8.66) 200 (7.87) 130 (5.12) 75 (2.95) 101.5 (4) 160 ±5 (6.3 ±0.2 ) 8 x 13 (0.31 x 0.51) 10.2

DX-LN3-160 270 (10.63) 250 (9.84) 125 (4.92) 75 (2.95) 96 (3.75) 200 ±5 (7.87 ±0.2) 8 x 13 (0.31 x 0.51) 12.3

DX-LN3-200 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 120 (4.72) 202 ±5 (7.95 ±0.2) 8 x 13 (0.31 x 0.51) 14.9

DX-LN3-250 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 125 (4.92) 210 ±5 (8.27 ±0.2) 10 x 18 (0.39 x 0.71) 20.6

DX-LN3-300 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 125 (4.92) 210 ±5 (8.27 ±0.2) 10 x 18 (0.39 x 0.71) 20.6

DX-LN3-303 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 125 (4.92) 210 ±5 (8.27 ±0.2) 10 x 18 (0.39 x 0.71) 20.6

DX-LN3-370 384 (15.12) 350 (13.78) 215 (8.46) 100 (3.94) 130 (5.12) 258 ±5 (10.16 ±0.2) 12 x 20 (0.47 x 0.79) 24.3

DX-LN3-450 384 (15.12) 350 (13.78) 215 (8.46) 100 (3.94) 130 (5.12) 258 ±5 (10.16 ±0.2) 12 x 20 (0.47 x 0.79) 23.8

DX-LM3-063 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 120 (4.72) 202 ±10 (7.95 ±0.39) 8 x 13 (0.31 x 0.51) 14.9

DX-LM3-080 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 125 (4.92) 210 ±10 (8.27 ±0.39) 10 x 18 (0.39 x 0.71) 20.6

DX-LM3-100 384 (15.12) 350 (13.78) 215 (8.46) 100 (3.94) 130 (5.12) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 31

DX-LM3-150 384 (15.12) 350 (13.78) 260 (10.24) 150 (5.91) 180 (7.09) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 45

DX-LM3-180 384 (15.12) 350 (13.78) 260 (10.24) 150 (5.91) 180 (7.09) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 45

DX-LM3-220 384 (15.12) 350 (13.78) 260 (10.24) 150 (5.91) 180 (7.09) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 45

DX-LM3-260 384 (15.12) 350 (13.78) 260 (10.24) 150 (5.91) 180 (7.09) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 45

DX-LM3-303 454 (17.87) 425 (16.73) 270 (10.63) 100 (3.94) 150 (5.9) 313 ±5 (12.32 ±0.2) 12 x 20 (0.47 x 0.79) 48.7

DX-LM3-370 454 (17.87) 425 (16.73) 285 (11.22) 125 (4.92) 165 (6.5) 313 ±5 (12.32 ±0.2) 12 x 20 (0.47 x 0.79) 61.7

DX-LM3-450 454 (17.87) 425 (16.73) 300 (11.81) 150 (5.9) 180 (7.09) 313 ±5 (12.32 ±0.2) 12 x 20 (0.47 x 0.79) 81.7

www.eaton.ru

Преобразователи частоты PowerXL™

Сетевые дроссели, дроссели электродвигателя

Допуск по высоте зависит от величины зазора

Положение соединительных наконечников U2-V2-W2 зависит от материала катушки и может отличаться от положения, показанного на рисунке.

мм (дюймы)

Вес

кг

10 мм

5 мм
