4.5 Connection examples for the control inputs
Preface: For historical reasons, there are different connection methods for the input/output level (input/output
signals on connectors X1 and X2).
• Assignment on the basis "7TZ" (most popular file, approach speed is removed in the flush range).
The basic program "7TZ" is factory setting (also gearless-files based on input/outputs like "7TZ").
• For assignment “10SZ” (for DCP, ACP and other bus systems) see more details in point 4.5.5.
• Older programs not longer supported in that manual (please ask technical-support for more details).

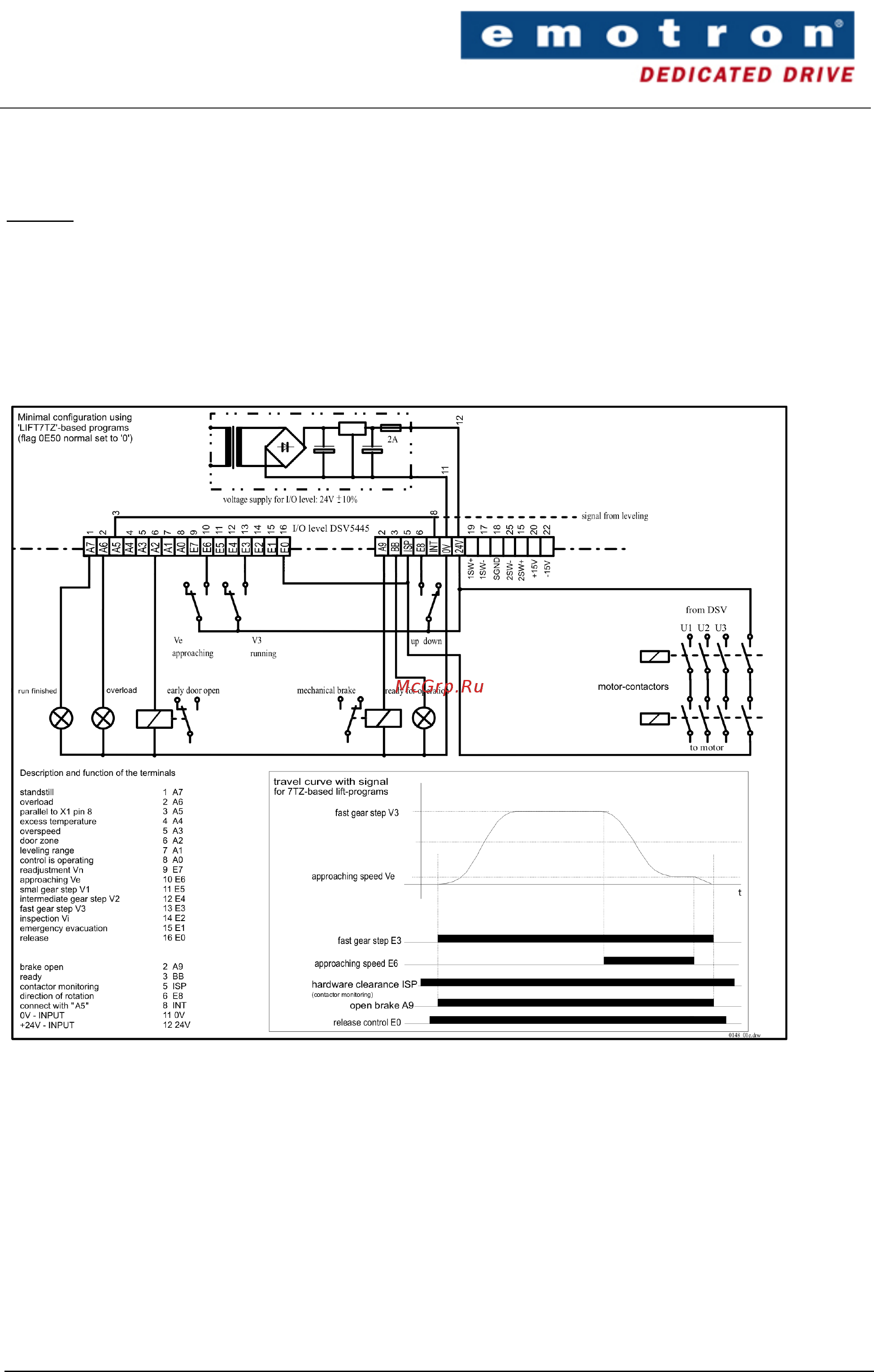

4.5.1 Connection example LIFT7TZ with normal inputs for speed and direction (0E50 = 0)
In the minimal configuration for LIFT7TZ., the main drive steps V3, V1, V2, Vn or Vi remain applied and "Ve"
is added after the copy point. It is also possible to remove the fast drive signal shortly after "Ve" is applied. It
is however recommended to wait for at least 5 ms between removing the fast drive signal and applying the
approach speed signal; the switchover must however be made "bounce-free"!
The controller switches Ve back to low in the flush region. Output X2 A5 pin 3 associated with X1 INT pin 8
switches the DSV 5445 automatically to position control and causes the approach into the stop point.
The exact remaining distance up to stop is specified in parameter "F26" (Stop distance to floor).
The specification of the terminals is described in Chapter "Digital Inputs/Outputs".
