EMOTRON DSV 5445/5444
21.04.09 Emotron
Page 79

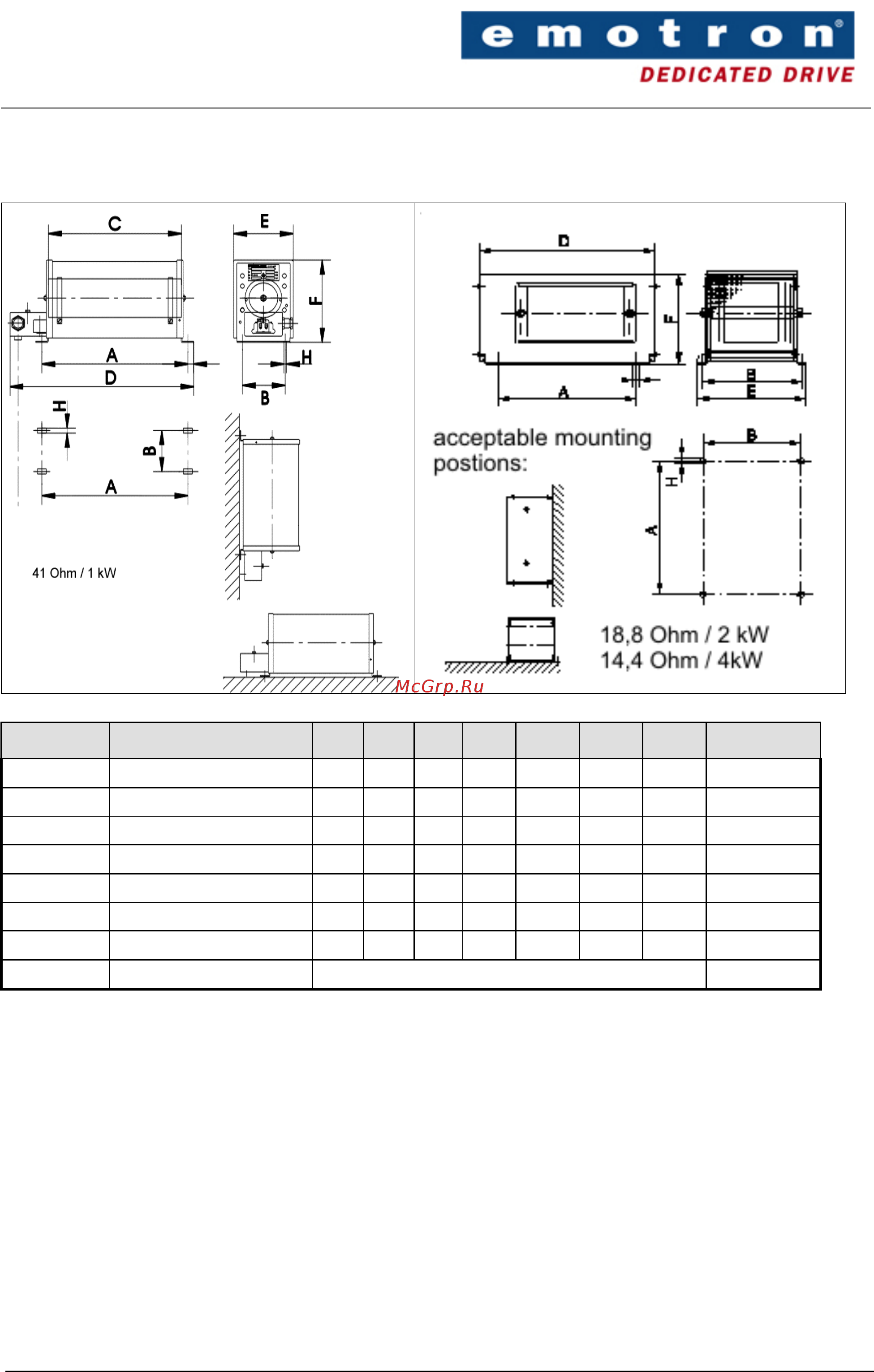

Brake resistor
DSV 5445 Brake resistor A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
H
[mm]
Weight
[kg]
5 - 10 A
40 Ω / 0.5 kW Cressall
236 92 - 288 121 141 10.5 1.4
15 - 20 A
40 Ω / 1 kW Cressall
415 92 - 445 121 141 10.5 4
30 - 40 A
18-20 Ω / 2 kW Cressall
415 185 - 445 213 141 10.5 6
60 - 80 A
14-15 Ω / 4 kW Cressall
415 278 - 445 207 141 10.5 9
120 A
13.0 Ω / 6.5 kW Frizlen
380 370 - 490 395 260 10.5 12
150 A
10.0 Ω / 8 kW Cressall
700 290 - 766 330 141 10.5 15
200-250 A
4.0 - 6.5 Ω / min. 11 kW
380 570 - 490 595 260 10.5 21
320 A
2.5 - 5.0 Ω / min. 19 kW
Size depends on the needed application-datas 41 - 83
Pay attention to connection assignment:
Terminals: RB1 / RB2 → Braking resistor terminals.
Terminals: T1 / T2 → Thermo-contact terminals.
High operating temperature:
The temperature of the resistor elements reaches up to 350 °C. No heat-sensitive objects,
e.g. cables, may therefore be located in the vicinity. The electrical connections must be
made from below. The braking resistor may not be operated in explosive environments or
in the vicinity of inflammable materials. Free circulation of cooling air must not be
obstructed.
Protection class:
Due to the low protection class based on the physical principles of braking resistors, it
must be ensured by means of a suitable installation position, that foreign objects can
never fall, drip, flow or blow into the resistor.
Note: Measurement of housing and connection could be different from this table above.
