High Performance Vector Control/Torque Control Inverter User Manual
Chapter 6 Parameter Description 107
continuously overload prealarm detection level PA.14 and the lasting time is longer than overload
prealarm detection time PA.15. If tens place is selected with overload failure display and stop, it will
display “E.oL2” when the unit place is 0, it will display “E.oL1” when the unit place is 1.
Hundreds place: Determine under which run status the overload prealarm function will be enabled.
Note: Y terminal with multiple function can be set to “4: Overload detection signal (OL)” to display
overload prealarm signal.

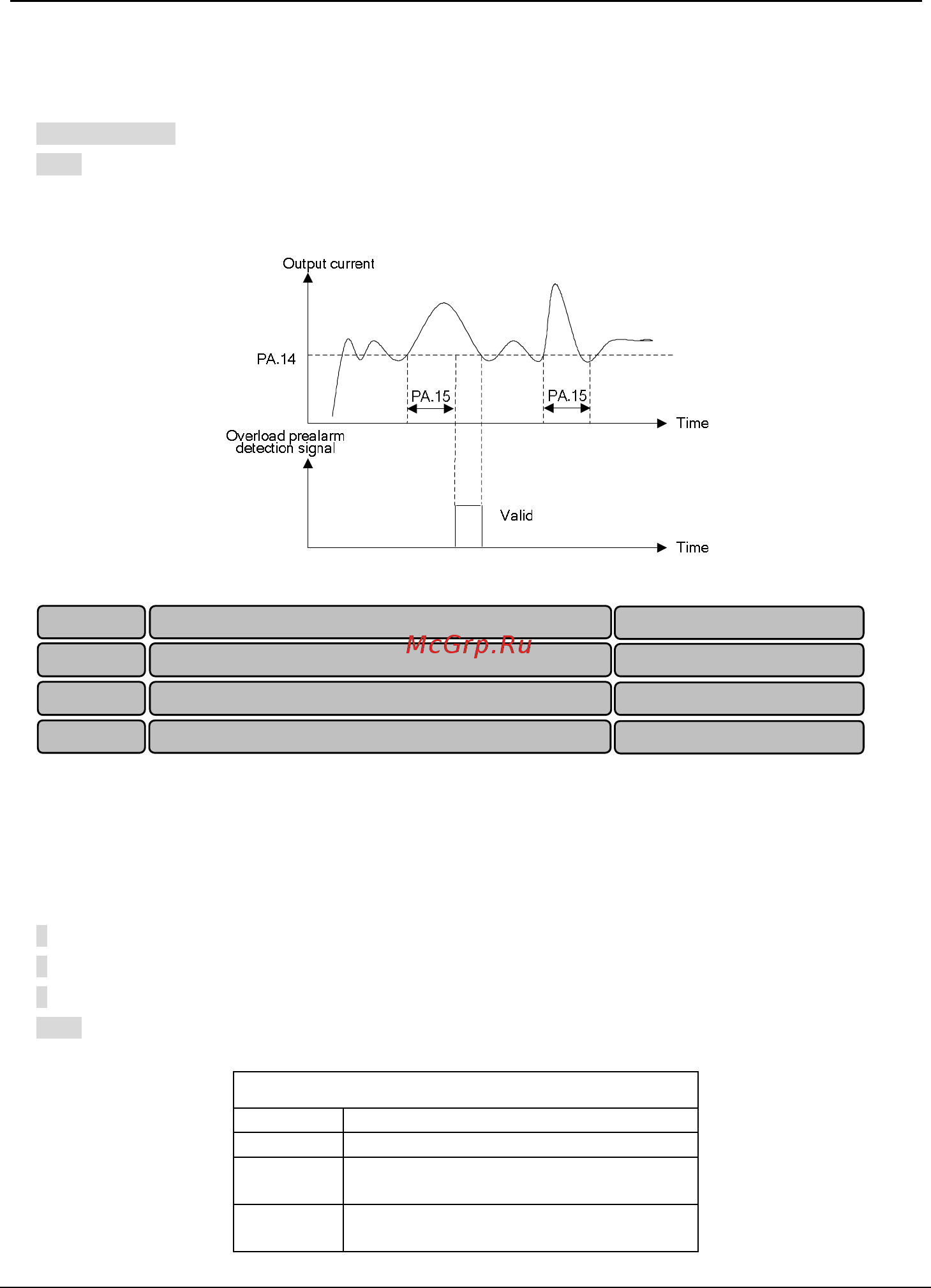

Fig. 6−35 Overload prealarm detection signa
The function can be used to manage various actions when some failures occur. When these failures
occur under some special circumstances, inverter shall alarm immediately but not stop. Alarm
information is displayed on the operational panel and even the failure is to be shielded.
Unit place, tens place, hundreds place and thousands place displayed on operational panels from PA.16
to PA.19 can be set:
0: Failure not shielded and alarm and stop during failure.
1: Failure not shielded and alarm but not stop during failure.
2: Failure shielded neither alarm nor stop.
Note: To change factory-setting, please contact with distributor or manufacturer.
PA.16 failure shield and alarm attribute setting 1
Display of operation panel
Unit place:
Output short circuit to ground abnormality
Tens place
Power failure abnormality during running
Hundreds
place
Input power abnormality
Thousands
place
Output phase loss EEPROM abnormality
PA.16 Fault shielded and alarm attribute setup 1
0 ~ 2222(0020)
PA.17 Fault shielded and alarm attribute setup 2
0 ~ 2222(0000)
PA.18 Fault shielded and alarm attribute setup 3
0 ~ 2222(2000)
PA.19
Fault shielded and alarm attribute setup 4
0 ~ 2222(0002)
