QSW-98ХХ Series Switch Hardware Installation and Reference Guide 12
www.qtech.ru
Anti-static wrist strap socket
Supervisor module slots
Service module slots
Ensure the supervisor module, service module and power supply module are removed from the chassis before you
move or transport the QSW-9807 chassis.
Back Panel
The back panel of the QSW-9807 switch is shown in Figure 1-8.

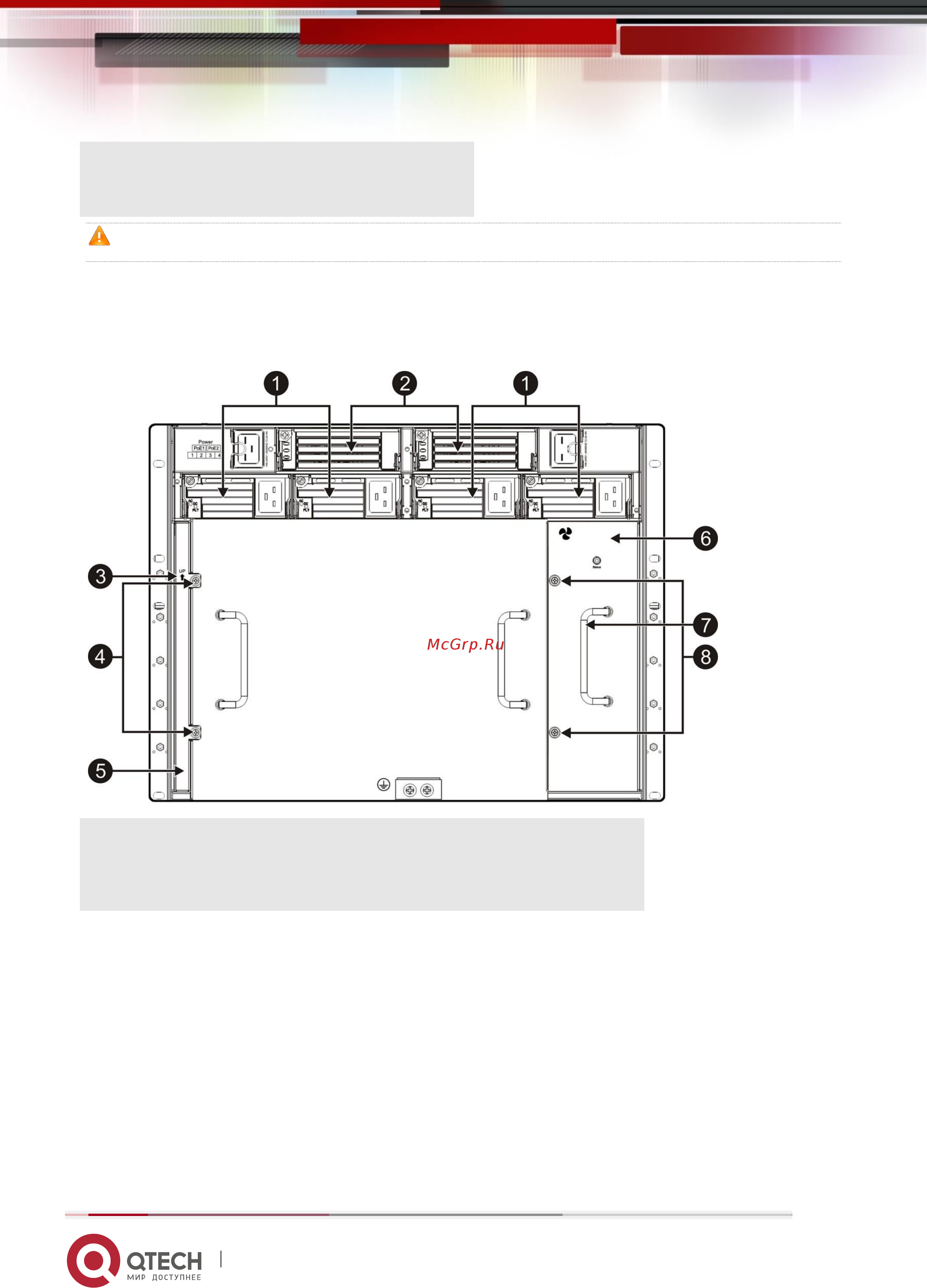

Figure 1-8 Back Panel of the QSW-9807 Switch
Note:
Power module slots
PoE power modules slots
Symbol of installation direction for
the air filter
Captive screws of the air filter
Air filter
fan tray
Fan tray handle
⑧ Captive screws of the fan tray
Power Supply
AC input: The QSW-M-98XX-PWR2-AC and the QSW-M-98XX-PWR-AC power supply modules are supported. The
two types of power supply modules support power management. The supervisor module of the QSW-9807 switch
can read the power supply information and implement flexible and intelligent power management.
DC input: The QSW-M-98XX-PWR2-DC and the QSW-M-98XX-PWR-DC power supply modules are supported. The
two types of power supply modules support power management. The supervisor module of the QSW-9807 switch
can read the power supply information and implement flexible and intelligent power management.
PoE input: The QSW-M-98XX-PWR-AC-POE1 and QSW-M-98XX-PWR-AC-POE2 power modules are available
supported. The power module supports power management. The supervisor module of the QSW-9807 switch can
read the power supply information and implement flexible and intelligent power management.
