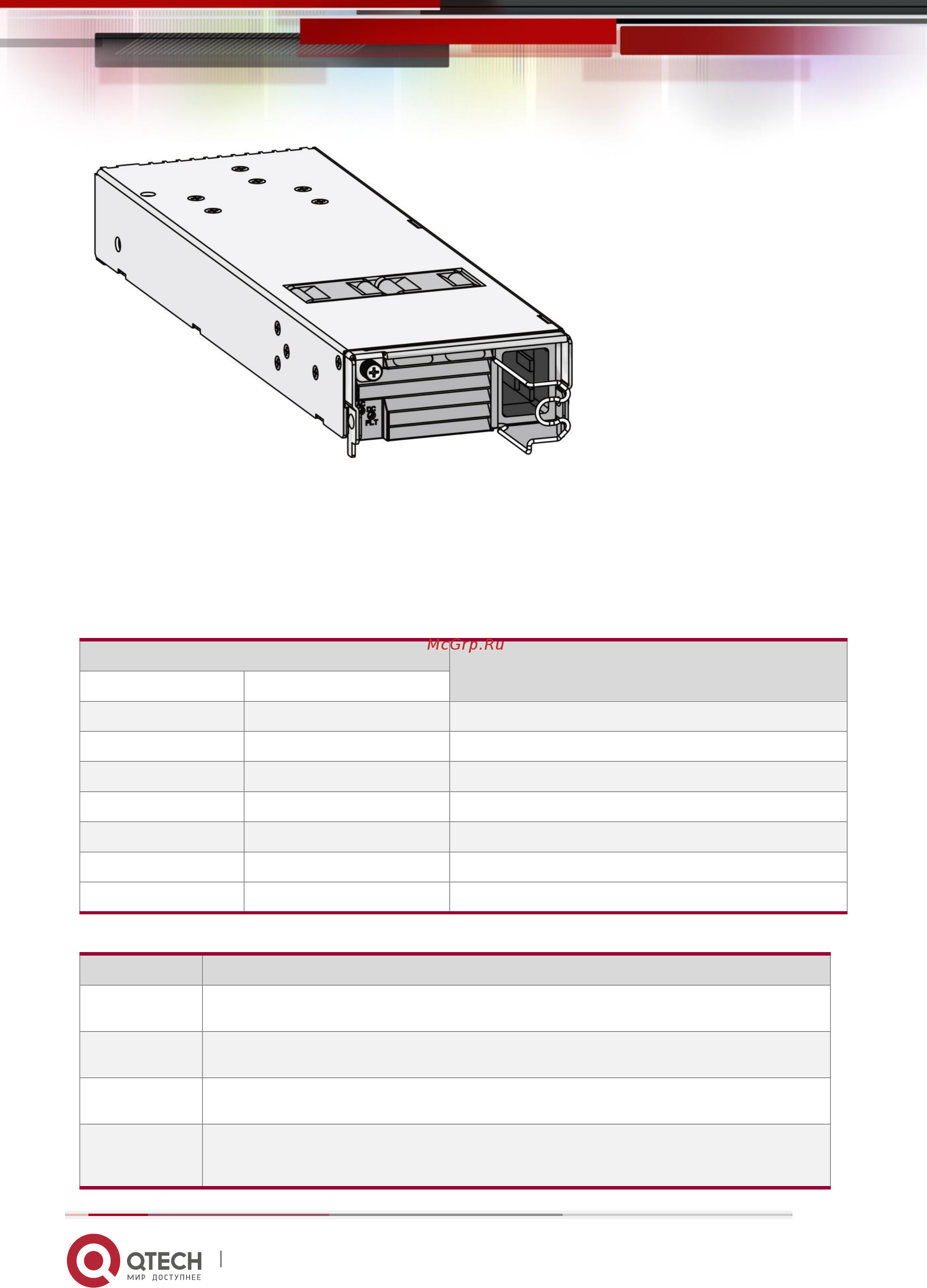

QSW-98ХХ Series Switch Hardware Installation and Reference Guide 43
www.qtech.ru
External port
The QSW-M-98XX-PWR2-AC module provides 12 VAC input to the overall system of the
QSW-9805/QSW-9807/QSW-9810 switch. The front panel of the power supply module provides a 3-pin power port, which
can be connected to standard 16A power cord.
LED
LED
Meaning
AC
DC/FLT
Solid green
Solid green
The module is operational
Off
Solid red
The is no power input or input undervoltage.
Solid green
Solid red
Overvoltage.
Solid green
Solid red
Overcurrent.
Solid green
Solid orange
Temperature alarm
Solid green
Solid red
Over-temperature fault
Solid green
Solid red
PSR on/off
Specifications
Module Model
QSW-M-98XX-PWR2-AC
Rated Voltage
Range
100 to 120 VAC, 200 to 240 VAC; 50/60 Hz
Max Voltage
Range
90 to 264 VAC; 47 to 63 Hz
Max Power
Output
90 to 180 VAC Power: 1200 W
180 to 264 VAC Power: 1600 W
High Current DC
Parameter
192 to 216 VDC Power: 1200 W
216 to 290 VDC Power: 1600W
