QSW-98ХХ Series Switch Hardware Installation and Reference Guide 19
www.qtech.ru
Back Panel

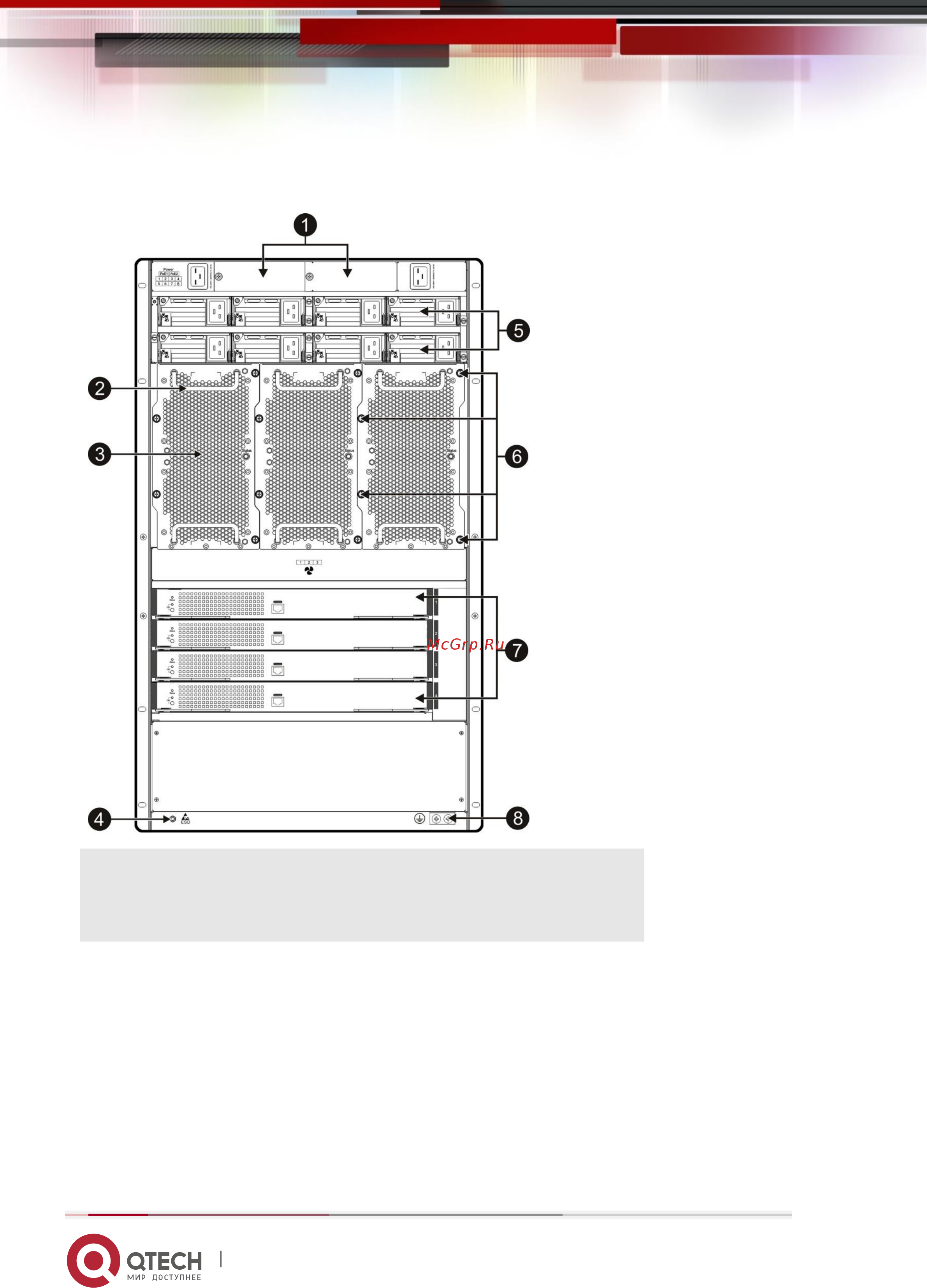

The back panel of the QSW-9810 switch is shown in Figure 1-13.
Figure 1-13 Back Panel of the QSW-9810 Switch
Note:
PoE power modules slots
Fan tray handle
Fans of service module and
supervisor module
Anti-static wrist strap socket
Power module slots
Captive screws of the fan tray
Switch fabric modules slots
⑧ Grounding point
Power Supply
AC input: The QSW-M-98XX-PWR2-AC and the QSW-M-98XX-PWR-AC power supply modules are supported. The
two types of power supply modules support power management. The supervisor module of the QSW-9810 switch
can read the power supply information and implement flexible and intelligent power management.
DC input: The QSW-M-98XX-PWR2-DC and the QSW-M-98XX-PWR-DC power supply modules are supported. The
two types of power supply modules support power management. The supervisor module of the QSW-9810 switch
can read the power supply information and implement flexible and intelligent power management.
PoE input: The QSW-M-98XX-PWR-AC-POE1 and QSW-M-98XX-PWR-AC-POE2 power modules are available.
The power module supports power management. The supervisor module of the QSW-9810 switch can read the
power supply information and implement flexible and intelligent power management.
