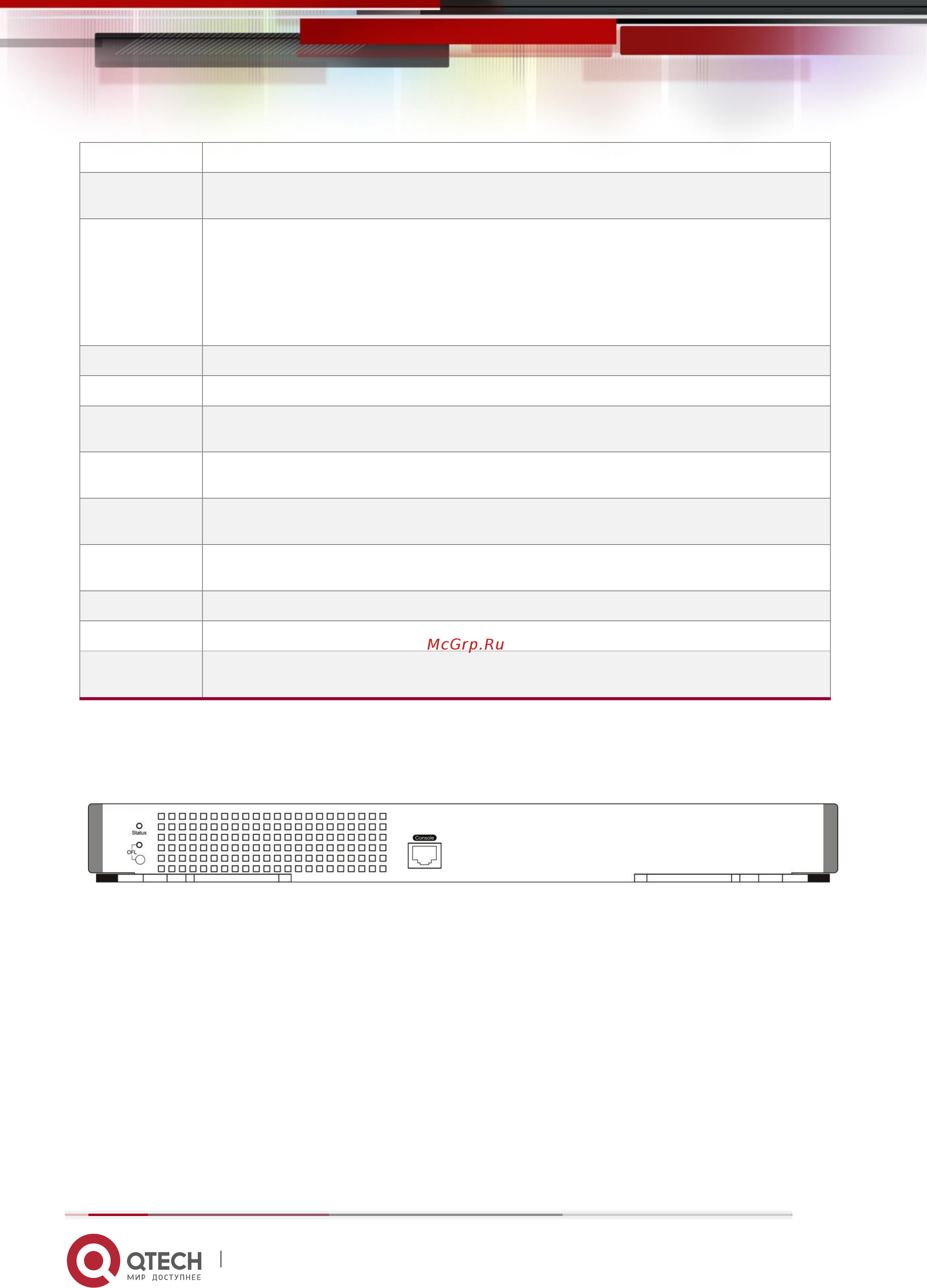

QSW-98ХХ Series Switch Hardware Installation and Reference Guide 41
www.qtech.ru
Model
QSW-М-98XX-24SFP8GT-L
Port Type
Eight 10/100/1000BASE-T RJ-45 ports, 24 SFP ports. The first eight fiber ports are copper/fiber
combo ports.
Transmission
Medium
10/100/1000BASE-T Cat-5 UTP
100BASE-FX(1310nm) Multi-mode or single-mode optical fiber
100BASE-FX (1550nm) Single-mode optical fiber
1000BASE-SX (850nm) Multi-mode optical fiber
1000BASE-LX (1310nm) Single-mode optical fiber
1000BASE-LH (1310nm) Single-mode optical fiber
1000BASE-ZX (1550nm) Single-mode optical fiber
LED
Status, Link/ACT
Hot Swapping
Supported
Power
Consumption
<72W
Operating
Temperature
0°C to 50°C
Storage
Temperature
-40°C to +70°C
Operating
Humidity
10%-90% RH (non-condensing)
MTBF
403,000 hours
Weight
Net weight: 3.2 kg
Dimensions
(W x D x H)
399 mm x 440 mm x 40.18 mm
1.4.11 QSW-М-98XX-FE
Module Appearance
Figure 1-27 Appearance of the QSW-М-98XX-FE Module
External Port
The QSW-М-98XX-FE module provides one external ports:
Console port: As a serial communications port, it uses the RS-232 interface level and standard RJ-45 connector.
