QSW-98ХХ Series Switch Hardware Installation and Reference Guide 14
www.qtech.ru

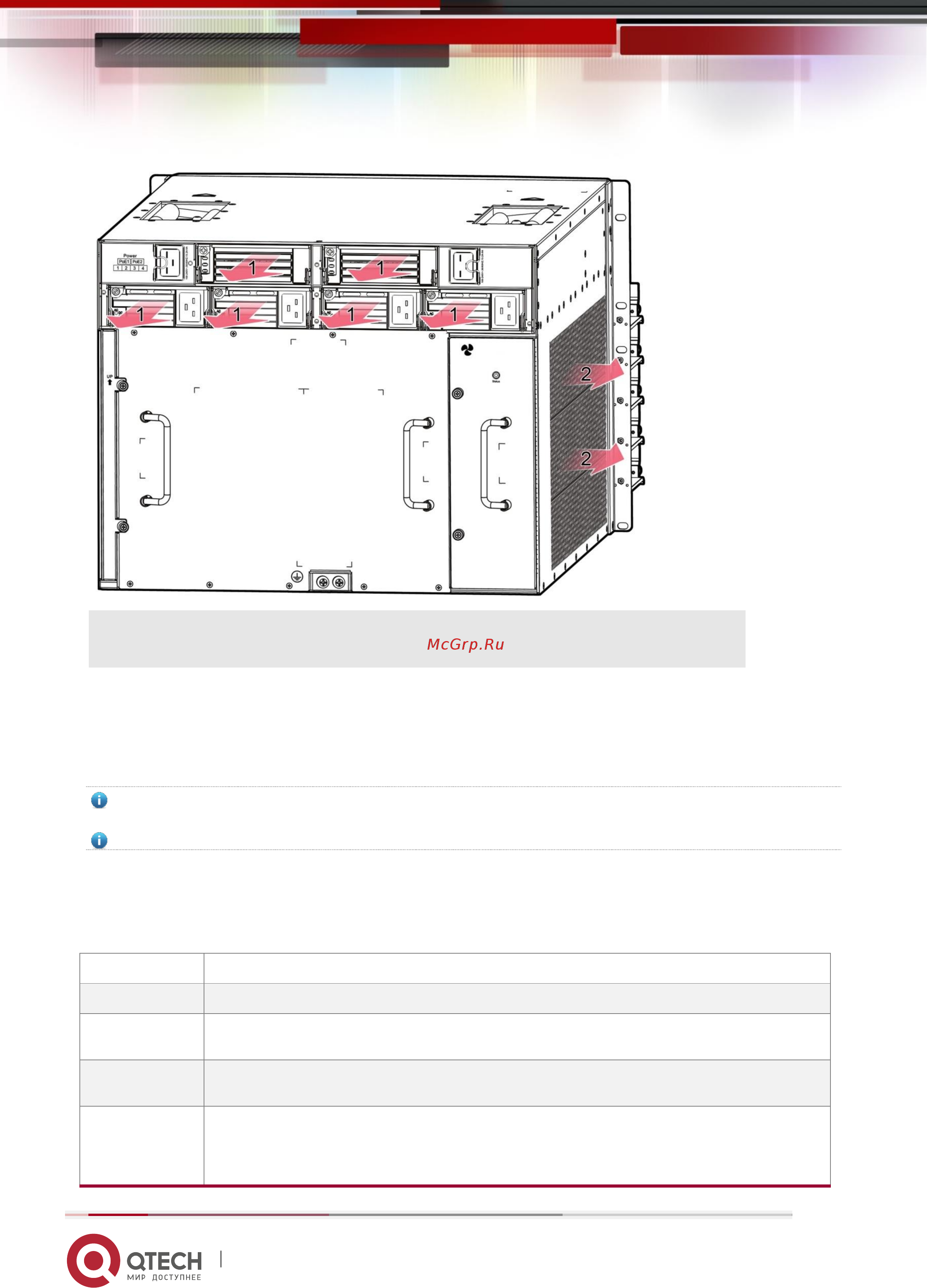

Figure 1-10 Ventilation and Heat Dissipation System of the QSW-9807 Switch (Exhaust Vents)
Note:
Exhaust vents for power modules
Exhaust vents for service and supervisor
modules
For supervisor and service modules, air flows in from the right intakes and out from the left vents.
For the power supply modules, air flows in from the front intakes and out from the back vents.
The chassis should be mounted in a place with sufficient space for air circulation. Sufficient space (10 cm at least)
must be reserved at the air intakes and exhaust vents for ventilation.
If any module slot is unoccupied, install a filler panel to enable proper airflow.
1.3 QSW-9810
Specifications
Model
QSW-9810
Module Slot
Two supervisor module slots, eight service module slots and four switch fabric module slots
Supervisor
Module
QSW-M-98XX-MC
Switch Fabric
Module
QSW-М-98XX-FE
Service Module
QSW-М-98XX-8XS-M
QSW-М-98XX-4XS44SFP-M
QSW-М-98XX-4XS24GT20SFP-M
QSW-М-98XX-48GT-M
