QSW-98ХХ Series Switch Hardware Installation and Reference Guide 8

www.qtech.ru

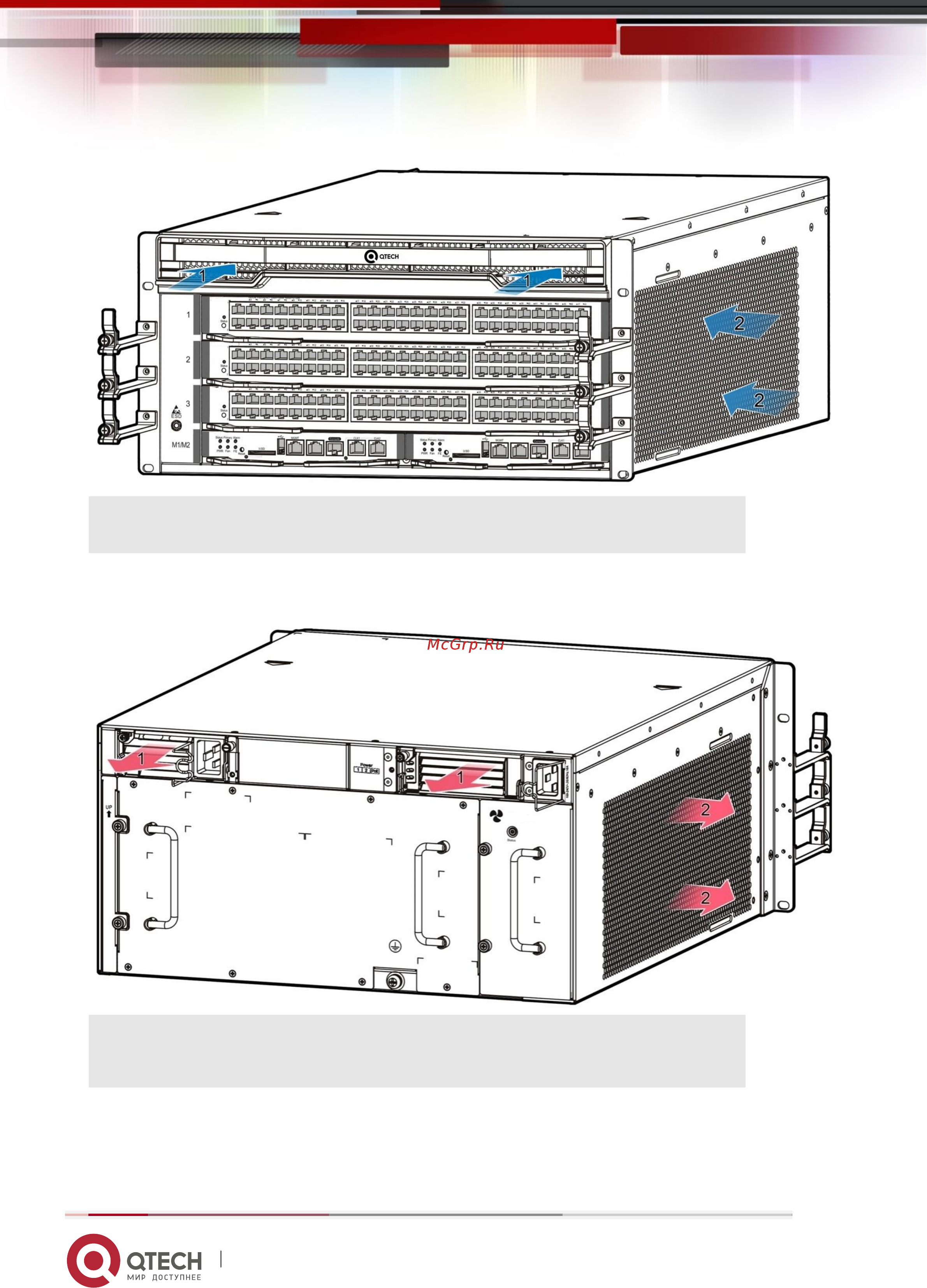

Figure 1-4 Ventilation and Heat Dissipation System of the QSW-9805 Switch (Air Intakes)

Note:

 Air intakes for power modules

 Air intakes for service and supervisor modules

Figure 1-5 Ventilation and Heat Dissipation System of the QSW-9805 Switch (Exhaust Vents)

Note:

 Exhaust vents for power modules

 Exhaust vents for service and supervisor

modules

For the supervisor and service modules, air flows across the chassis from the right intakes to the left vents.

For the power supply modules, air flows in from the front intakes and out from the back vents.
