Kohler Command PRO CH260 [30/100] Governor system
![Kohler Command PRO CH440 [30/100] Governor system](/views2/1597218/page30/bg1e.png)
30

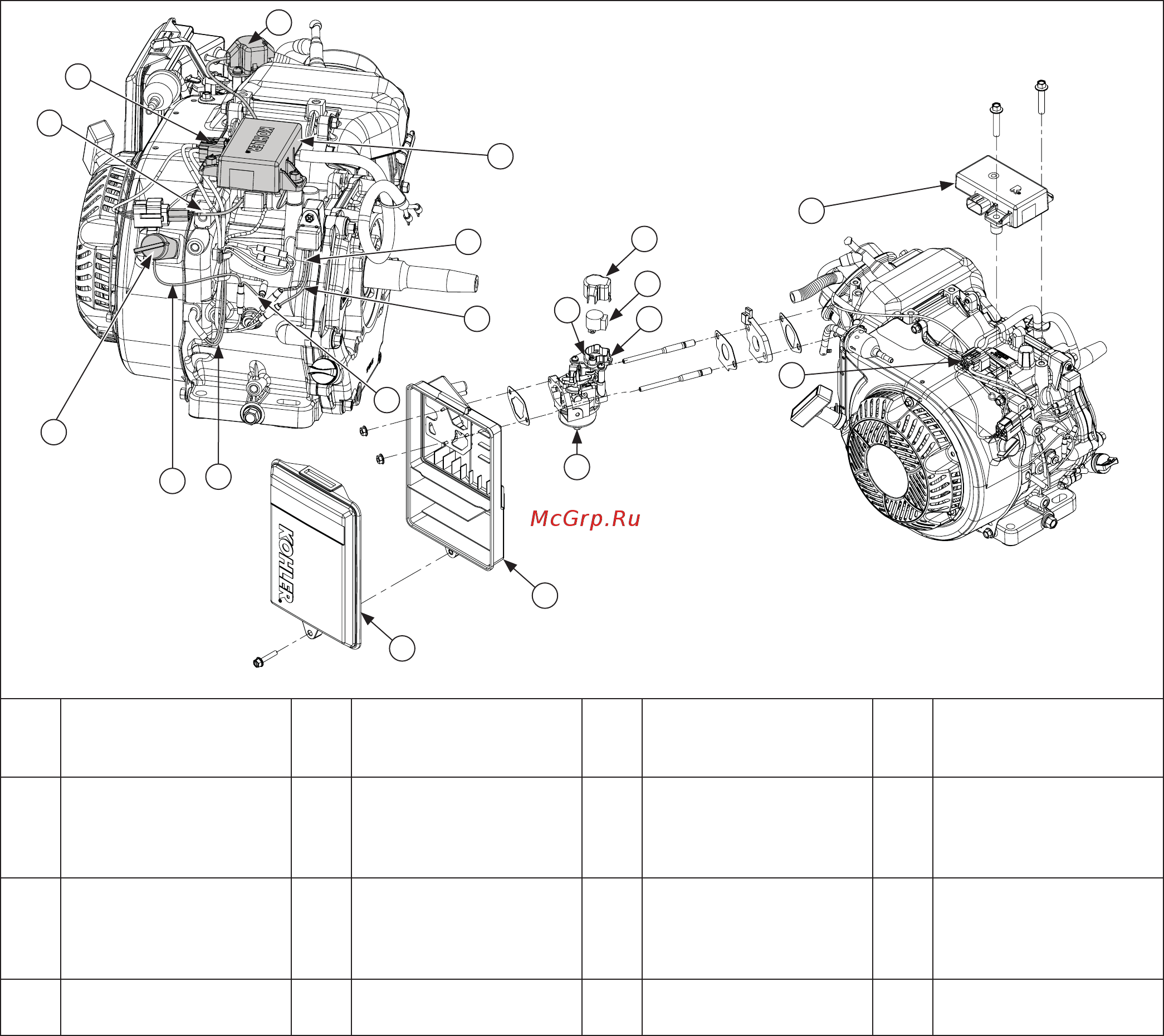

Governor System
KohlerEngines.com 17 690 01 Rev. J
A
B
B
C
G
L
K
O
N
M
P
A
J
I
H
F
E
D
C
A
Wiring Assembly
Harness
B Carburetor Assembly C
Electronic Governor
Control
D
Yellow Oil Sensor
Lead to Oil Alert
Green Lead
E
Green Lead from
Electronic Governor
Control to Oil Alert
Black Lead
F
Ignition Switch Lead
to Ignition Kill Lead
G
Red Leads from
Electronic Governor
Control to Red Stator
Leads
H
White Lead from
Electronic Governor
Control to Ignition
Switch
I Ignition Switch J
Carburetor Stepper
Motor Leads to
Electronic Governor
Control Leads
K Air Cleaner Base L Air Cleaner Cover
M
Stepper Motor
Bracket
N Stepper Motor O Stepper Motor Cover P Stepper Motor Base
GOVERNOR
These engines are equipped with an electronic governor or a mechanical governor.
ELECTRONIC GOVERNOR
Components
Electronic governor regulates engine speed at varying loads. This electronic governor includes:
● Electronic governor control.
● Stepper motor.
● Wiring assembly harness.
