Gear Reduction System

17 690 01 Rev. J KohlerEngines.com

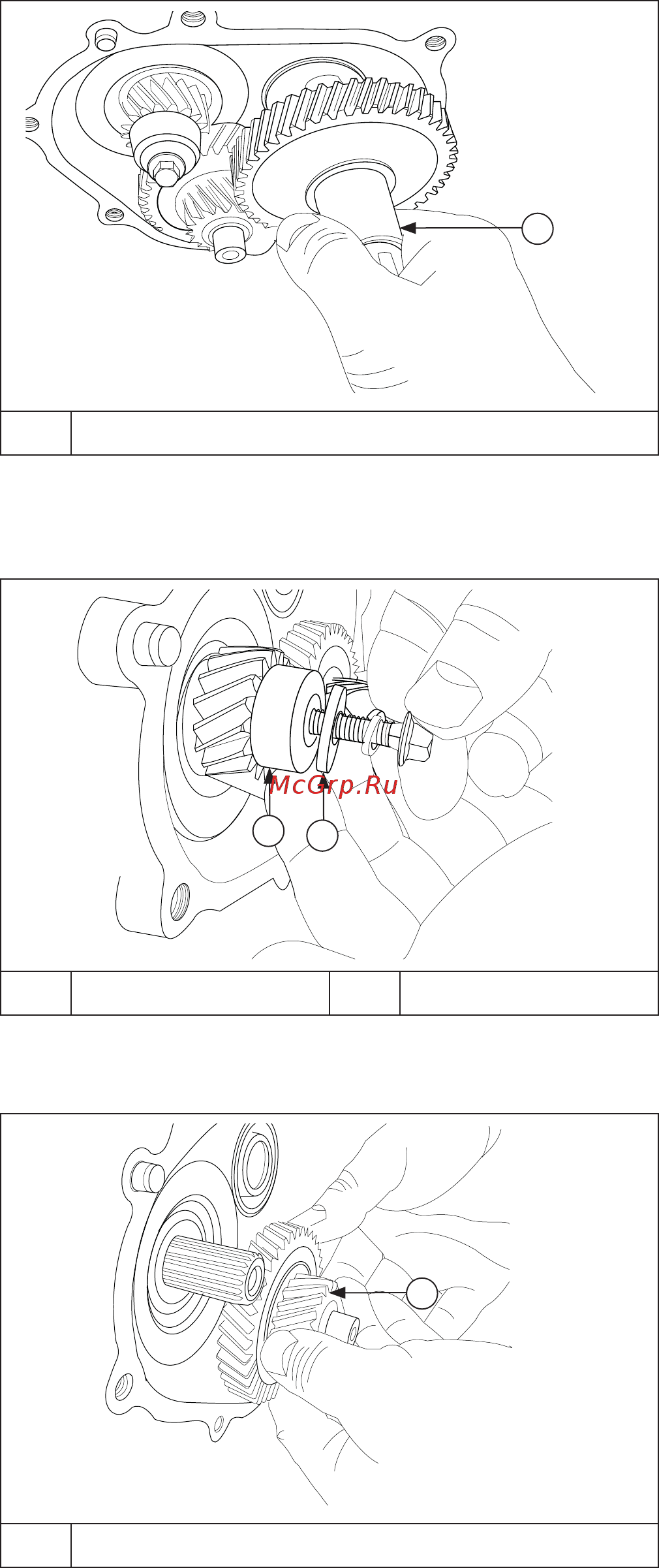

5. Remove PTO shaft from bearing in closure plate.

D PTO Shaft

6. Remove screw, ﬂ at washer and lock washer

securing drive gear to PTO shaft. Slide gear off of

PTO shaft splines.

H Flat Washer I Drive Gear

7. Remove countershaft gear assembly from closure

plate.

J Countershaft Gear Assembly

Inspection

Remove all gaskets and clean all gasket surfaces. Do not

nick or damage surfaces. Clean and inspect condition of

all gears and teeth for any abnormal wear or damage.

Replace as necessary. Rotate bearings and check for any

roughness. Inspect bearing surfaces for any damage or

irregularities. Replace as necessary.

Reassembly

NOTE: Use new gaskets and outer seal when

assembling. Lightly lubricate lip of seal with oil.

1. Install countershaft gear assembly in closure plate.

2. Secure drive gear to PTO shaft with screw, ﬂ at

washer and lock washer. Torque screw to 24.4 N·m

(216 in. lb.).

3. Install PTO shaft into bearing in closure plate.

4. Install new reduction cover gasket with reduction

cover to closure plate. Secure with screws and

torque to 24.4 N·m (216 in. lb.).

5. Install key into keyway of PTO shaft.

6. Reﬁ ll engine oil as outlined in Change Oil (see

Lubrication System).
