Kohler Command PRO CH260 [58/100] Gear reduction system

Gear Reduction System

KohlerEngines.com 17 690 01 Rev. J

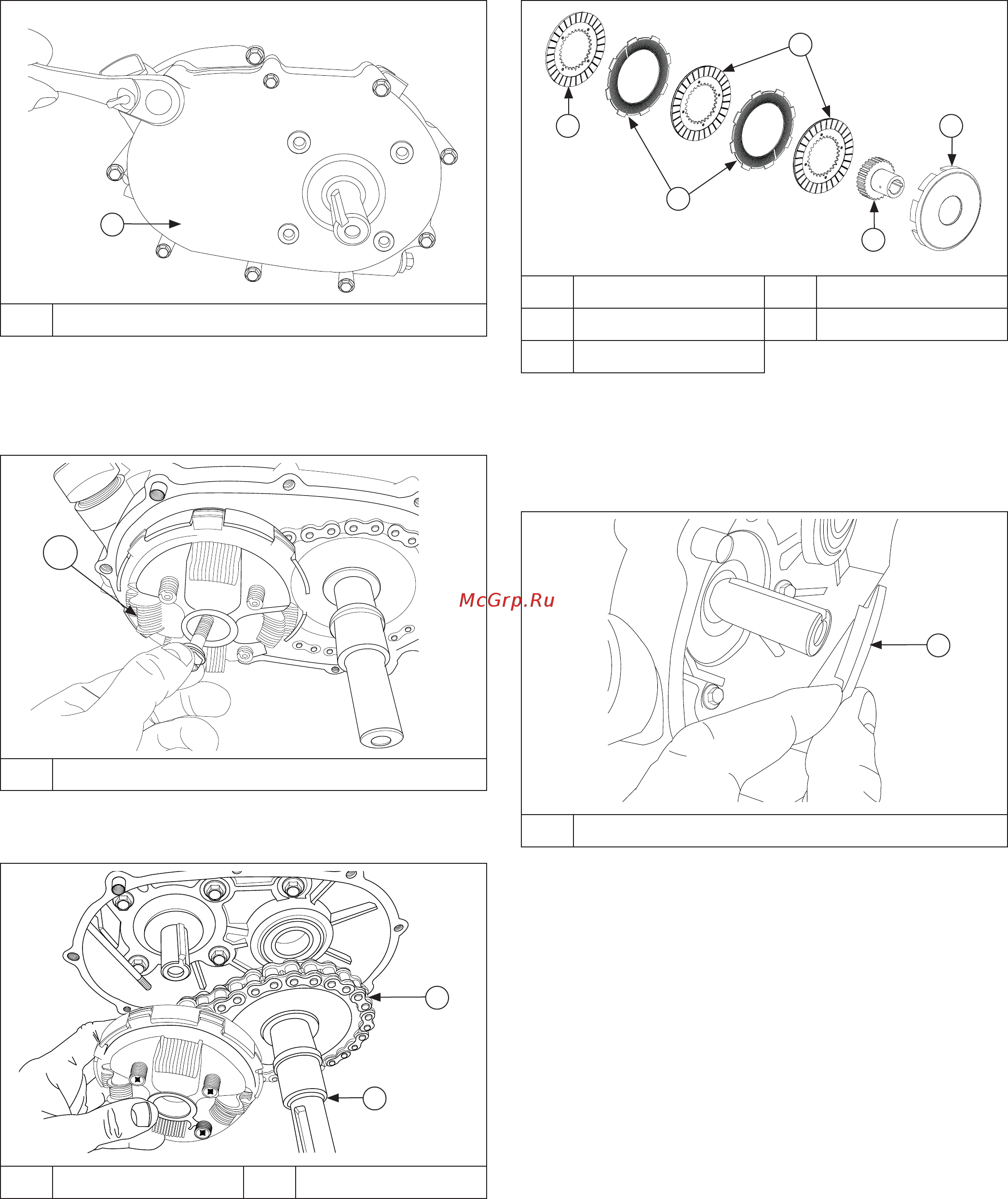

3. Remove screws securing reduction cover to

reduction case.

C Reduction Cover

4. Remove reduction cover and gasket. Ensure two

dowel pins remain in place.

5. Remove screw and lock washer securing clutch

assembly to crankshaft.

AA Clutch Assembly

6. Carefully remove clutch assembly, chain, and PTO

shaft with spring washer from unit as an assembly.

E PTO Shaft F Chain

7. Separate clutch assembly components. Note order

of disassembly.

N Pressure Plate O Clutch Plate

P Friction Disc Q Clutch Center Gear

R Clutch Cup

8. Disassembly of pressure plate assembly is not

recommended. If damage is found, replace as an

assembly.

9. Remove key and thrust washer from PTO shaft.

Note that smaller shoulder faces towards engine.

U Thrust Washer
