Kohler Command PRO CH260 [46/100] Electrical system
![Kohler Command PRO CH440 [46/100] Electrical system](/views2/1597218/page46/bg2e.png)
46
Electrical System
KohlerEngines.com 17 690 01 Rev. J

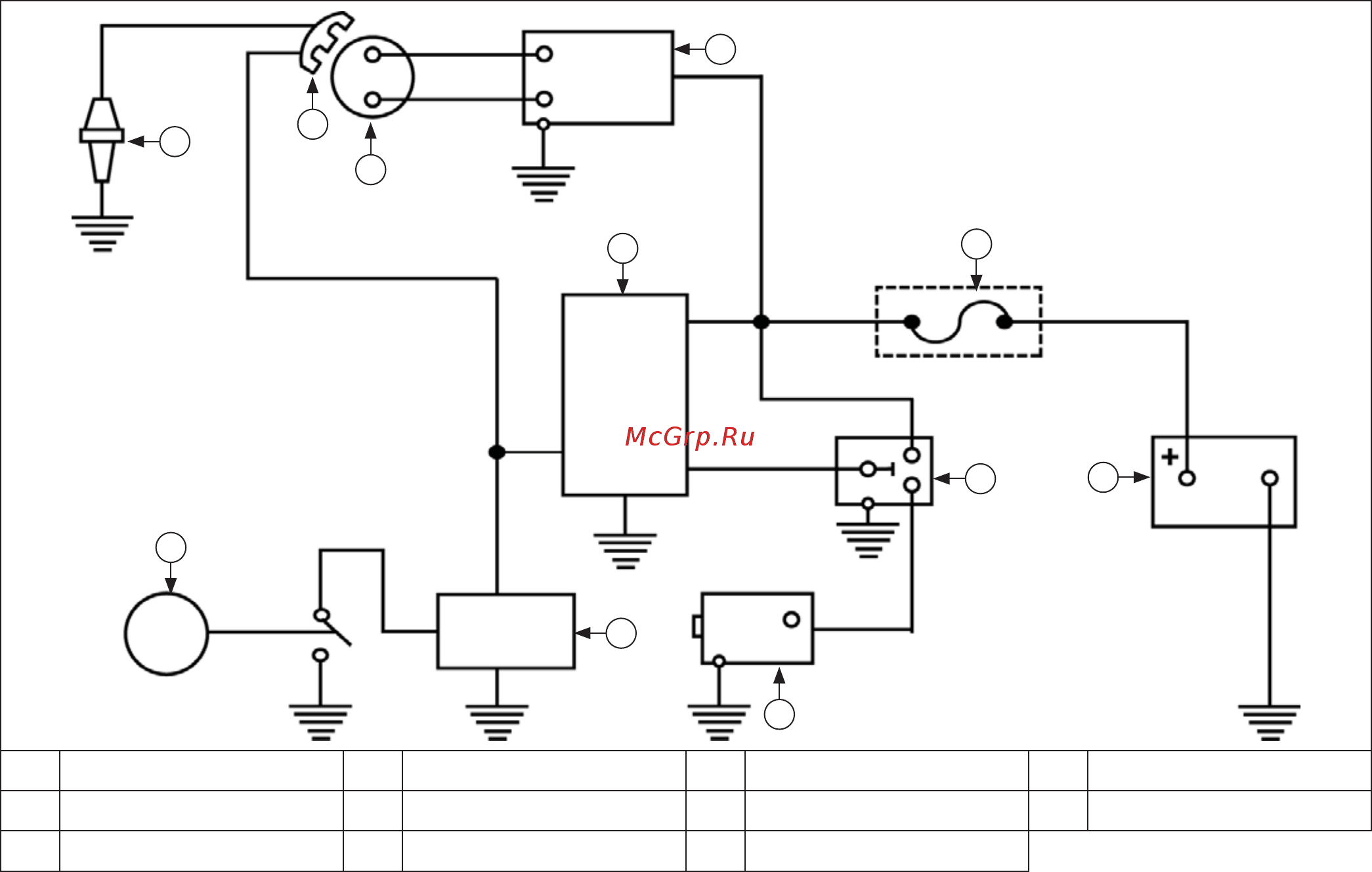

Wiring Diagram-10/18 Amp Charging System, with Rectifi er-Regulator
A
I
F
D
G
J
E
B
C
H
K
A Rectifi er-Regulator B Stator C Ignition Module D Spark Plug
E Oil Float Switch F Oil Control Module G Key Switch H Starter Motor
I Relay J Battery Fuse K 12 Volt Battery
