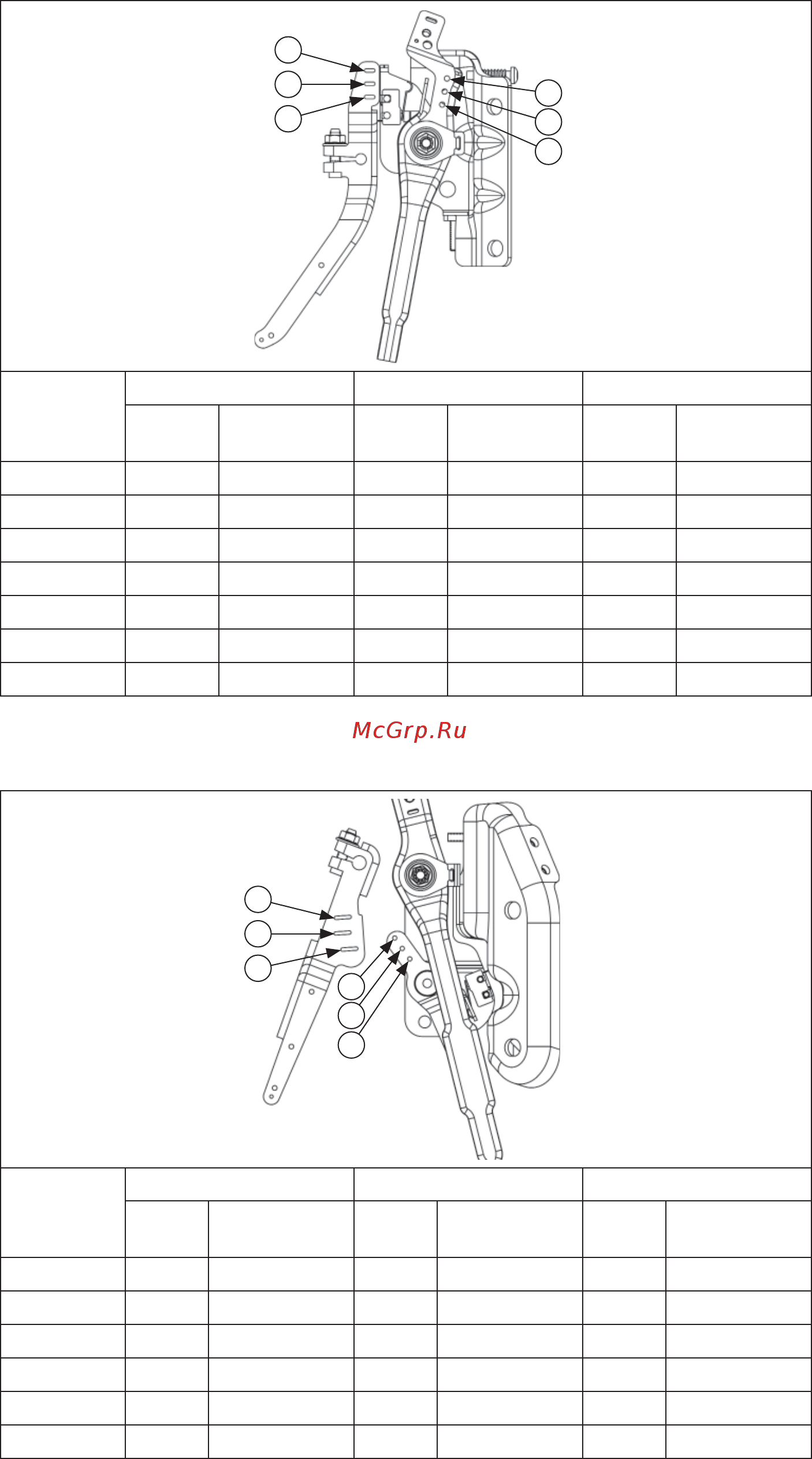

CH260/CH270 Governor Lever Hole Position/RPM Chart
3
1
2
A
B
C
Engine
Speed
RPM
5-8% Droop 5-10% Droop 8-12% Droop
Spring
Color
Hole
Combination
Spring
Color
Hole
Combination
Spring
Color
Hole
Combination
2800-3000 Yellow #1-B
3001-3200 Green #3-C Black #3-C Yellow #1-A
3201-3400 Yellow #2-A
3401-3600 Red #2-A
3601-3800 Yellow #2-A White #3-A
3601-3800 Black #3-A
3801-4000 Red #3-A
CH395 Governor Lever Hole Position/RPM Chart
1
3
2
A
B
C
Engine
Speed
RPM
3-8% Droop 6-10% Droop 7-12% Droop
Spring
Color
Hole
Combination
Spring
Color
Hole
Combination
Spring
Color
Hole
Combination
2800-3000 Yellow #1-B
3001-3200 Black #1-B Yellow #1-B
3201-3400 Yellow #1-B
3401-3600 Yellow #2-B
3601-3800 Purple #1-A Red #1-B Yellow #2-B
3801-4000 Yellow #2-B
