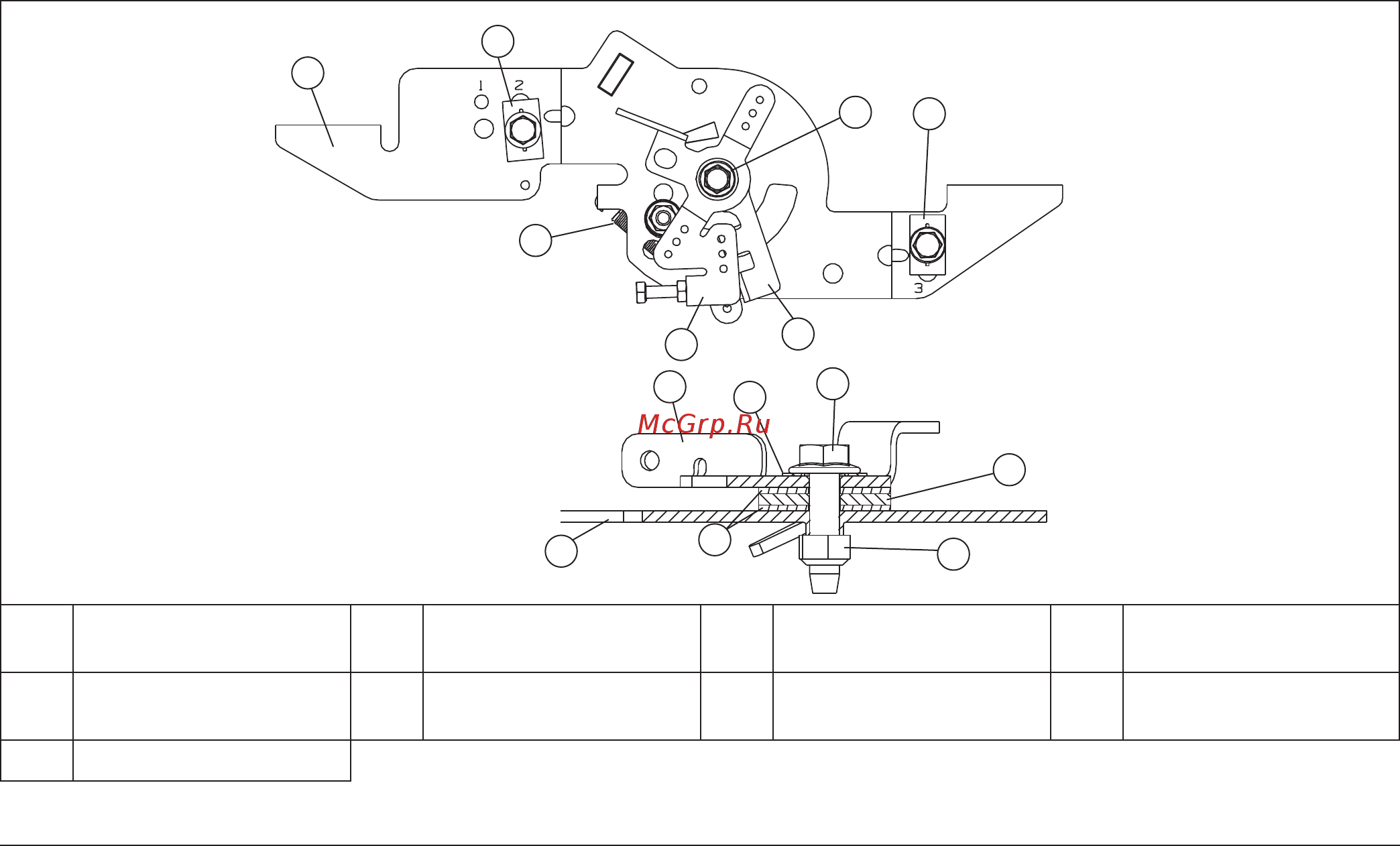

External Governor Control (ECV EFI)
D
A
B
C
B
I
F
F
D
E
C
A
G
H
A
Speed Control
Bracket
B Cable Clamp C Screw D
Throttle Actuator
Lever (bottom)
E Spring Washer F
Throttle Control
Lever (top)
G Flat Washer H Nut
I Return Spring
Remove External Governor Controls (Mechanical Governor)
1. Disconnect governor spring attached to governor lever. Note hole location for reassembly.
2. Disconnect throttle linkage spring. Remove throttle linkage bushing and throttle linkage from governor lever.
3. Loosen nut and remove governor lever from cross shaft.
Disassembly/Inspection and Service
110
24 690 02 Rev. MKohlerEngines.com
