Reassembly
14124 690 02 Rev. M KohlerEngines.com
NOTE: Some applications may have two in-line fuel
fi lters. In those applications, connect in-line
51-75 micron mesh fuel fi lter and hose to inlet
barb of lift fuel pump and secure with a spring
clamp. In-line 10 micron EFI paper fuel fi lter and
hose must be connected to outlet barb of lift fuel
pump and secured with a spring clamp.
NOTE: Ensure all parts are clean, undamaged and free
of debris and make sure electrical connector has
seal in place.
NOTE: Fuel pump module pins should be coated with a
thin layer of electrical grease to prevent fretting
and corrosion and may be reapplied if fuel pump
module is being reused.
1. Install lift fuel pump and lines as an assembly.
Connect pulse line to crankcase vacuum fi tting.
2. Install lift fuel pump to bracket on housing using
screws. Torque M6 screws to 7.3 N·m (68 in. lb.) in
new holes or 6.2 N·m (55 in. lb.) in used holes.
3. Connect in-line 10 micron EFI fuel fi lter and hose to
inlet barb of lift fuel pump and secure with spring
clamp.
4. Install fuel pump module baffl e to crankcase using
screws. Torque screws to 11.9 N·m (105 in. lb.).
5. Push high pressure fuel line connector onto fuel
pump module fi tting.
6. If Oetiker clamp was cut to remove inlet fuel line,
slide a new Oetiker clamp onto fuel line and connect
fuel line. Only use an Oetiker clamp pliers to crimp
Oetiker clamps. Oetiker clamp crimp must point up,
away from top of fuel pump module and abrasion
sleeve must be positioned over Oetiker clamp.
7. Connect electrical connector to top of fuel pump
module. Ensure grey locking tab is pulled out before
connecting. Push connector onto terminal until a
click is heard, then push in grey locking tab to lock
connector.
8. Install fuel pump module to baffl e using screws.
Torque screws to 9.2 N·m (81 in. lb.).

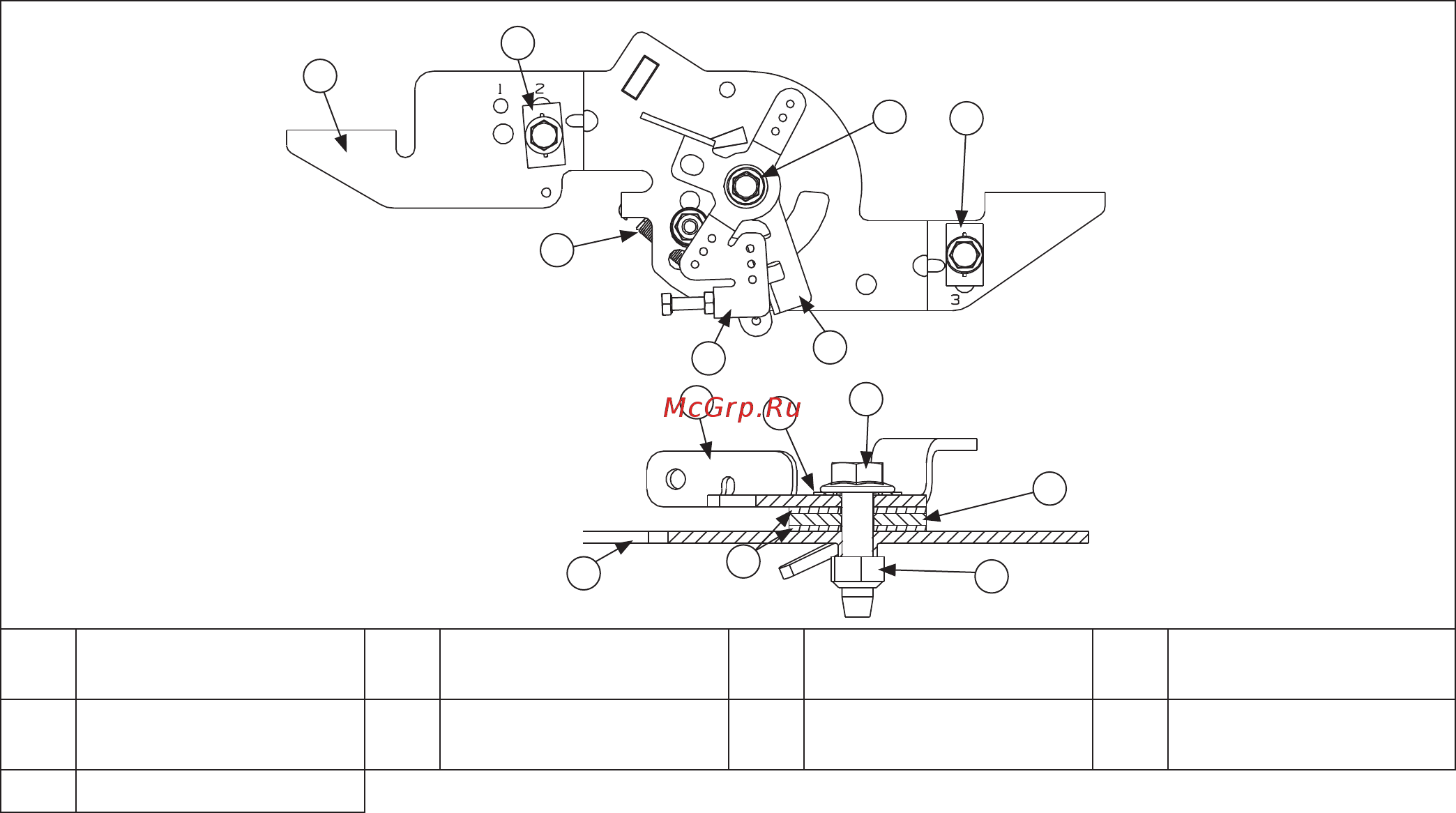

Install External Governor Controls (ECV EFI) (Mechanical Governor Only)
D
A
B
C
B
I
F
F
D
E
C
A
G
H
A
Speed Control
Bracket
B Cable Clamp C Screw D
Throttle Actuator
Lever (bottom)
E Spring Washer F
Throttle Control
Lever (top)
G Flat Washer H Nut
I Return Spring
1. Install governor lever onto governor cross shaft.
2. Make sure throttle linkage, linkage spring, black linkage bushing are connected to governor lever and to throttle
lever on throttle body.
