Ricoh Aficio BP20 [129/172] In the optional tray2

Ricoh Aficio BP20/BP20N [129/172] In the optional tray2

OLVING

PROBLEMS

6.10

In the Optional Tray2

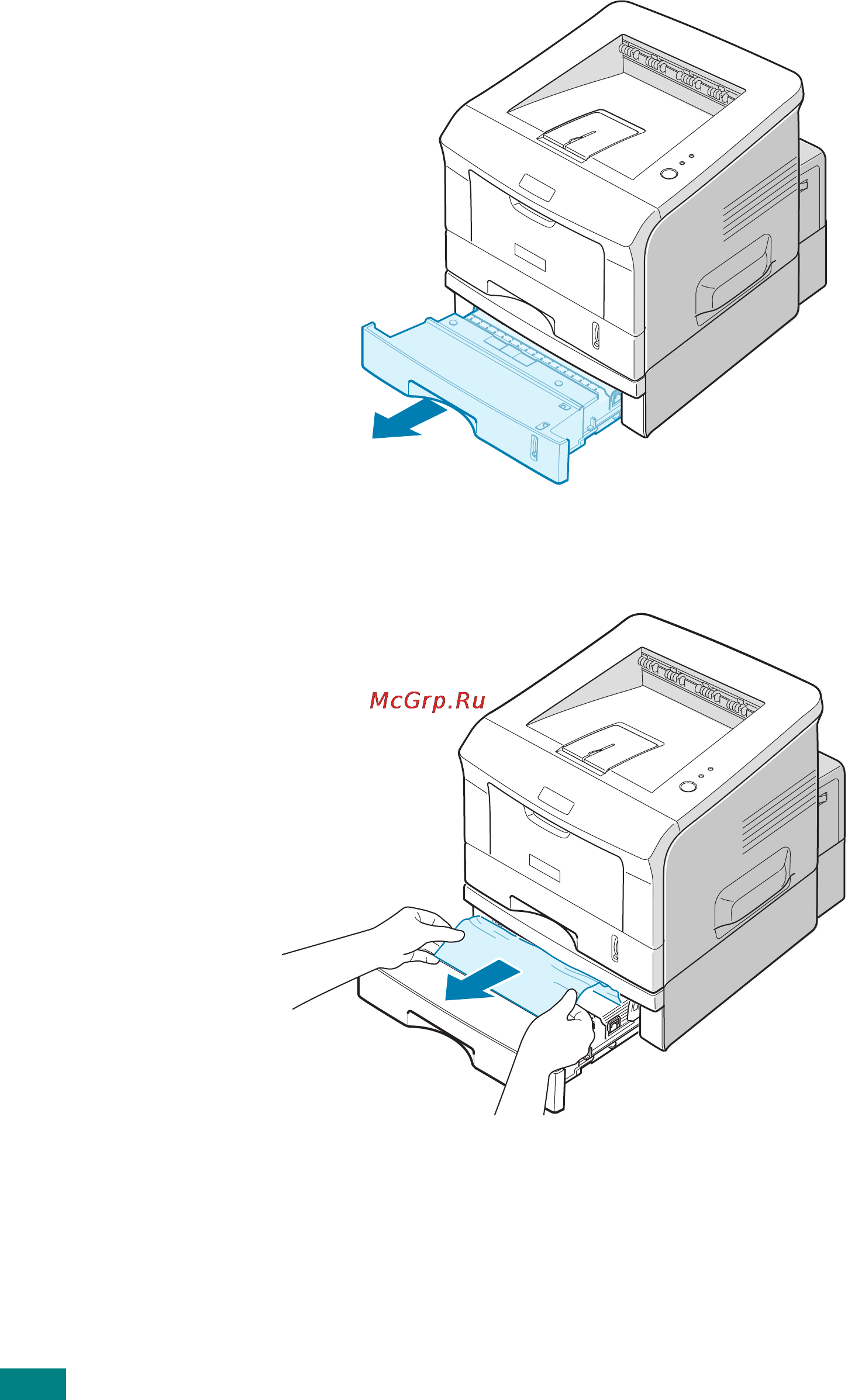

Pull the optional Tray2 out of the printer.

If you see the jammed paper, remove the paper from the

tray.
