RINTING

ROM

DOS A

PPLICATIONS

A.8

Test Tab

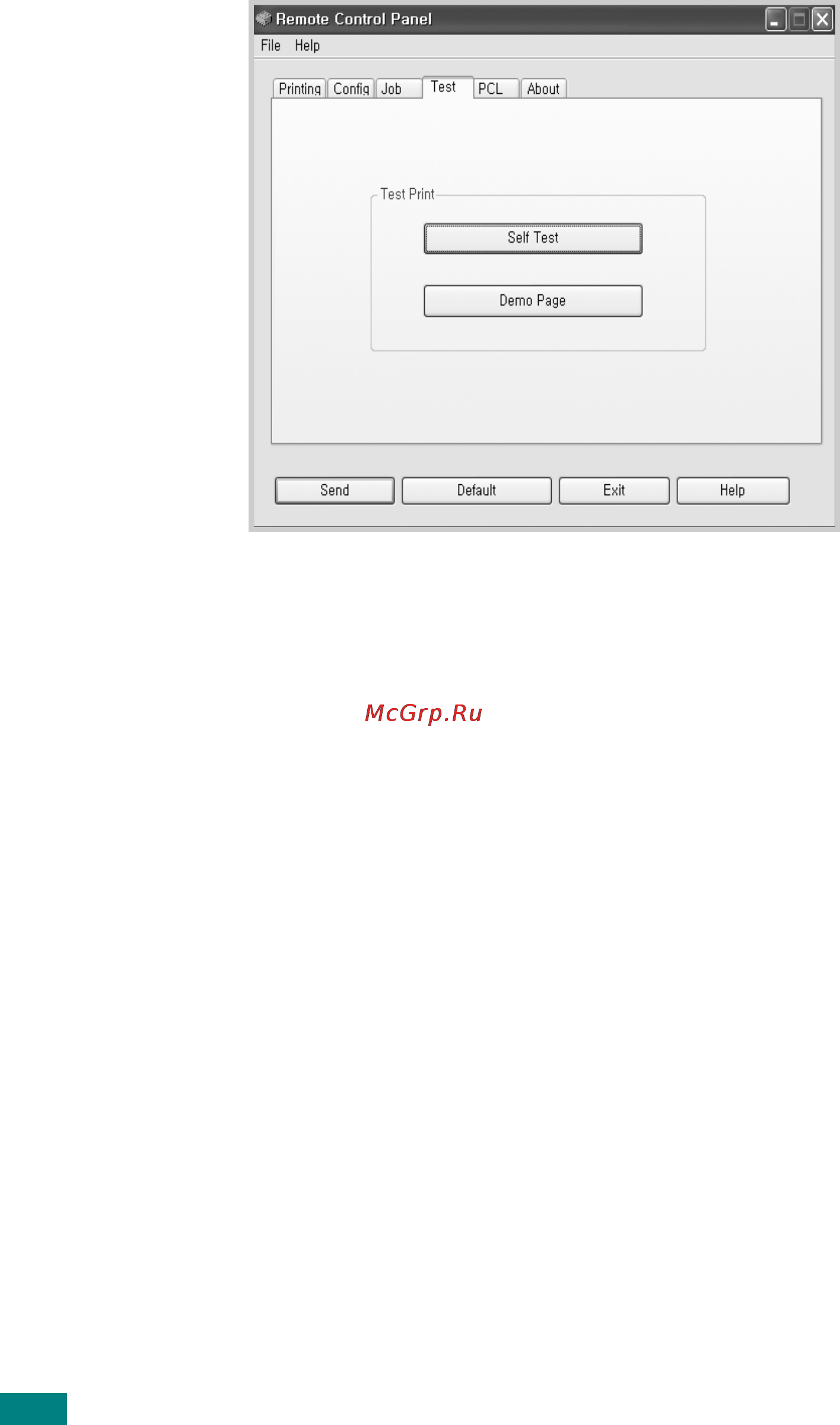

This tab allows you to print a resident page to test your printer’s

performance.

•

Self Test

prints a configuration sheet. A list of the user

default settings and the amount of printer memory available

prints.

•

Demo Page

prints a demonstration page. It shows the

printer features and specifications.
