Ricoh Aficio BP20 [156/172] Reconnect the power cord and printer cable and turn the printer on

NSTALLING

RINTER

PTIONS

B.5

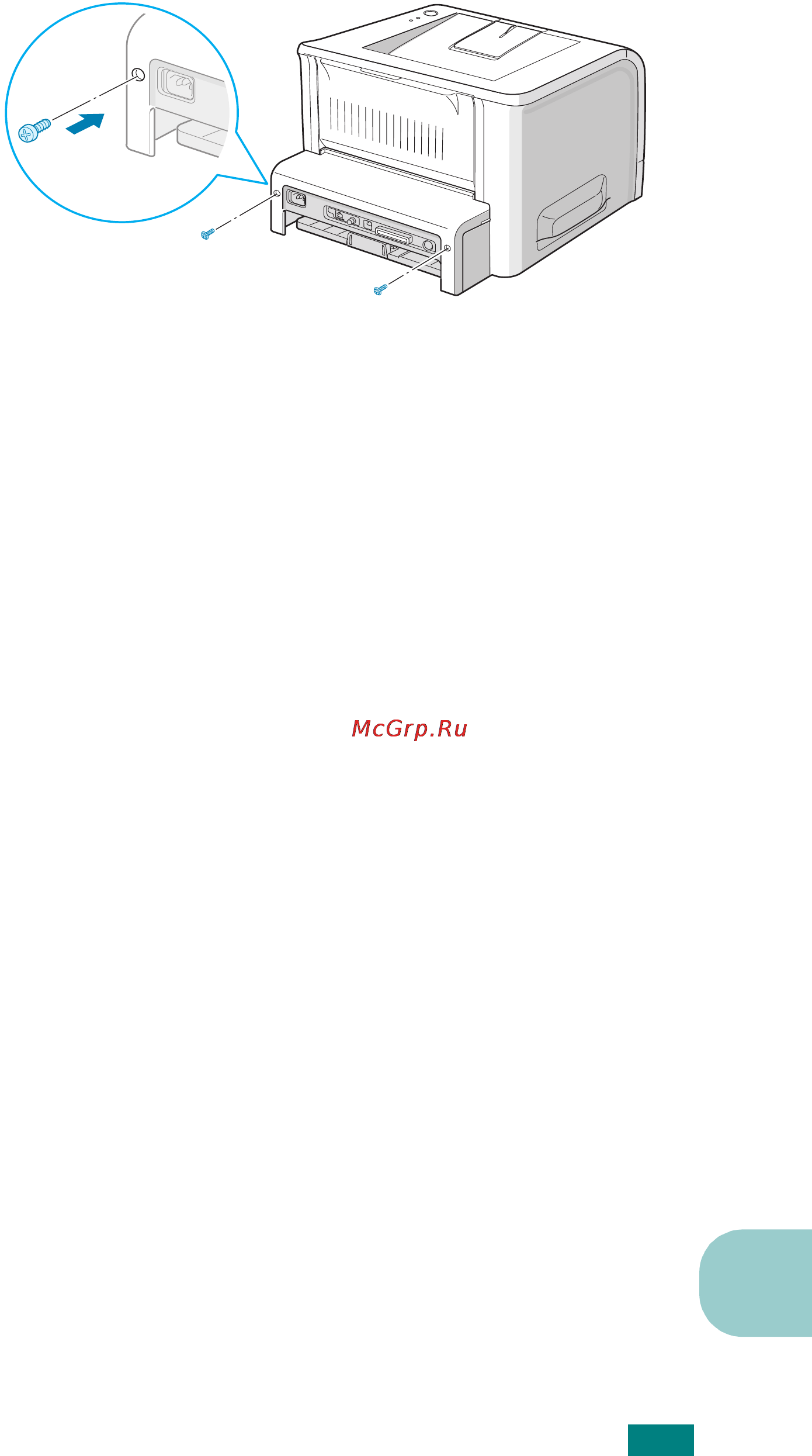

Tighten the two screws.

Reconnect the power cord and printer cable, and turn the

printer on.
