Инструкция по эксплуатации Страница: 25

Ricoh Aficio BP20 [25/172] Close the front cover make sure that the cover is securely closed

2.6

ETTING

OUR

RINTER

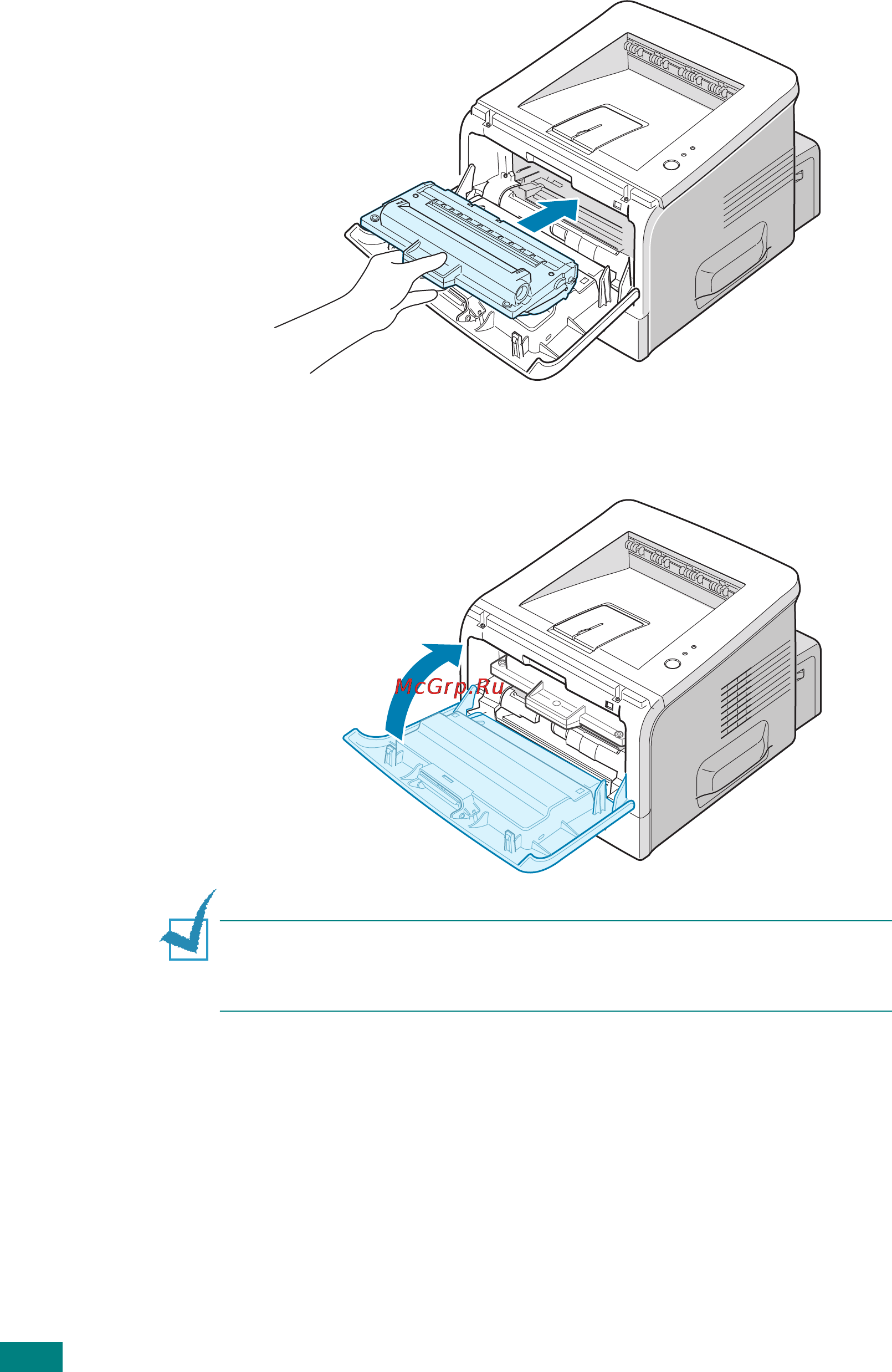

Grasp the handle and insert the cartridge into the printer

until it snaps into place.

Close the front cover. Make sure that the cover is securely

closed.

OTE

When printing text at 5% coverage, you can expect a toner

cartridge life of approximately 5,000 pages.(3,500 pages for the

toner cartridge that is shipped with the machine)
