Ricoh Aficio BP20 [66/172] Manual feed

SING

RINT

ATERIALS

3.13

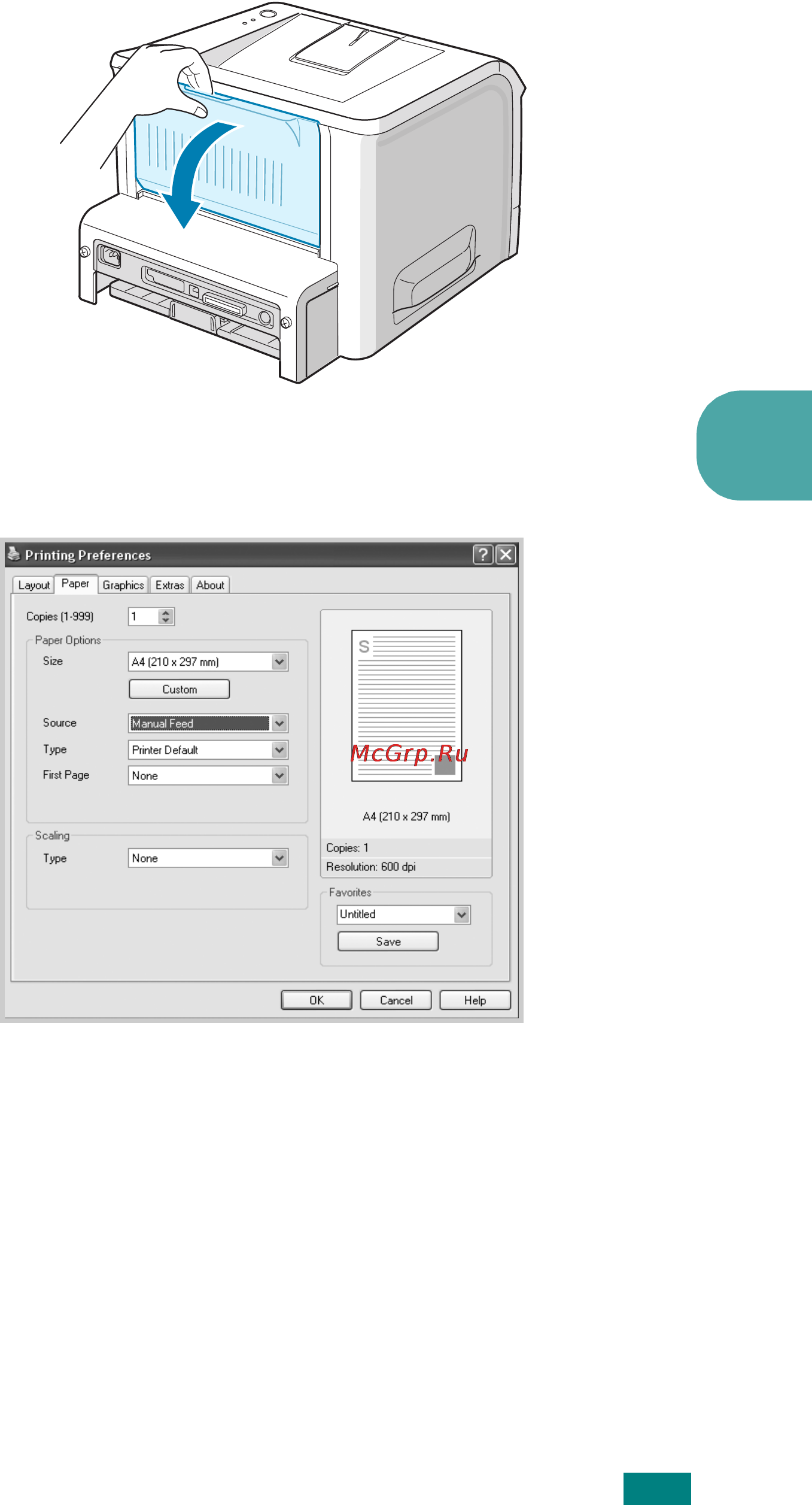

Open the rear output tray.

When you print a document, you must select

Manual Feed

for

Source

from the software application, and then select

the correct paper size and type.

Press the

Cancel

button on the printer to start feeding.

Printing is started.

If you are printing multiple pages, load the next sheet after

the first page prints out, and press the

Cancel

button.

Repeat this step for every page to be printed.
