Ricoh Aficio BP20 [95/172] And print the document you can complete the poster by pasting the sheets together

RINTING

ASKS

4.18

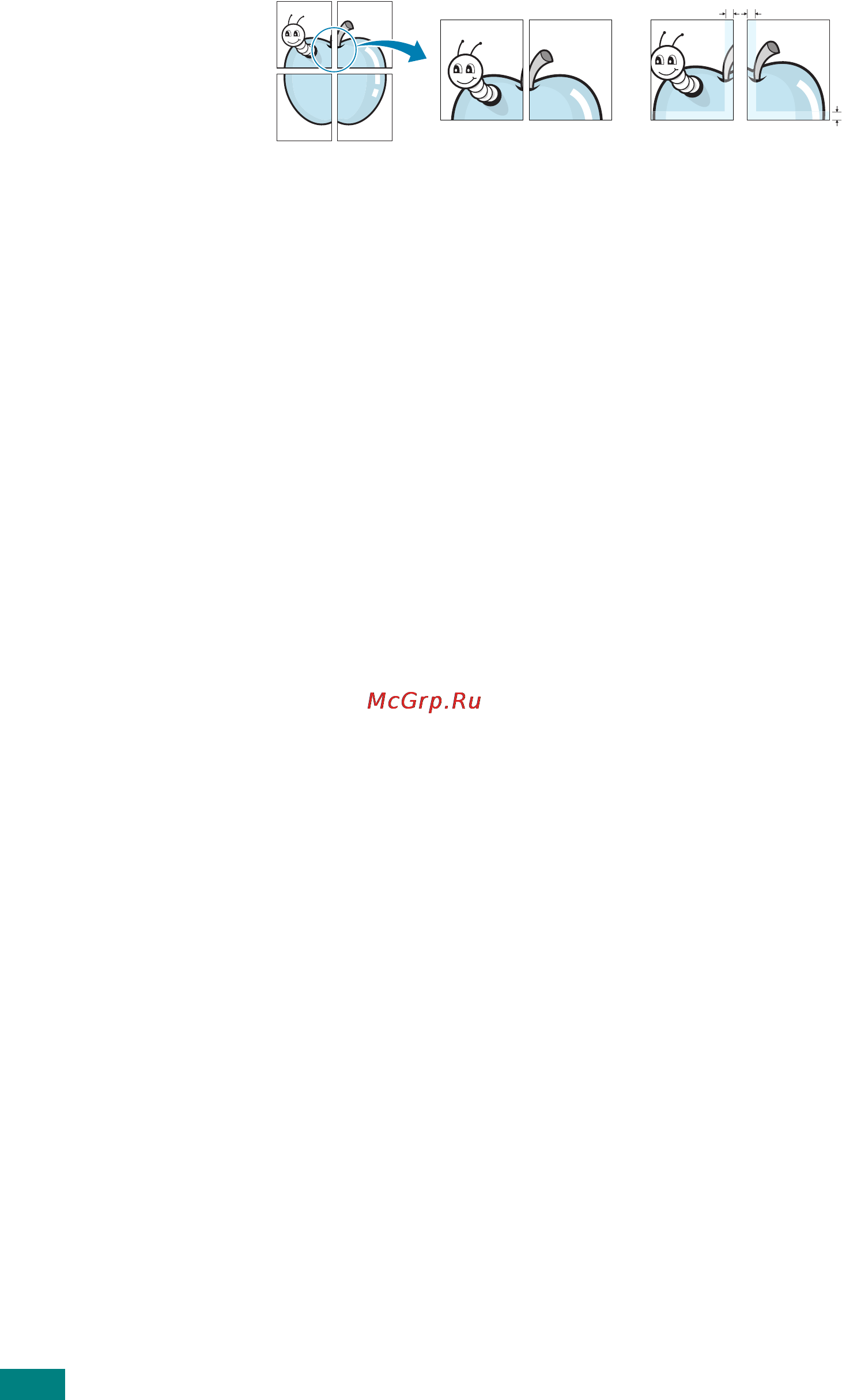

Specify an overlap in millimeters or inches to make it easier

to reconstruct the resulting poster.

Click the

Paper

tab and select the paper source, size, and

type.

Click

and print the document. You can complete the

poster by pasting the sheets together.
