34
Paper
Loading Paper
Load paper into the paper tray.
Normally, load paper into tray 1. Tray 2 (optional) can be used if installed.
z
Load paper with the paper grain parallel to the feed direction.
z
p.181 "Printing on Thick Paper"
Loading Paper into Tray 1
Follow the procedure below to load paper into tray 1.
A4/Letter size paper is loaded here.
Load A4/Letter size paper in orientation.

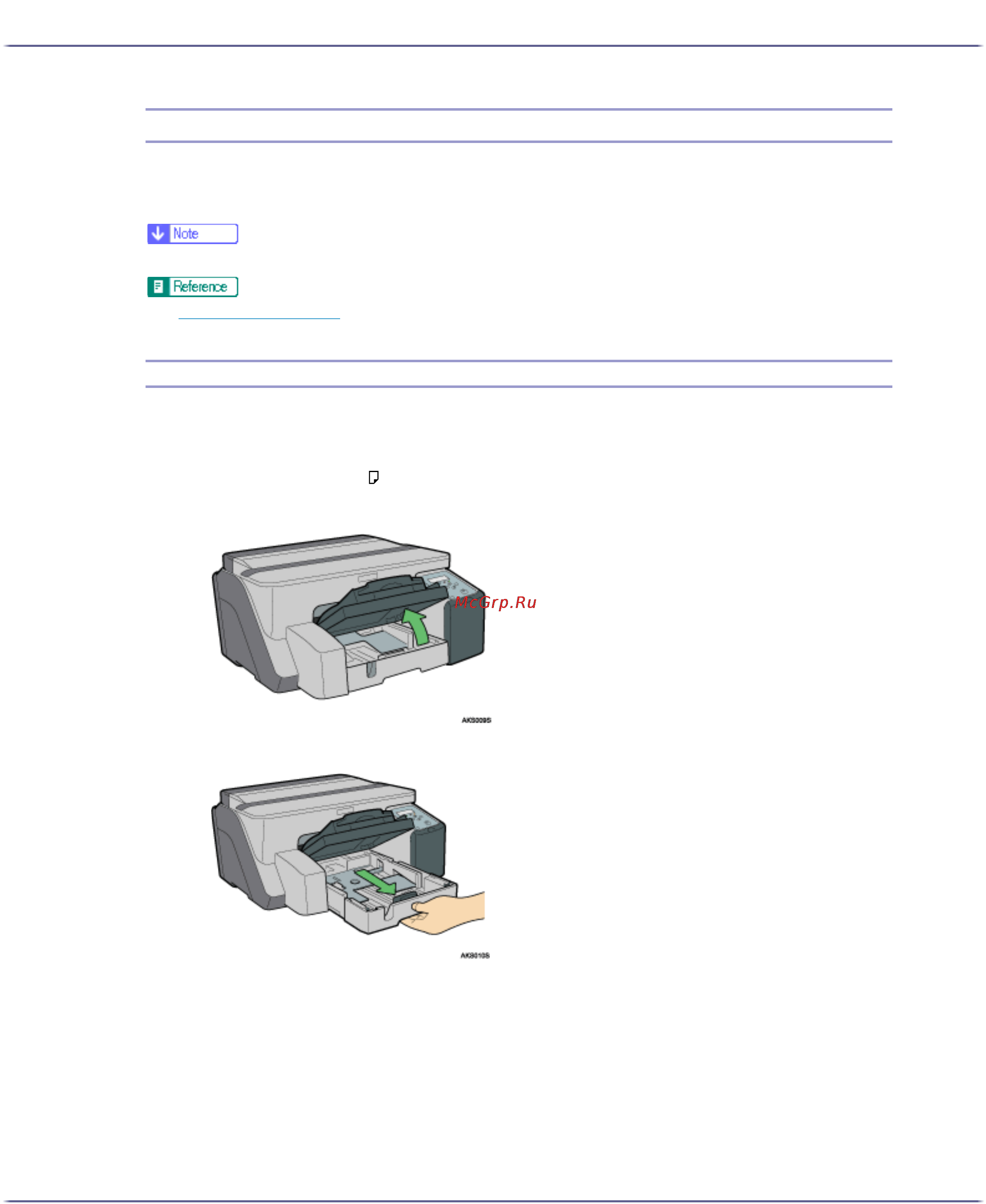

1. Lift the output tray.
2. Hold the Tray 1 grip, pull the tray halfway out, lift it slightly, and then pull it out further.
Pull tray 1 completely out. Take care not to drop it.
