74
Making Printer Settings
Changing the Host Interface Menu
This section gives an example of changing a setting in the Host Interface menu.

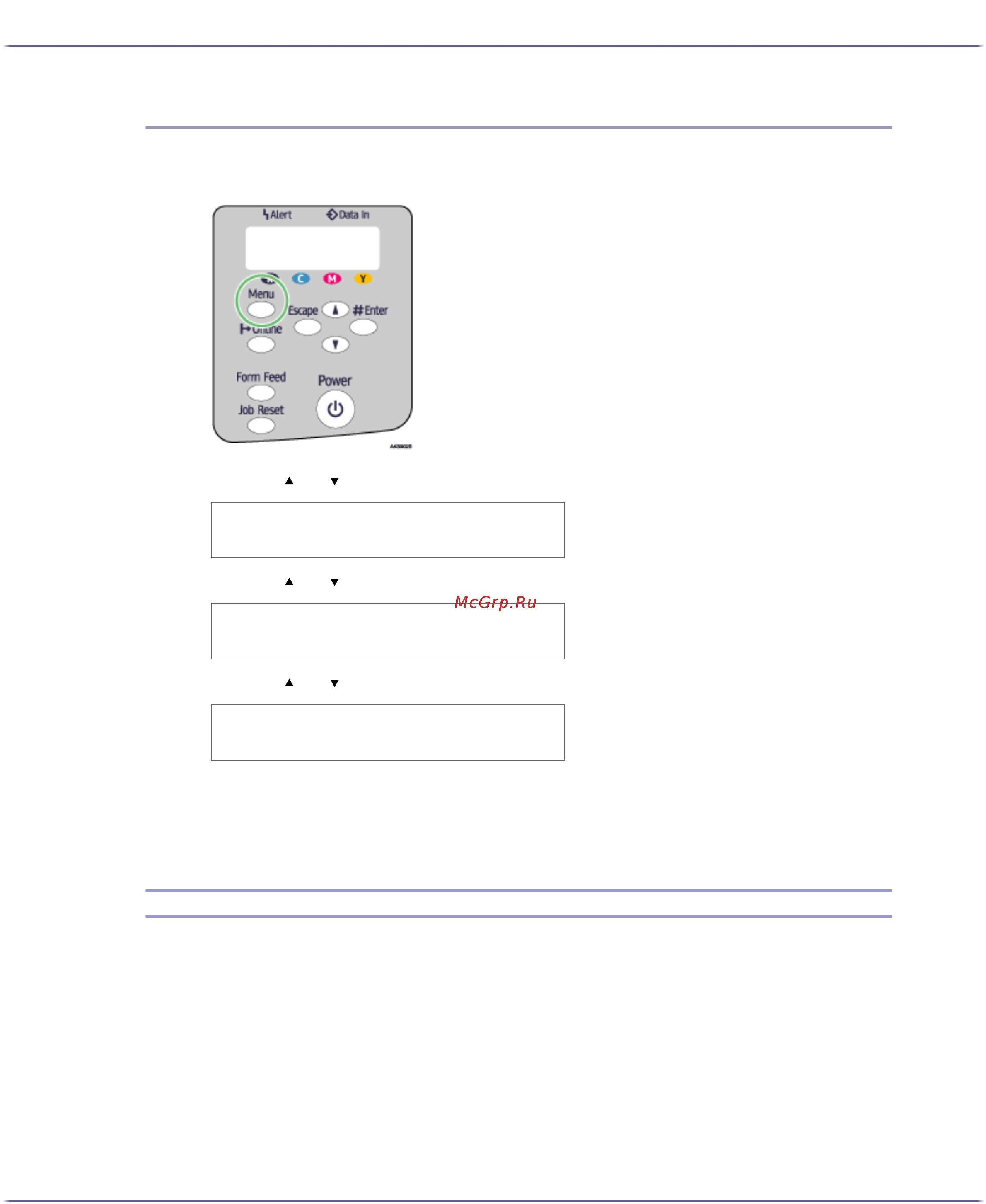

1. Press the [Menu] key.
2. Press the [ ] or [ ] key to display [Host Interface], and then press the [#Enter] key.
3. Press the [ ] or [ ] key to display [I/O Timeout], and then press the [#Enter] key.
4. Press the [ ] or [ ] key to display the [20 seconds], and then press the [#Enter] key.
The [Host Interface] menu appears.
5. Press the [Online] key.
The initial screen appears.
PCL Menu
You can set conditions when using PCL for printing.
Orientation
You can select the page orientation.
z
Portrait
z
Landscape
Default: Portrait
Form Lines
You can specify the number of lines per page between 5 and 128.
Default:
Menu:
Host Interface
Host Interface:
I/O Timeout
I/O Timeout:
20 seconds
