41
Paper
Loading Paper Larger than A4/Letter (Tray2)
Follow the procedure below to use the paper tray extension for paper larger than A4/Letter size, such as Legal/
8
1
/
2
" × 14" size paper.

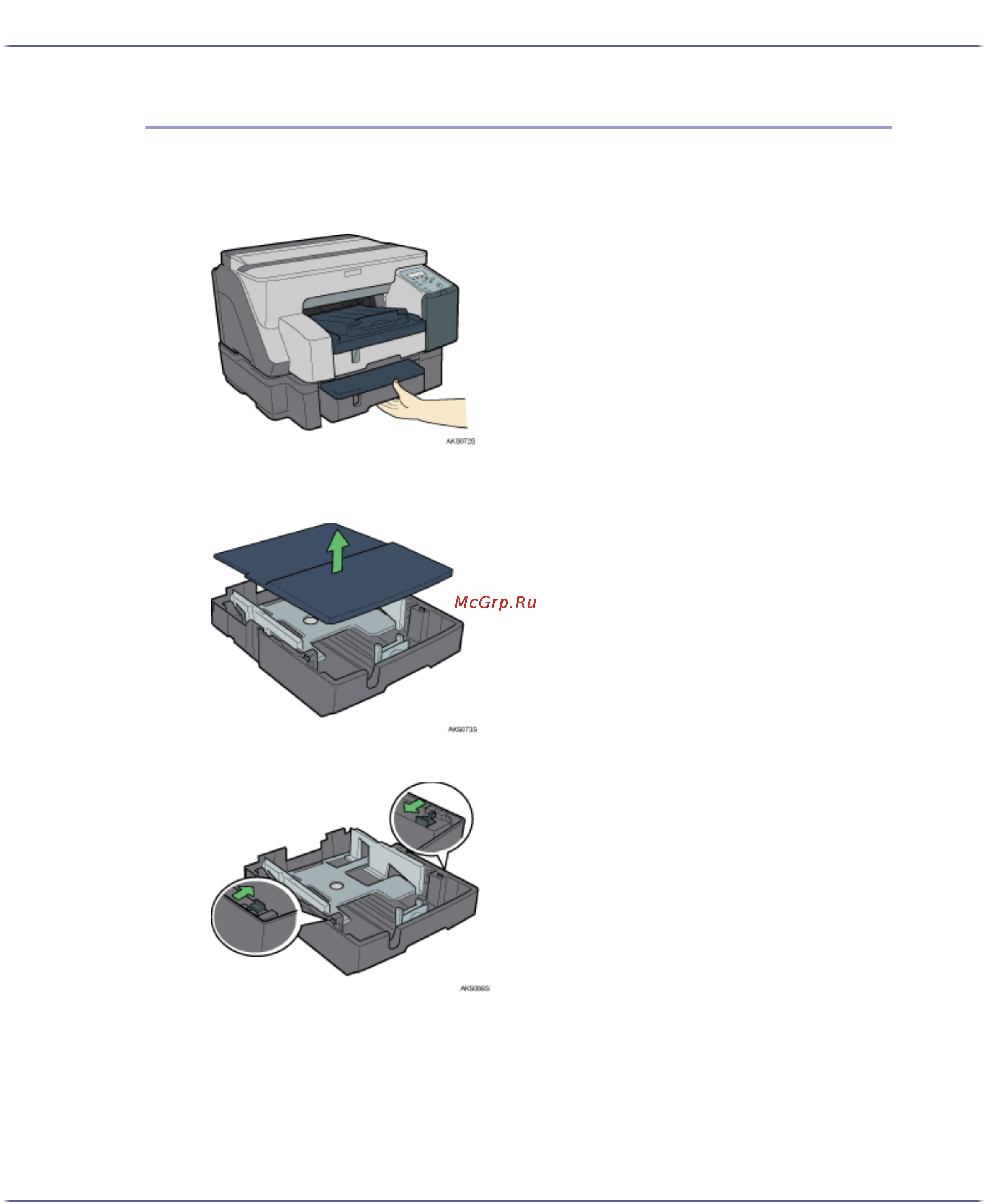

1. Hold the grip on tray 2, lift the tray slightly, and then pull it out.
Pull tray 2 completely out. Take care not to drop it.
2. Lift off the cover.
3. Slide the tabs on both sides of the tray's interior to the unlocked position.
