Ricoh Aficio GX 5050N [39/268] Loading paper into tray 2 optional
![Ricoh Aficio GX 5050N [39/268] Loading paper into tray 2 optional](/views2/1064307/page39/bg27.png)
39
Paper
Loading Paper into Tray 2 (optional)
Follow the procedure below to load paper into tray 2.
You can load plain paper and inkjet plain paper in tray 2.
A4/Letter size paper is loaded here.
Load A4/Letter size paper in orientation.

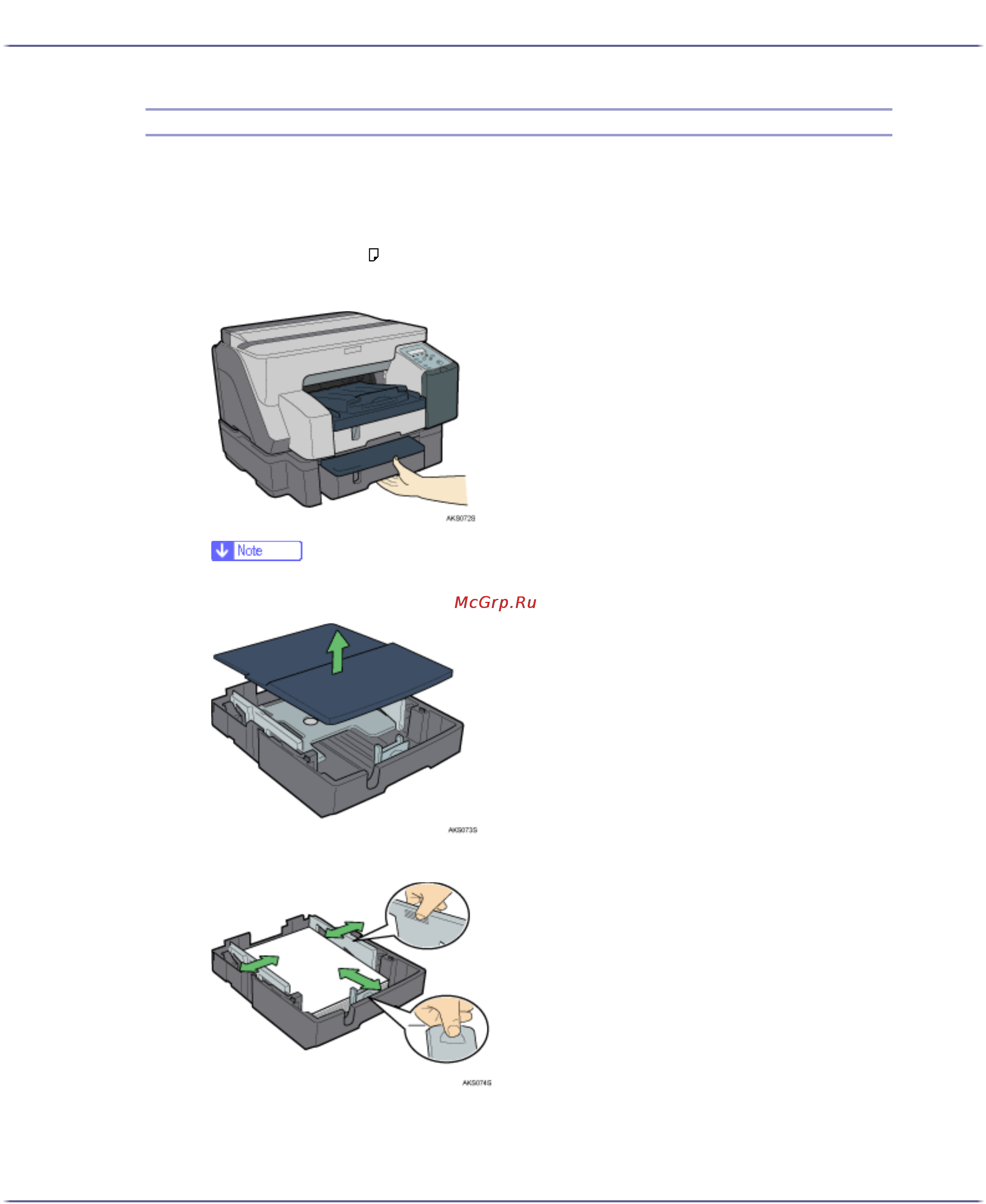

1. Hold the grip on tray 2, lift the tray slightly, and then pull it out.
z
Pull tray 2 completely out. Take care not to drop it.
2. Lift off the cover.
3. Load paper print side down, and then adjust the paper guide to the paper size.
