93
Troubleshooting
5. Lower the output tray.
Printing starts.
Blank paper may be delivered after printing resumes.
z
Make sure to unfold the output tray before printing.
z
p.99 "Removing Paper Jammed around the Guide Board"
z
p.91 "Paper Is Not Fed or Delivered Normally"

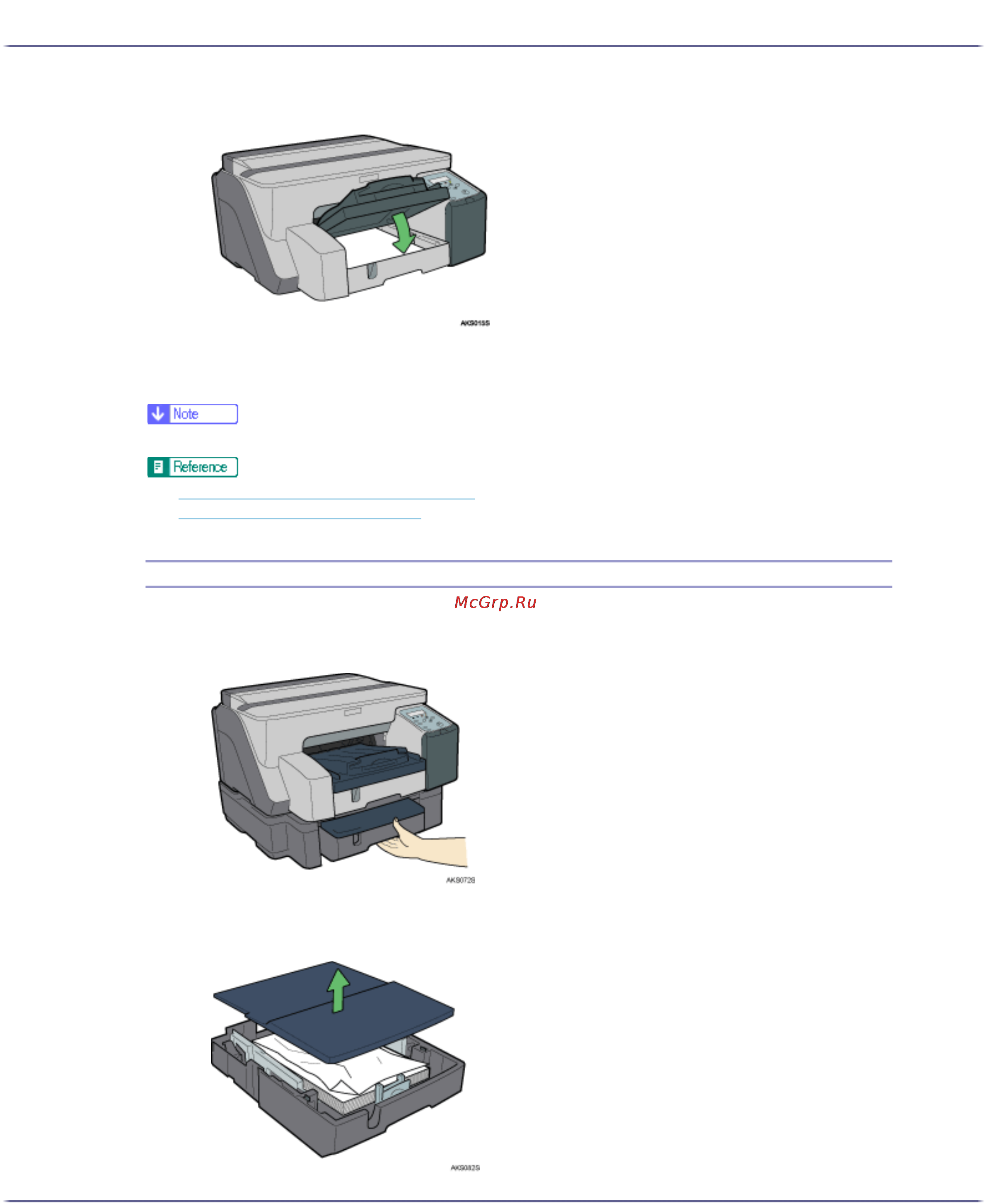

Removing Paper Jammed in the Optional Tray (Tray 2 (Optional))
Follow the procedure below to remove paper jammed in tray 2.
1. Hold the grip on tray 2, lift the tray slightly, and then pull it out.
Pull tray 2 completely out. Take care not to drop it.
2. Lift off the cover.
