Replacing Consumables
4. Check the cartridge status.

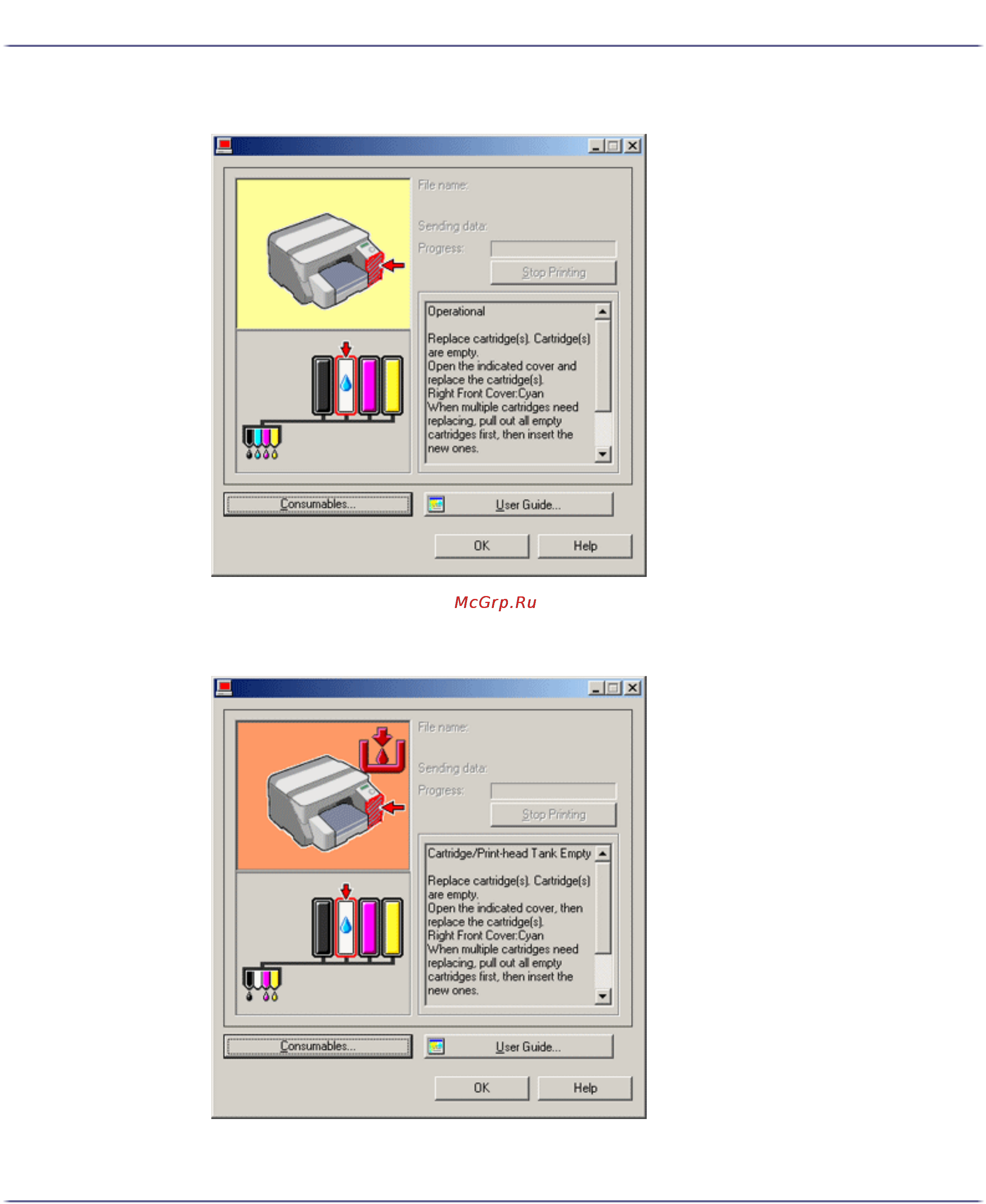

In the illustration above, the cyan Print cartridge is empty.
If the background of the image in the top left corner of dialog box is yellow, the indicated cartridge is
empty. Replace the cartridge.
In this illustration, the cyan ink has completely run out.
