6
614-09954-00
ENglISh
Operating conditions
l This product is an Uninterruptible
Power Supply (UPS) for computers
and their peripherals, television
sets, stereo systems and video
recorders... It must not be used to
supply other electrical equipment
(lighting, heating, household
appliances, etc.).
UPS connections
l Connect the UPS
1
to the
AC-power system via a wall outlet
with an earth connector, using the
attached cord for a UPS with FR/
DIN sockets or with the supply cord
of your computer for a UPS with
IEC sockets (see gure A).
l Plug critical equipment
(computer, monitor, modem,
etc.) into the outlets
6
providing
battery backup power and surge
protection (see gure B), taking
care not to exceed the rated current
indicated in amperes.
l Other devices (printer, scanner,
fax, etc.) can be connect to the
ltered outlets
5
that provide
surge protection (see gure B). The
ltered outlets are not backed up
by battery power in the event of a
power outage.
l Optional Internet modem /
Network connection:
A modem or Ethernet data line
can be protected against surges by
connecting it via the UPS. Connect
the existing device cable between
the wall outlet and the UPS, and
use a similar cable between the
UPS and the device, as indicated in
gure C (cable not supplied).
l Optional USB connection:
The UPS devices can be connected
to the computer using the USB
cable
4
supplied.
l Download Personnal
Solution-Pac software at
powerquality.eaton.com.
l Register warranty at
powerquality.eaton.com.
l Battery charge: The UPS
charges the battery as soon as it is
connected to the AC outlet, whether
button
8
is pressed or not. When
used for the rst time, the battery
will only provide its maximum
autonomy after it has been charged
for 8 hours. It is recommended that
the UPS be permanently connected
to the AC power supply to ensure
the best possible autonomy.
l Switching-on the UPS: press
button
8
for about 1 second.
l Filtered outlets
5
without
battery backup: Equipment
connected to these outlets is
supplied as soon as the AC cord is
plugged in. They are not affected by
button
8
.
l Battery backup outlets
6
:
Equipment connected to these
outlets is supplied as soon as
button
8
turns green (see gure
E). These outlets can be turned on
even if the UPS is not connected to
AC power (button
8
ashes).
l AC-power disturbance: If AC
power is disturbed or fails, the UPS
continues to operate on battery
power. Button
8
ashes green.
In normal mode, the audio alarm
beeps every ve seconds, then
every two seconds when the end of
battery backup time is near.
l If the power outage lasts longer
than the battery backup time, the
UPS shuts down and automatically
restarts when power is restored.
Following a complete discharge, a
few hours are required to recharge
the battery back to full backup time.
l To save battery power, it is
possible to press button
8
to cut
the supply of power to the devices
connected to the battery backup
outlets.
l Lightning protection: All outlets,
whether backed up or simply
ltered, include surge protection,
whatever the position of button
8
.
l Shutdown of the battery backup
outlets
6
: Press button
8
for
more than two seconds.
Battery disposal and safety
l Caution. Battery service life is
reduced by 50 % for every ten
degrees above 25 °C.
l The battery elements must be
replaced exclusively by qualified
personnel (risk of electrocution),
with new elements approved by
EATON to ensure correct operation
of the UPS.
l The battery must be disposed
of in accordance with applicable
regulations. To remove the battery
elements, shut down the UPS
(button
8
OFF), remove the power
cord and proceed as indicated in
page 4 "Battery change".
65
9
8
7

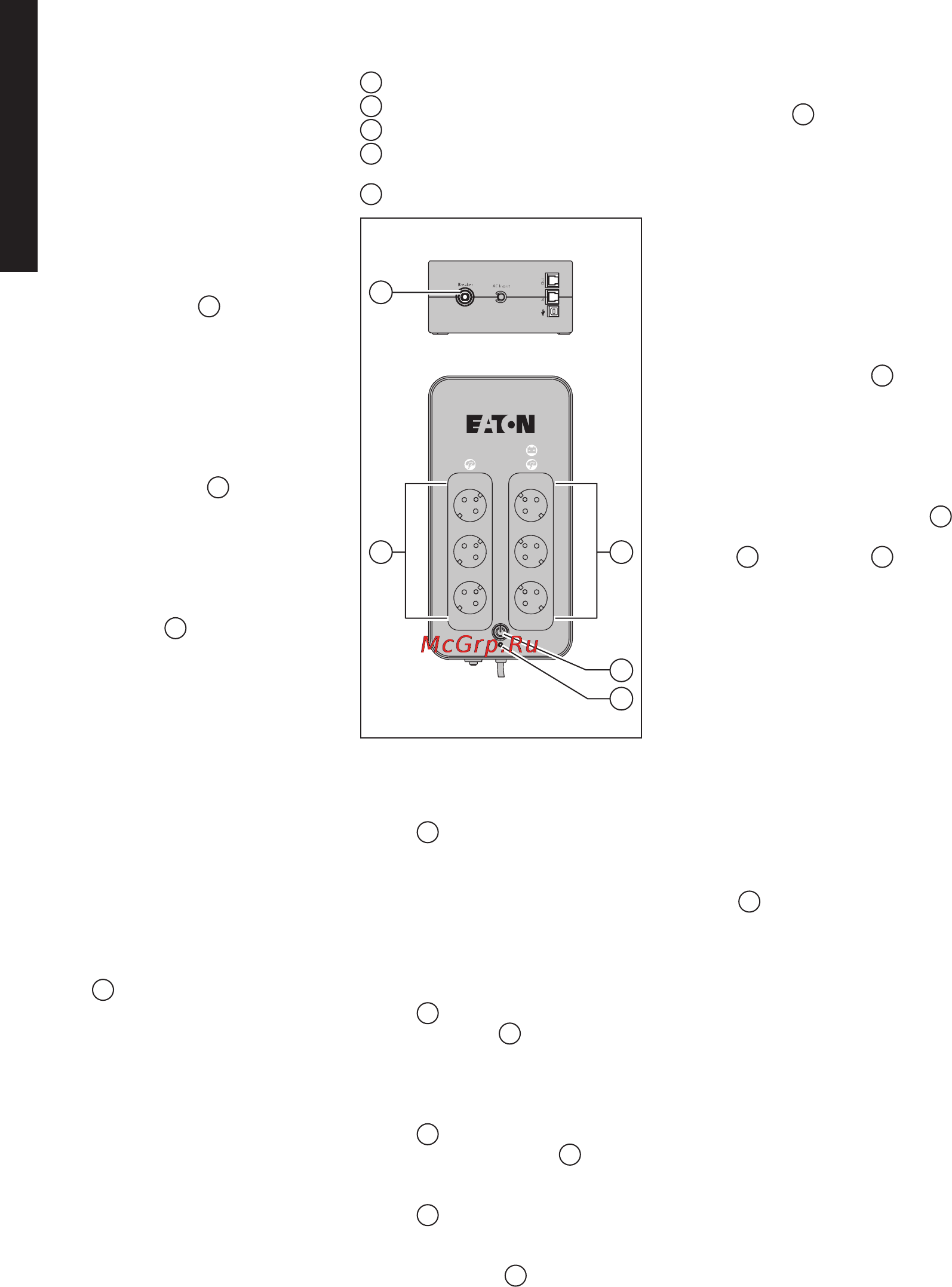

Operation
5
: Filtered outlets.
6
: Battery backup outlets.
7
: LED ON indicate a UPS fault.
8
: ON/OFF button for the battery
backup outlets.
9
: Protection circuit breaker.
