Grillo CL 75 [10/61] Identification and servicing

CL75/ Translation of the original instructions

IDENTIFICATION AND SERVICING

IDENTIFICATION

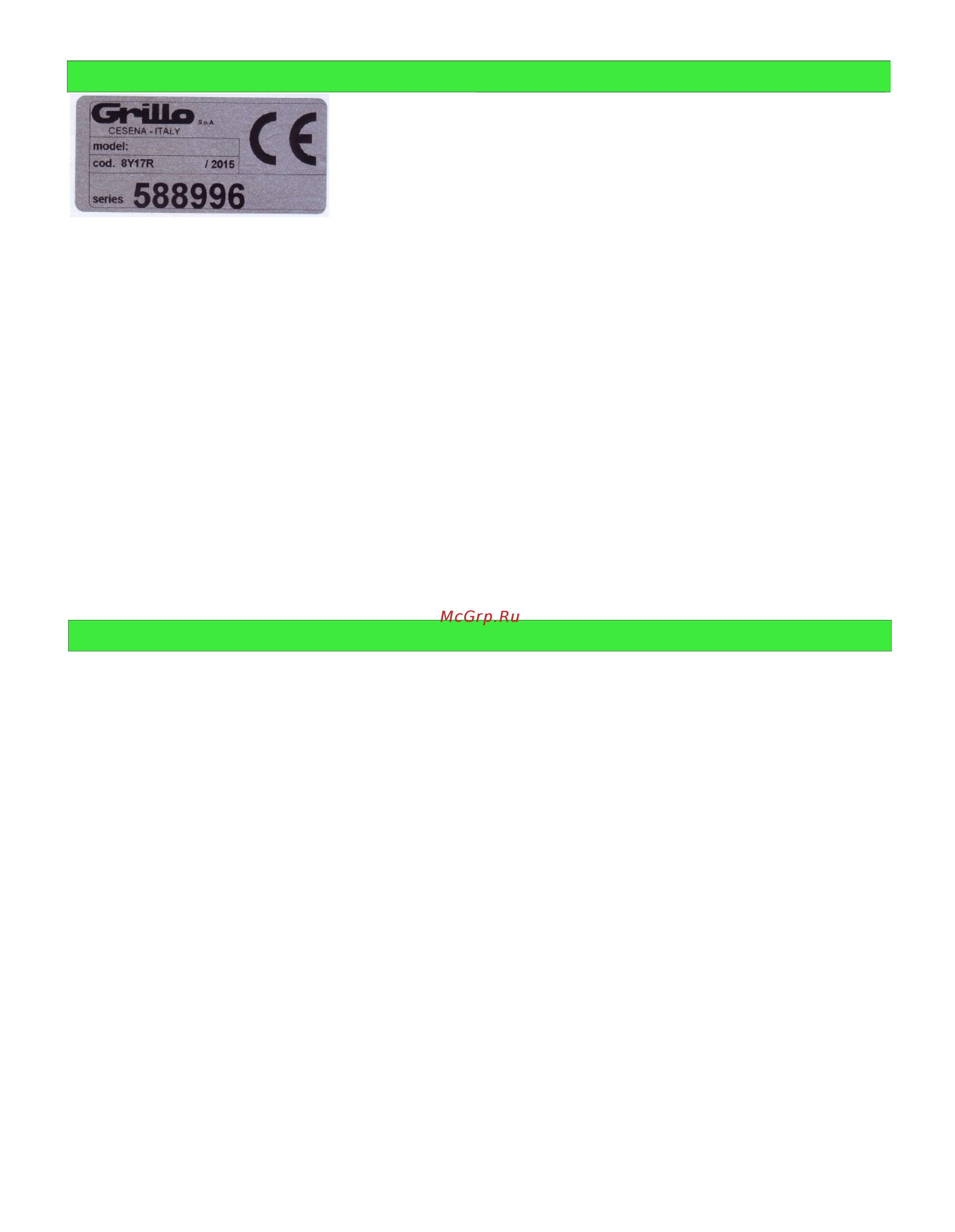

The Grillo CL75 has a label located at the engine

base and indicating the machine’s serial number.

TECHNICAL ASSISTANCE

This manual gives instructions for the use and basic maintenance of the mower by the user. For

operations that are not described in this manual, contact your Service Centre.

SPARE PARTS

Only use original spare parts. These are the only parts that ensure safety and interchangeability. Always

quote the machine’s serial number and the code number of the part to be replaced when ordering spare

parts. For engine parts, follow the indications given in the specific manual.

GUARANTEE

The guarantee is given in compliance with the current law. The dealer will have to give the client a copy

of the registration card of the machine, which they will print up from the Grillo website.

For the engine the guarantee of the relative manufacturers apply.

RECOMMENDED LIST OF SPARE PARTS TO BE KEPT IN STORE

2 x mowing blades

2 x blade screws

2 x blade screw nuts

TECHNICAL SPECIFICATIONS

ENGINE: - HONDA GXV340 OHV, 337 cc, 6,6 Kw, 8,9 HP(@ 3600 r.p.m.) one-cylinder 4-

stroke, petrol engine with oil pump.

STARTER: with recoil starter.

GEARBOX: hydrostatic transmission.

SPEED: from 0 to max. 6 km/h with continuous variation and reverse from 0 to max. 3,5 km/h.

HOURLY MOWING CAPACITY: 2500 m²/h.

CUTTING HEIGHT: from 50 mm to 150 mm with quick adjustment via lever.

CUTTING WIDTH:780 mm.

DRIVING TYRES: Tractor type 4.00-8, 4 ply.

DIFFERENTIAL: hand-operated differential lock.

FRONT TYRE: solid anti-puncture wheel 8×3.00/4.

CUTTING DECK: with rear discharge with opening front aperture.

PERIPHERAL BLADE SPEED: 74 m/sec.

CUTTING SYSTEM: single rotating blade with two anti-shock floating cutter tips.

HANDLEBAR: with vertical and side quick adjustment through the handlebar.

DIMENSIONS: Length – 2150 mm, Width – 845 mm, Height – 1050 mm.

WEIGHT: 140 kg.
