6. While holding the service button depressed, apply power
to the controller.
7. Continue depressing the service button and observe the
BSP LED begins to ash between red and green.
8. Release the service button after the ashing red/green
sequence lasts for 3 or more cycles.
9. When the BSP LED’s has stopped ashing between red
and green check if the BSP LED is either OFF or amber.
a. If OFF then repeat the download process again
after 90 seconds o time.
NOTE: Updating from version 8.xx BSP to 10.xx BSP
rmware will require repeating the download process
twice. During some software downloads, the
controller display may ash blue.
10. Cycle power to the controller after a solid amber BSP
LED is present.
11. From the Main Menu scroll down to About this AHU and
observe the APP version shows the same value as the
zip le originally downloaded (2506017xxx or 8xxx).
12. If APP version appears as shown, you will need to repeat
steps above until APP version displays ALL 10 digits
completely
Restoring Parameters to the Controller
1. Make sure the SD memory card is still within the
controller’s memory card slot.
2. Enter the Level 2 Password.
3. From the Main Menu select Service Menus then Save/
Restore Settings.
4. Set the LoadFromCard parameter to Yes, and press the
enter button.
a. The controller will reset twice but may perform
up to three resets if a communication module is
installed.
NOTE: On DPS units with ECM fans, the controller will ask to
conrm RPM value per the site’s air balance report or
design selection. Select YES once the proper RPM
is entered to have the controller automatically apply
changes and reset again.
b. Wait 10 seconds after the main menu appears
before proceeding
5. From the Main Menu scroll down to About this AHU and
observe the APP version has no square bracket “…]”at
the end. If a square bracket appears then the parameter
restore process failed and needs to be repeated.
6. Once the restore process is complete, remove the SD
memory card by momentarily pushing it in and releasing
to retract.
7. This completes the parameter restore from SD card
process
Manually Programming the Unit Conguration
1. If a Save and Restore was not performed then setup the
unit per the software conguration sticker installed on the
unit door.
a. Description of each congurator value is shown
under the “Unit Conguration Menu” list below.
b. OM 920 also contains the unit conguration menu.
2. Enter the Level 2 Password.
3. From the Main Menu select Unit Conguration.
4. Scroll through each option within the Unit Conguration
menu, changing any parameters not matching the
software conguration sticker on the door.
IM 919-4 • MICROTECH III CONTROLLER 10 www.DaikinApplied.com
Controller Application Software Upgrade Procedures
Содержание
- Table of contents 2
- Caution 3
- Component data 3
- General description 3
- Introduction 3
- Notice 3
- Warning 3
- Introduction 4
- Main control board mcb 4
- Keypad display 5
- Keypad display 6
- Microtech iii warranty statement 6
- About this ahu 7
- Ahu 01 1 5 7
- Edit mode 7
- Keypad display 7
- Navigation mode 7
- Passwords 7
- Remote keypad display option 7
- Controller application software upgrade procedures 8
- Preparing the sd card 8
- Controller application software upgrade procedures 9
- Downloading software to the controller 9
- Saving parameters to an sd card 9
- Controller application software upgrade procedures 10
- Manually programming the unit configuration 10
- Restoring parameters to the controller 10
- Are confirmed set the apply changes parameter to yes and press the enter button 11
- Controller application software upgrade procedures 11
- For an error as mentioned under the restore parameters to the controller section step 4 11
- If the controller did not reset then verify the app version 11
- Once all the values under the unit configuration menu 11
- Proceed with setting up individual setting to commission 11
- Table 3 unit configuration 11
- The controller will perform an automatic reset 11
- The unit as required for the application 11
- This completes the manual programming process 11
- Www daikinapplied com 11 im 919 4 microtech iii controller 11
- Controller application software upgrade procedures 12
- Im 919 4 microtech iii controller 12 www daikinapplied com 12
- Controller application software upgrade procedures 13
- Www daikinapplied com 13 im 919 4 microtech iii controller 13
- Controller application software upgrade procedures 14
- Im 919 4 microtech iii controller 14 www daikinapplied com 14
- Description of operation 15
- Table 4 nominal input resistance versus temperature 15
- Temperature sensors 15
- The microtech iii controller uses passive negative temperature coefficient ntc 10k ohm sensors these sensors vary their input resistance to the mcb as the temperature changes table 3 details the resistance versus temperature values for typical sensor wiring examples refer to figures 12 13 and 14 15
- Www daikinapplied com 15 im 919 4 microtech iii controller 15
- Description of operation 16
- Pressure sensors 16
- Troubleshooting pressure transducers 16
- Dc volts 17
- Description of operation 17
- Duct pressure sensor 17
- Figure 8 duct pressure sensor output 17
- Figure 9 duct pressure sensor 17
- Inches w c 17
- Input voltage 24 vdc 17
- Note the transducer output signal is 4 20ma however the 17
- Output 4 20 ma 17
- Signal entering the vfd is converted to a dc voltage signal via a 500 ohm resistor on the daikin md drives 17
- Www daikinapplied com 17 im 919 4 microtech iii controller 17
- Building pressure sensor 18
- Dc volts 18
- Description of operation 18
- Figure 10 building pressure sensor output 18
- Figure 11 building pressure sensor 18
- Im 919 4 microtech iii controller 18 www daikinapplied com 18
- Inches w c 18
- Input voltage 24 vdc 18
- Note the transducer output signal is 4 20ma however the 18
- Output 4 20 ma 18
- Signal entering the vfd is converted to a dc voltage signal via a 500 ohm resistor on the daikin md drives 18
- Description of operation 19
- Mamac panel mounted pressure transducer 19
- Specifications 19
- Warning 19
- Description of operation 20
- For additional information see pr 274 275 data sheet 20
- Installation 20
- Low pressure transducer 20
- Ordering information 20
- Specifications 20
- Caution this product contains a half wave rectifier power supply and must not be powered off transformers used to power other devices utilizing non isolated full wave rectifier power supplies 21
- Controller meter recorder 21
- Controller meter recorder ma output transducer only 21
- Description of operation 21
- Figure 12 continued mamac panel mounted pressure transducer dimensions 21
- Figures illustrate typical wiring diagrams for the ma output low pressure transducer 21
- Figures illustrate typical wiring diagrams for the vdc output low pressure transducer 21
- Low pressure transducer 21
- Ma output transducer only 12 40 vdc power supply 21
- Typical applications wiring diagrams 21
- Vdc output transducer only 12 35 vac transformer 21
- Vdc output transducer only 12 40 vdc power supply 21
- Wiring for ma low pressure transducers with an external dc power supply 21
- Wiring for ma output transducers where the controller or meter has an internal dc power supply 21
- Wiring for vdc low pressure transducers when applied with external ac supply 21
- Wiring for vdc low pressure transducers when applied with external dc supply 21
- Www daikinapplied com 21 im 919 4 microtech iii controller 21
- 0 25 wc 31 5 pa 22
- 0 5 wc 62 pa 22
- 0 wc 125 pa 22
- 1 5 wc 312 pa 22
- 10 default 22
- 15 wc 3750 pa 22
- 2 wc 625 pa 22
- 25 wc 156 5 pa 22
- 3 5 wc 937 pa 22
- 7 wc 1875 pa 22
- Bi directional 22
- Description of operation 22
- Low pressure transducer 22
- Ma output 22
- Output configuration switch 2 s2 22
- Output configuration switch 2 s2 output configuration switch 3 s3 22
- R1 r5 0 0 0 wc 25 pa 22
- R1 r5 0 5 wc 12 pa 22
- R2 r6 0 1 wc 250 pa default 22
- R2 r6 0 wc 125 pa default 22
- R3 r7 0 5 wc 1250 pa default 22
- R3 r7 2 wc 625 pa default 22
- R4 r8 0 30 wc 7500 pa default 22
- R4 r8 15 wc 3750 pa default 22
- Range configuration switch 1 s1 bi directional 22
- Range configuration switch 1 s1 uni directional 22
- Range configuration switch 1 s1 uni directional range configuration switch 1 s1 bi directional 22
- S3 s3 s3 s3 s3 s3 3 22
- Switch selections for low pressure transducers with ma outputs 22
- Switch selections for low pressure transducers with vdc outputs 22
- Uni directional default 22
- Vdc output 22
- Actuators 23
- Description of operation 23
- Smoke detectors 23
- Variable frequency drives vfd s 23
- Addressing ecm motors 24
- Addressing ecm motors procedure 24
- Description of operation 24
- Ecm electronically commutated motor fan motor 24
- Description of operation 25
- Restoring ecm adressing to default 25
- Controller inputs outputs 26
- Im 919 4 microtech iii controller 26 www daikinapplied com 26
- Table 5 rtu mps dps dph main control board i o 26
- Controller inputs outputs 27
- Table 5 continued rtu mps dps dph main control board i o 27
- Www daikinapplied com 27 im 919 4 microtech iii controller 27
- Controller inputs outputs 28
- Im 919 4 microtech iii controller 28 www daikinapplied com 28
- Table 6 scu main control board i o 28
- Controller inputs outputs 29
- Table 7 rtu expansion module a i o 29
- Table 8 scu expansion module a i o 29
- Www daikinapplied com 29 im 919 4 microtech iii controller 29
- Controller inputs outputs 30
- Im 919 4 microtech iii controller 30 www daikinapplied com 30
- Table 9 rtu mps dps dph expansion module b i o 30
- Controller inputs outputs 31
- Table 10 scu expansion module b i o 31
- Www daikinapplied com 31 im 919 4 microtech iii controller 31
- Controller inputs outputs 32
- Im 919 4 microtech iii controller 32 www daikinapplied com 32
- Table 11 rtu expansion module c i o 32
- Controller inputs outputs 33
- Table 12 scu expansion module c i o 33
- Www daikinapplied com 33 im 919 4 microtech iii controller 33
- Controller inputs outputs 34
- Im 919 4 microtech iii controller 34 www daikinapplied com 34
- Table 13 dps dph expansion module d i o 34
- Controller inputs outputs 35
- Table 14 rtu scu mps dps dph expansion module e i o 35
- Www daikinapplied com 35 im 919 4 microtech iii controller 35
- Cooling only units 36
- Fan operation 36
- Field output signals 36
- Field wiring 36
- Remote alarm output 36
- Units with modulating heat 36
- Vav box signal fan operation signal 36
- Vav output 36
- Field analog input signals 37
- Field wiring 37
- Outdoor damper 37
- Pump signal 37
- Staged cooling outputs 37
- Zone temperature sensor packages 37
- 50 55 60 65 70 75 80 85 38
- Field wiring 38
- Figure 16 microtech iii wallstat resistance vs setpoint 38
- Im 919 4 microtech iii controller 38 www daikinapplied com 38
- Resistance ohms 38
- Setpoint f 38
- Field wiring 39
- Tenant override timed 39
- Zone sensor w o remote set point adjustment 39
- Zone sensor with remote set point adjustment 39
- Field wiring 40
- Figure 19 rebel dps 3 to 15 ton microtech iii wiring 40
- Figure 20 rebel dps 16 to 28 ton microtech iii wiring 40
- Figure 21 maverick mps microtech iii wiring 40
- Figure 22 roofpak rps microtech iii wiring 40
- Im 919 4 microtech iii controller 40 www daikinapplied com 40
- The optional microtech iii room temperature humidity sensor package equipped with a set point adjustment potentiometer can be used with any applied rooftop microtech iii control configuration this sensor package also includes a tenant override button this zone sensor package must be field installed and field wired to the unit using twisted shielded cable 40
- Zone sensor with temperature humidity and remote set point adjustm ent 40
- External discharge air reset signal 41
- External outdoor air damper reset signal 41
- External time clock or tenant override 41
- Field digital input signals 41
- Field wiring 41
- Humidity sensors 41
- Co2 sensor wiring 42
- Emergency shutdown 42
- Field wiring 42
- Oa damper flow station with c 42
- Oa damper flow station with co2 reset setup 42
- Reset setup 42
- Sensor wiring 42
- Ebtron or field oa flow station wiring 43
- Field wiring 43
- Mps 17 50 tons dps expansion module b 43
- On maverick mps and rebel dps units the oa flow station needs to be wired to terminals x3 and m on expansion module b on rooftop rtu and self contained scu units the oa flow station needs to be wired to terminals x1 and m on expansion module e terminal m is common for all analog inputs make sure the polarity is correct on the field wiring to read a valid cfm value see table 14 on page 35 43
- Rtu scu mps 62 70 tons expansion module e 43
- See table 9 on page 30 43
- Www daikinapplied com 43 im 919 4 microtech iii controller 43
- Compressor staging 44
- Cooling multistage 44
- Guaranteed on and off times must be observed as well as a minimum of 10 seconds between starting more than one compressor 44
- If a circuit is disabled and then becomes re enabled no change occurs until a new stage up or down request occurs at this time the staging is re aligned to the normal condition for the new stage 44
- If both circuits are enabled the staging sequence is std 1 if compressor 1 has fewer hours than compressor 3 and the staging sequence is std 2 if compressor 1 does not have fewer hours than compressor 3 if circuit 1 is disabled compressor 2 is staged on and off to maintain the temperature setpoint if circuit 2 is disabled the staging sequence is set to std 1 if comp 1 has fewer hours than comp 3 and the staging sequence is set to std 2 if comp 1 does not have fewer hours than comp 3 if a circuit is disabled and then becomes re enabled no change occurs until a new stage up or down request occurs at this time the staging is re aligned to the normal condition for the new stage when both circuits are enabled the staging sequence is changed only when the number of stages is zero or maximum cooling stages 44
- Im 919 4 microtech iii controller 44 www daikinapplied com 44
- Note during this re alignment the cooling stage time 44
- Rps scu two small comps on circuit 1 one large comp on circuit 2 four stages rtu w 3 4 2 r22 or r407c or scu 44
- Rtu scu two unequal sized compressors two circuits three stages 2 2 3 44
- Table 15 rtu scu compressor circuit configurations 44
- Table 16 rtu standard staging 44
- Table 17 rps scu standard staging 44
- The following table is provided for reference indicating the compressors that are included in each circuit for all the rtu and scu compressor configurations rtu scu compressor circuit configurations 44
- With this configuration there are two fixed sequences used when both circuits are enabled 44
- With this configuration there is only one fixed sequence if both circuits are enabled the maximum cooling stages is set to 3 if circuit 2 is disabled the maximum cooling stages is set to 1 and compressor 1 is staged on and off to maintain the temperature setpoint if circuit 1 is disabled the maximum cooling stages is set to 2 and compressor 2 is staged on and off to maintain the temperature setpoint 44
- Cooling multistage 45
- Rps two small comps on circuit 2 one large comp on circuit 1 four stages 3 4 2 410a rtu 45
- Scu one small comp on circuit 1 one large comp on circuit 2 on large or small comp or circuit 3 four stages 3 3 4 410a scu 45
- Cooling multistage 46
- Rps scu equal number and size compressors on circuits 2 2 2 3 3 3 4 4 4 4 2 4 6 2 6 6 6 6 6 3 6 8 8 8 8 4 8 46
- Cooling multistage 47
- Table 21 circuit staging method 47
- Www daikinapplied com 47 im 919 4 microtech iii controller 47
- Cooling multistage 48
- Im 919 4 microtech iii controller 48 www daikinapplied com 48
- Table 21 continued circuit staging method 48
- Cooling multistage 49
- Fixed staging sequences are provided for mps units the compressor state will normally be as indicated in the standard sequences table below for each compressor stage the staging will be as indicated in the alternate sequences table below when the unit is configured for modulating hot gas reheat control and dehumidification operation is active when any circuit is disabled the compressors on that circuit are turned off immediately staging continues normally when a circuit is disabled 49
- Is disabled since this is the circuit equipped with the hot gas reheat 49
- Mps015 through mps050 2 3 or 4 compressors 2 circuits 49
- Note dehumidification operation is disabled when circuit 1 49
- Table 22 mps standard staging 49
- When the unit has staged up to the maximum stage with one circuit disabled and that circuit is enabled a 10 second delay between compressor starts is used and a cooling stage time must have elapsed since an individual compressor was stopped before it is restarted 49
- Www daikinapplied com 49 im 919 4 microtech iii controller 49
- Cooling multistage 50
- Im 919 4 microtech iii controller 50 www daikinapplied com 50
- Table 22 continued mps standard staging 50
- Cooling multistage 51
- Table 23 alternate sequences dehumidification 51
- Www daikinapplied com 51 im 919 4 microtech iii controller 51
- Cooling multistage 52
- Im 919 4 microtech iii controller 52 www daikinapplied com 52
- Table 23 continued alternate sequences dehumidification 52
- Communication module 53
- Network communications 53

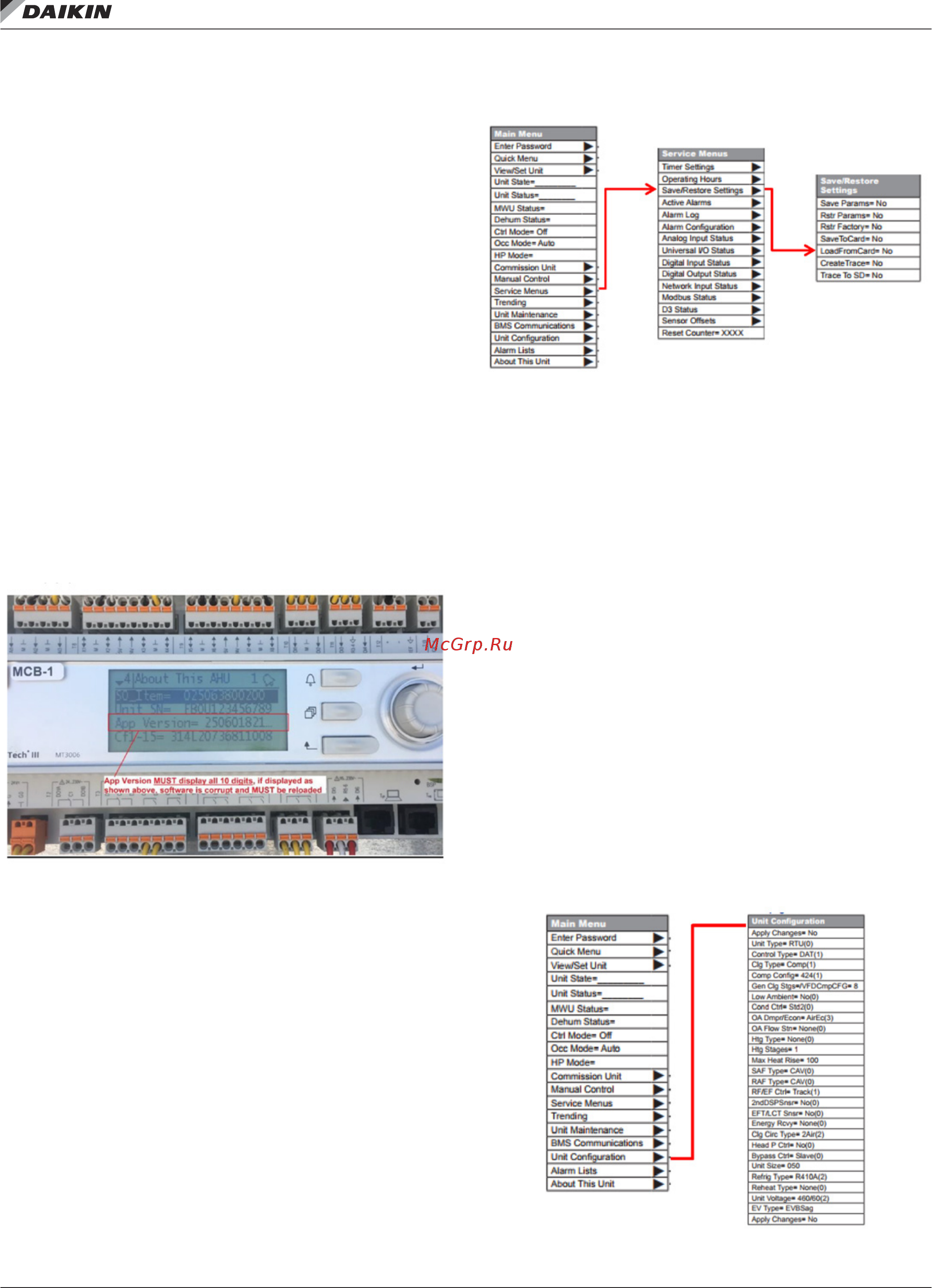

- After the main control board application software is loaded into the mcb it must be configured for the specific control application this consists of setting the value of 28 configuration variables within the mcb these variables define things such as the type of cooling number of compressors and cooling stages and the type of heat if all of these items are not set appropriately for the specific unit the unit will not function properly the correct settings for these parameters are defined for a given unit by the unit software configuration code 54
- Im 919 4 microtech iii controller 54 www daikinapplied com 54
- Table 24 unit configuration menu 54
- The software configuration code consists of a 28 character string of numbers and letters the code can be found on the unit software identification label located on the back side of the control panel door the code should match the code found in the controller under the main menu about this ahu cf1 15 first fifteen numbers or letters cf2 16 30 second set of fifteen numbers or letters table 24 lists the configuration code variables including the position within the code description of the parameter and the applicable settings for each the default values are shown in bold font the unit is configured at the factory however it may also be configured in the field by accessing the unit configuration menu once changes have been made to the unit configuration menu the apply changes flag must be changed from no to yes in order for the controller to recognize the changes setting the apply changes flag to yes will automatically reset the controller 54
- Unit configuration setup menu 54
- Table 24 continued unit configuration menu 55
- Unit configuration setup menu 55
- Www daikinapplied com 55 im 919 4 microtech iii controller 55
- Im 919 4 microtech iii controller 56 www daikinapplied com 56
- Table 24 continued unit configuration menu 56
- Unit configuration setup menu 56
- Typical electrical drawings roofpak 57
- Typical electrical drawings roofpak 58
- Typical electrical drawings roofpak 59
- Typical electrical drawings roofpak 60
- Typical electrical drawings roofpak 61
- Typical electrical drawings roofpak 62
- Typical electrical drawings roofpak 63
- Typical electrical drawings roofpak 64
- Typical electrical drawings roofpak 65
- Typical electrical drawings roofpak 66
- Typical electrical drawings roofpak 67
- Typical electrical drawings roofpak 68
- Typical electrical drawings roofpak 69
- Typical electrical drawings roofpak 70
- Typical electrical drawings roofpak 71
- Typical electrical drawings maverick 72
- Typical electrical drawings maverick 73
- Typical electrical drawings maverick 74
- Typical electrical drawings maverick 75
- Typical electrical drawings maverick 76
- Figure 33 rebel electrical diagram 77
- Typical electrical drawings rebel 77
- Www daikinapplied com 77 im 919 4 microtech iii controller 77
- Figure 33 continued rebel electrical diagram 78
- Im 919 4 microtech iii controller 78 www daikinapplied com 78
- Typical electrical drawings rebel 78
- Figure 33 continued rebel electrical diagram 79
- Typical electrical drawings rebel 79
- Www daikinapplied com 79 im 919 4 microtech iii controller 79
- Figure 33 continued rebel electrical diagram 80
- Im 919 4 microtech iii controller 80 www daikinapplied com 80
- Typical electrical drawings rebel 80
- Figure 33 continued rebel electrical diagram 81
- R cch1 81
- Typical electrical drawings rebel 81
- Www daikinapplied com 81 im 919 4 microtech iii controller 81
- Figure 33 continued rebel electrical diagram 82
- Im 919 4 microtech iii controller 82 www daikinapplied com 82
- Typical electrical drawings rebel 82
- Figure 33 continued rebel electrical diagram 83
- Typical electrical drawings rebel 83
- Www daikinapplied com 83 im 919 4 microtech iii controller 83
- Figure 33 continued rebel electrical diagram 84
- Im 919 4 microtech iii controller 84 www daikinapplied com 84
- Typical electrical drawings rebel 84
- Figure 33 continued rebel electrical diagram 85
- Typical electrical drawings rebel 85
- Www daikinapplied com 85 im 919 4 microtech iii controller 85
- Figure 33 continued rebel electrical diagram 86
- Im 919 4 microtech iii controller 86 www daikinapplied com 86
- Typical electrical drawings rebel 86
- Back of wall 87
- Expb expd 87
- Figure 33 continued rebel electrical diagram 87
- Labels shipped loose with panel 87
- N t3 t2 t1 l3 l2 l1 87
- Typical electrical drawings rebel 87
- Www daikinapplied com 87 im 919 4 microtech iii controller 87
- Typical electrical drawings rebel 88
- Typical electrical drawings rebel 89
- Typical electrical drawings rebel 90
- Typical electrical drawings rebel 91
- Figure 34 continued rebel new style electrical diagram 92
- Im 919 4 microtech iii controller 92 www daikinapplied com 92
- Typical electrical drawings rebel 92
- Typical electrical drawings self contained 93
- Typical electrical drawings self contained 94
- Typical electrical drawings self contained 95
- Typical electrical drawings self contained 96
- Typical electrical drawings self contained 97
- Typical electrical drawings self contained 98
- Parts list 99
- Table 25 parts list 99
- Www daikinapplied com 99 im 919 4 microtech iii controller 99
Похожие устройства
- Daikin EWWD370H-XS Инструкция по монтажу
- Daikin EWWD450H-XS Инструкция по монтажу
- Daikin EWWD530H-XS Инструкция по монтажу
- Daikin EWWD610H-XS Инструкция по монтажу
- Daikin EWWD750H-XS Инструкция по монтажу
- Daikin EWWD830H-XS Инструкция по монтажу
- Daikin EWWD930H-XS Инструкция по монтажу
- Daikin EWWD980H-XS Инструкция по монтажу
- Daikin EWWDC10H-XS Инструкция по монтажу
- Daikin EWWDC11H-XS Инструкция по монтажу
- Daikin EWWDC12H-XS Инструкция по монтажу
- Bernina Aurora 435 Руководство пользователя
- Daikin EWAQ009ACW1 Технические данные
- Daikin EWAQ011ACW1 Технические данные
- Daikin EWAQ013ACW1 Технические данные
- Daikin EWWP014KBW1N Инструкция по эксплуатации
- Daikin EWWP014KBW1N Инструкция по монтажу
- Daikin EWWP022KBW1N Инструкция по эксплуатации
- Daikin EWWP022KBW1N Инструкция по монтажу
- Daikin EWWP028KBW1N Инструкция по монтажу
Скачать
Случайные обсуждения
