Daikin Microtech III [20/100] Installation
![Daikin Microtech III [20/100] Installation](/views2/1656107/page20/bg14.png)

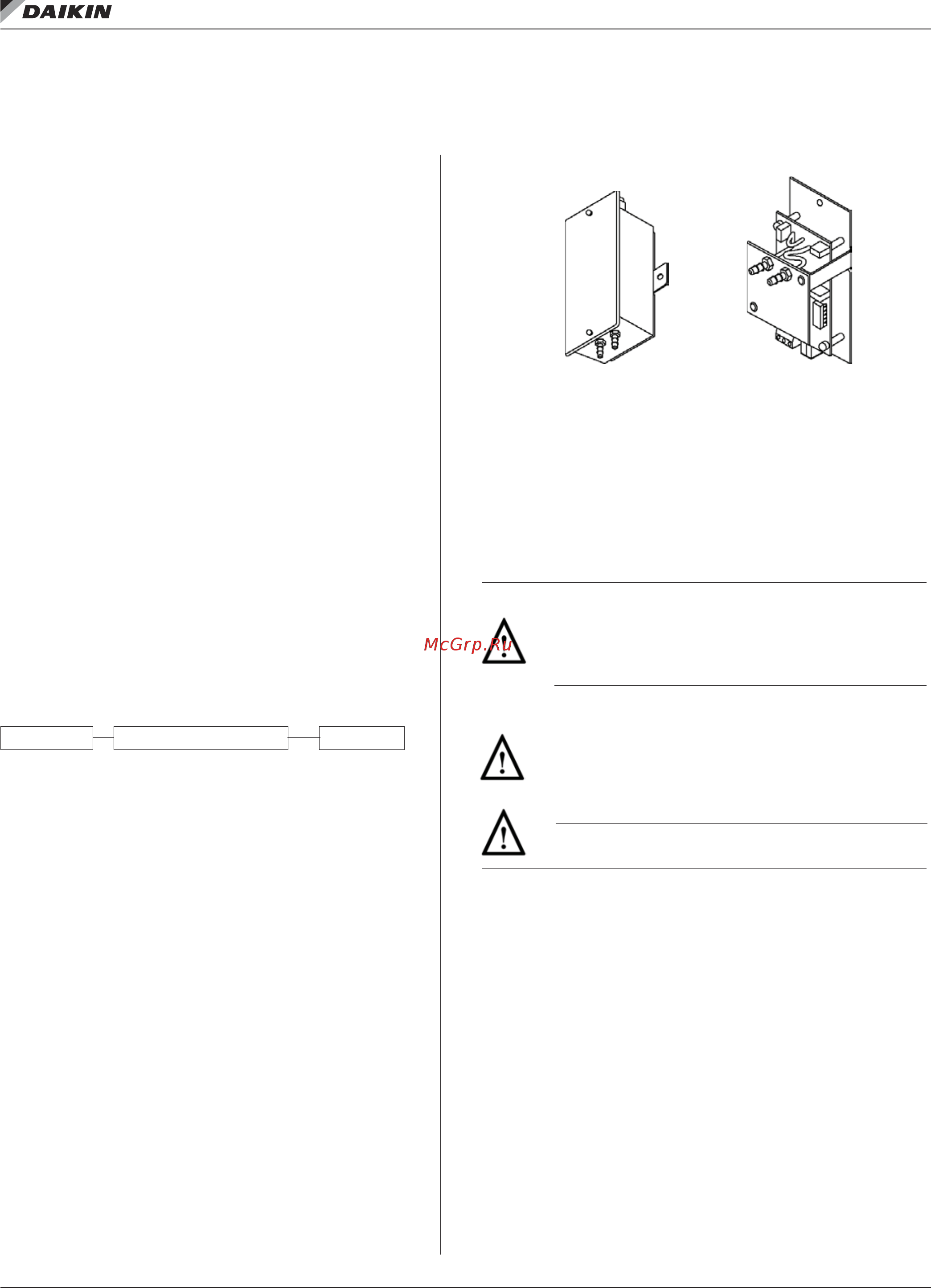

Figure 12: Mamac Panel-Mounted Pressure Transducer Dimensions
A
ccuracy*: ±1% FS
Overpressure
: 10 PSID
S
upply Voltage: 12-40 VDC
12-35
VAC (VDC output units only)
S
upply Current: VDC Units - 10 mA max.
mA
Units - 20 mA max.
Enclosure:
18 Ga C. R. Steel NEMA 4 (IP-65) or Panel Mount Chassis
Finish:
Baked on enamel-PMS2GR88B
Compensated
Temp Range: 25°F-150°F (-4°C-65°C)
T.
C. Error: ±0.0125%/°F (.02%/°C)
Operating
Temp Range: 0°F-175°F (-18°C-80°C)
Media Compatibility:
Clean dry air or any inert gas
Environmental:
10-90%RH Non-Condensing
Te
rmination: Unpluggable screw terminal block
Wire Size
: 12 Ga max.
Load Impedance:
1.6K ohms max. at 40 VDC (mA output units)
1K ohms min. (VDC output units)
We
ight:Enclosure - 1.0 lbs. (.45 kg)
Panel Mount - 0.5 lbs. (.25 kg)
*Includes non-linearit
y, hysteresis and non-repeatability
PACKAGING RANGEOUTPUT
SPECIFICA
TIONS
Inspection - Inspect the package for damage. If damaged, notify the
appropriate carrier immediately. If undamaged, open the package and
inspect the device for obvious damage. Return damaged products.
Requirements
Mounting
27
4 (enclosure)
27
5 (panel mount)
R1
("wc)
R2
("wc)
R3
("wc)
R4
("wc)
R5
(pa)
R6
(pa)
R7
(pa)
R8
(pa)
0 TO 0.10 / -0.05 TO +0.05
0 TO 1.0 / 0 TO 0.5 / 0 TO 0.25 /
-0.5 TO +0.5 / -0.25 TO +0.25 /
-0.125 TO +0.125
0 TO 5.0 / 0 TO 2.5 / 0 TO 1.25 /
-2.5 TO +2.5 / -1.25 TO +1.25 /
-0.625 TO +0.625
0 TO 30 / 0 TO 15 / 0 TO 7.5 /
-15.0 TO +15.0 / -7.5 TO +7.5 /
-3.75 TO + 3.75
0 TO 25 / -12.5 TO +12.5
0 TO 250 / 0 TO 125 / 0 TO 62.5 /
-125 TO +125 / -62.5 TO +62.5 /
-31.25 TO +31.25
0 TO 1250 / 0 TO 625 / 0 TO 312.5 /
-625 TO +625 / -312.5 TO +312.5 /
-156.25 TO +156.25
0 TO 7500 / 0 TO 3750 / 0 TO 1875 /
-3750 TO +3750 / -1875 TO +1875 /
-937.5 TO +937.5
(4-20 mA
2-wire)
(0-5 VDC or
0-10 VDC field
selectable)
mA
VDC
For
Additional Information See PR-274/275 Data Sheet
INST
ALLATION
LOW PRESSURE TRANSDUCER
Warning:
• Disconnect power supply before installation to prevent electrical
shock and equipment damage.
• Make all connections in accordance with the job wiring diagram
and in accordance with national and local electrical codes. Use
copper conductors only.
Caution:
• Use electrostatic discharge precautions (e.g., use of wrist straps)
during installation and wiring to prevent equipment damage.
• Avoid locations where severe shock or vibration, excessive
moisture or corrosive fumes are present. NEMA Type 4 housings
are intended for outdoor use primarily to provide a degree of
protection against wind-blown dust, rain, and hose-directed water.
• Do not exceed ratings of the device.
The PR-274/275 must be mounted as indicated by the arrows on
the enclosure. Refer to Figure 7 for mounting dimensions.
1. Remove the transducer cover using a Phillips head
screwdriver.
2. Select the mounting location.
3. Mount transducer on a vertical surface with two #8
self-tapping screws (not provided).
4. Transducer must be mounted above the pressure pick-up or a
J-Loop must be incorporated in the tubing to function as a
condensate trap.
5. Pull wires through bottom of enclosure and make
necessary connections.
6. Replace cover and make pneumatic connections.
• Tools (not provided)
- Digital Volt-ohm Meter (DVM)
- Appropriate screwdriver for mounting screws
- Appropriate drill and drill bit for mounting screws
• Appropriate accessories
•
Two #8 self-tapping mounting screws (not provided)
• Training:
Installer must be a qualified, experienced technician
Wiring
Use maximum 12 AWG wire for wiring terminals. Use flexible 1/4"
O.D. 5/32" I.D. tubing for the high and low pressure connections.
Refer to Figures 1, 2, 3, & 4 for wiring information and Figures 5 &
6 for switch designations.
(Wiring Instructions continued on pages 2 and 3.)
ORDERING INFORMA
TION
Enclosure Mount
Transducer
Panel Mount
Transducer
Caution:
• Condensate or moisture must not enter pressure sensor ports
IM 919-4 • MICROTECH III CONTROLLER 20 www.DaikinApplied.com
