Actuators
The actuators are controlled by an analog signal from the
unit controller. Damper actuators utilize a 0-10VDC analog
signal while modulating heating/cooling valve actuators utilize
a 2-10VDC signal. Spring-return actuators are used for the
0 - 30% outdoor air and economizer dampers. The mixing
dampers are normally closed to the outside air.

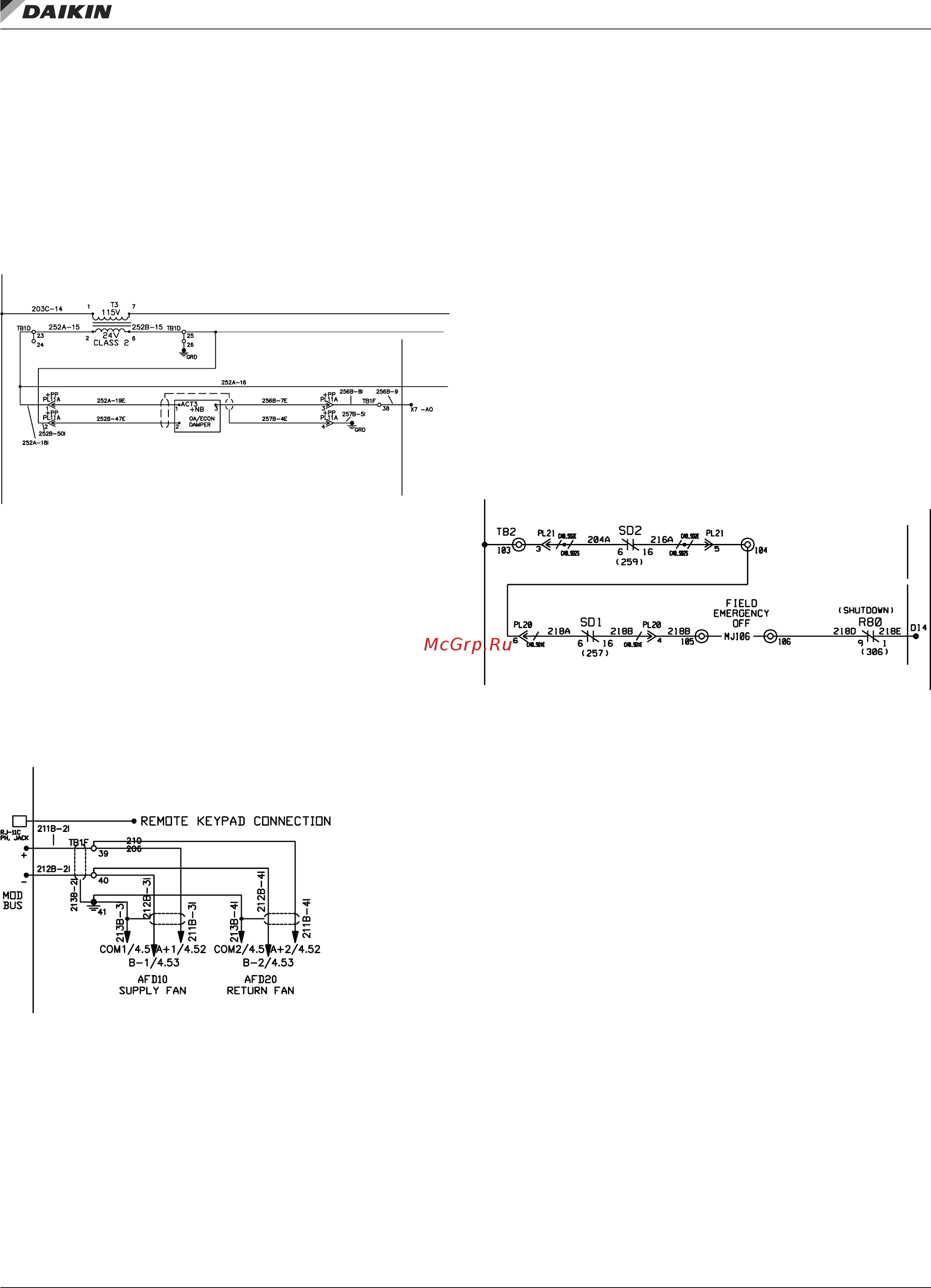

Figure 13: Actuator Wiring Diagram
Variable Frequency Drives (VFD’s)
When controlling speed commands of supply, return or exhaust
fans, energy recovery wheels or condenser fan variable
frequency drives, the MicroTech III controller uses an internal
ModBus communications channel for control and monitoring
of the Variable Frequency Drives . When confronted with
ModBuss issues remember polarity is primary. Check the
MTIII menu under “Service Menus/ModBus status” all the fans
should read “OK”
Figure 14: VFD Wiring Diagram
Smoke Detectors
Field installed as well as factory installed smoke detectors
in the supply and return duct work should be wired into the
circuit that feeds 24VAC to Digital input 4. While the circuit is
complete and power is routed to DI4 gives the controller an “all
clear” signal and normal operation is available. If the circuit
is opened by one of the smoke detectors dry set of contacts
and the 24 VAC is dropped from DI4 the controller initiates
an “emergency shut down” The shutdown must be manually
cleared once the contacts have closed again. To change to
automatic re-start see the Alarm Conguration menu, and
change the default from “Man Clr” to “Auto re-start” For
connection points please refer to the electrical drawings that
came with the unit.
NOTE: Figure 15 is a typical wiring scheme for smoke
detector wiring; exact terminal numbers should be
veried with the electrical diagram that was supplied
with the unit.
Figure 15: Smoke Detector Wiring Diagram
Description of Operation
www.DaikinApplied.com 23 IM 919-4 • MICROTECH III CONTROLLER
