Procedure for Software Upload/Download ESIE07-05
3–14 Part 3 – Troubleshooting
3
1
3
4
5
17
18

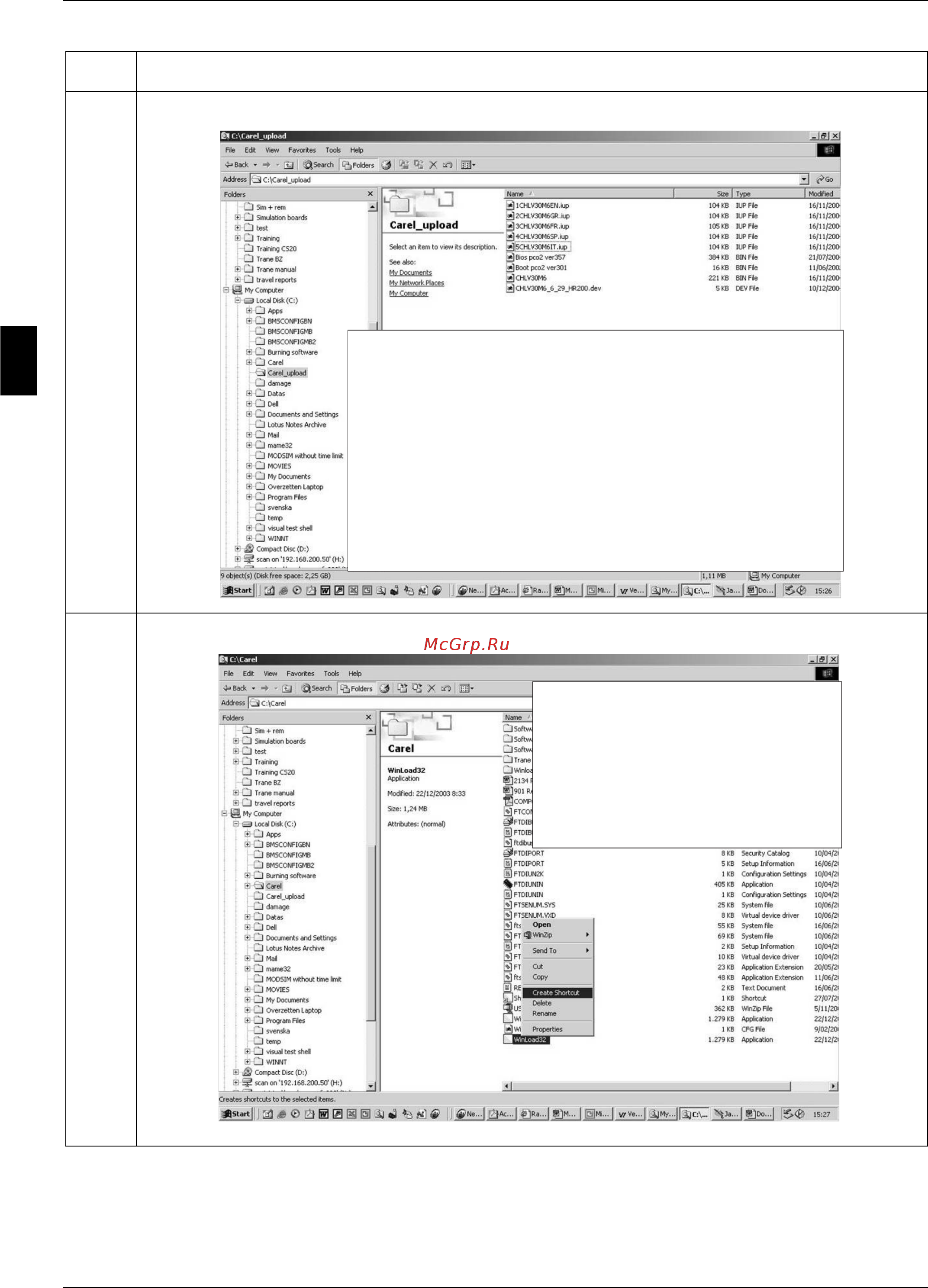

Step Action
All program files are placed into the upload folder now
Remark:
• No old or other files may be placed into this (only program-files)
• If you copy the files from a CD to this folder then the property of
this files is “read only” disable read only
Select all files
Right click and select properties
Disable “read only”
Press ok
1. Go to the Carel folder
2. Right click winload32.exe
3. Select “Create Shortcut”
Shortcut to Winload32 will be made
1
2
3
