ESIE07-05 Piping Layout
Part 1 – System Outline 1–21
3
1
4
5

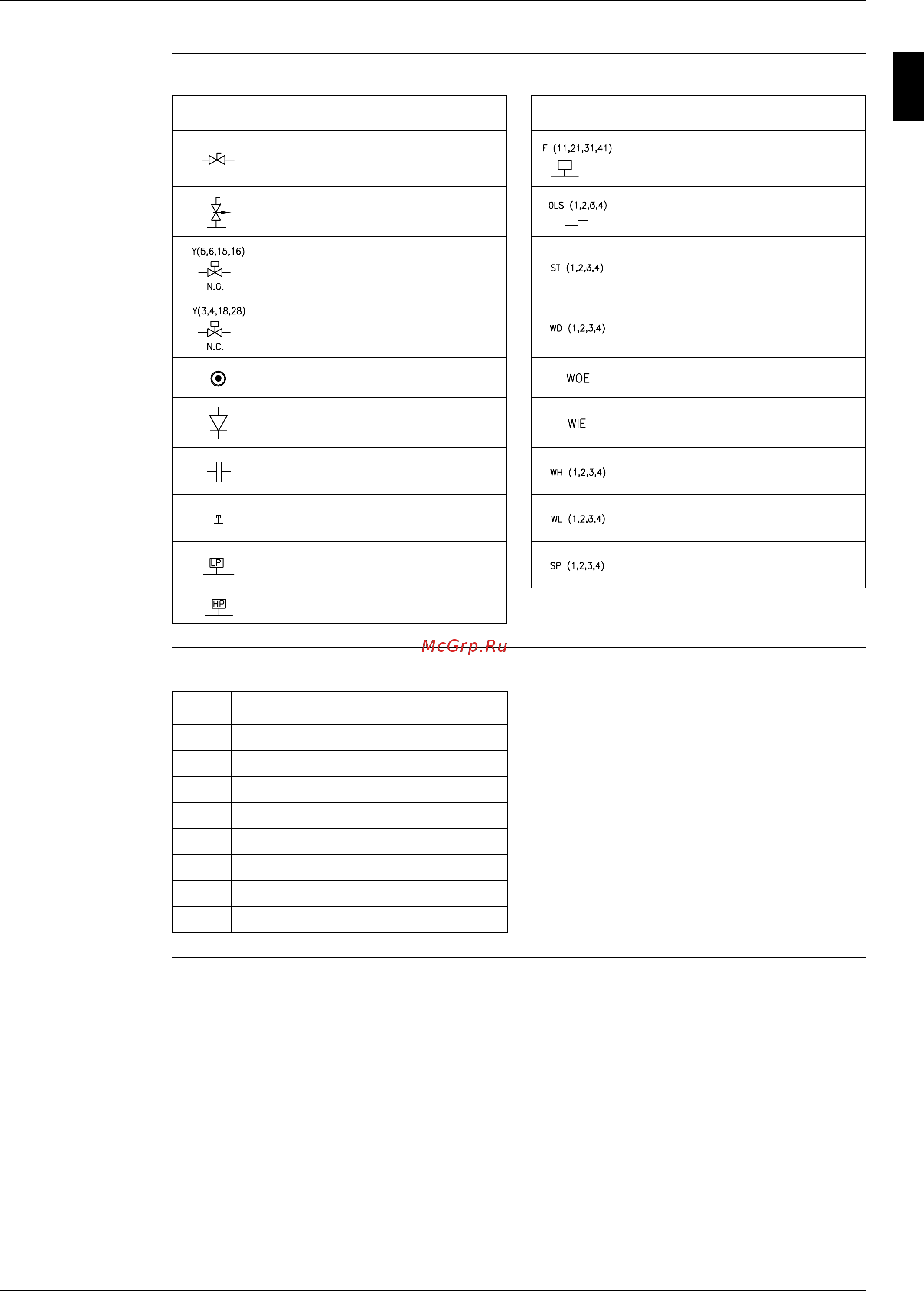

Symbols The table below describes the symbols.
Components
Symbol Description Symbol Description
2 Way shut-off valve Oil diff. press. switch
Safety valve Oil level switch
Liquid injection solenoid valve Suction temperature sensor
Oil injection solenoid valve Delivery temperature sensor
Sight glass Leaving water temperature
Check valve Entering water temperature
Calibrated orifice
High pressure transducer
4-20 mA 0-30 bar
1/4” Sae flare valve
Low pressure transducer
4-20 mA 0-30 bar
Low pressure switch
Low pressure transducer
4-20 mA -0.5/+7.5 bar
High pressure switch
No. Component
1 Oil separator
2 Evaporator heater (R5)
3 Electronic expansion valve
4 Oil filter
5 Filter drier
6 Liquid-valve
7 Termal sensor (not supplied)
8 Pressure gauge (ispesl only)
