Overhaul Instructions Si50-402
18 Semi-Hermetic Single Screw Compressor Version IV
(2) Remove the oil filter using the special tool, and clean. (ZH3F only)
After cleaning, dry thoroughly.
If the filter is damaged or torn, replace.

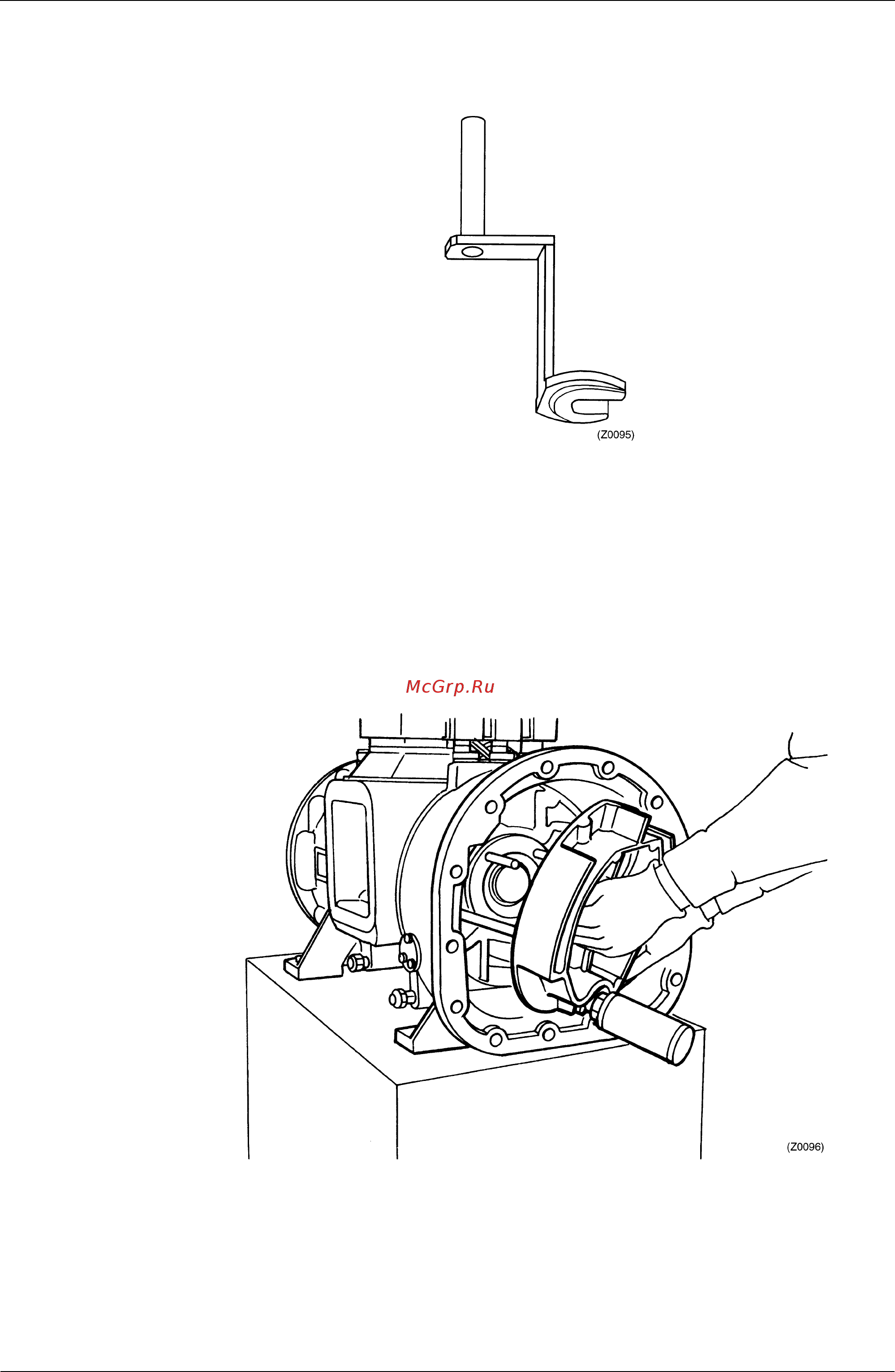

Fig. 4-14 Oil filter removing tool
(3) Remove the mounting bolts, and remove the cylinder cover.
(4) Pull out the piston.
(5) Remove the mounting bolts, and remove the main bearing holder fixing plate.
Use guide bolts when removing the fixing plate, since it is heavy.
Do not lose screw adjusting shims (1) located inside.
(6) Remove the oil filter from the fixing plate, and clean. (except for ZH3F)
After cleaning, dry thoroughly.
If the filter is damaged or torn, replace.
(7) Remove the slide valve from the casing.
Fig. 4-15 Removing main bearing holder fixing plate
