Daikin ZH5LMGU [44/58] Jig 2 2 bearing removing jig set
![Daikin ZH5WLGV [44/58] Jig 2 2 bearing removing jig set](/views2/1663037/page44/bg2c.png)
Si50-402 Required Tools
Semi-Hermetic Single Screw Compressor Version IV 43

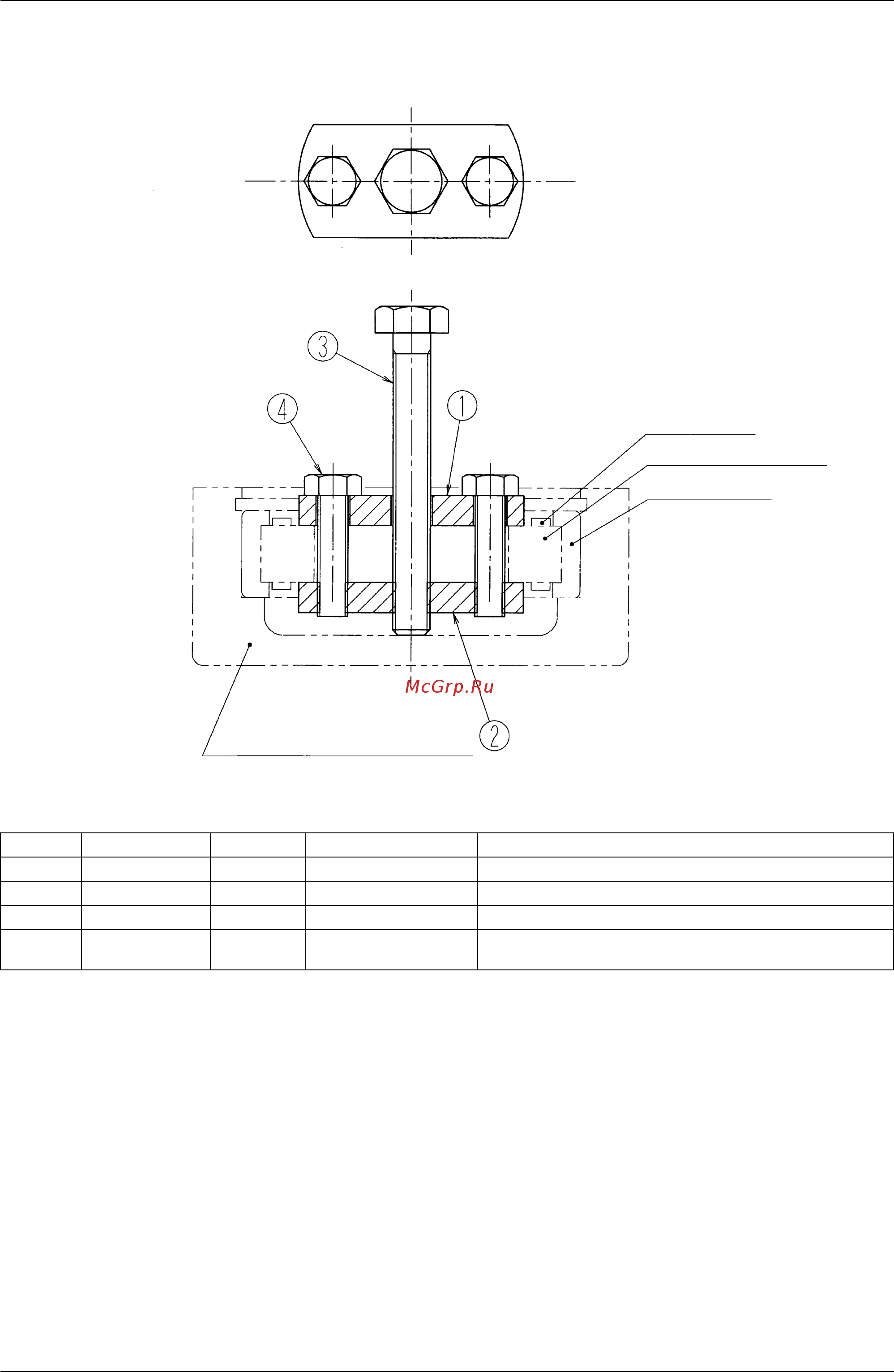

Jig (2)-2 [Bearing Removing Jig Set]
Parts No. Name Quantity Material Remarks
Guide plate 1 SS400 or SM400A See next page.
Batten 1 SS400 or SM400A See next page.
Removing bolt 1 S45C See next page.
Hexagon bolt 2 S45C
JIS B1180 hexagon head bolt with nominal diameter body
A M6x30-5.6
(Z0118)
Holding device
Cylindrical roller bearing
Bearing outer ring
Suction end cover housing section
